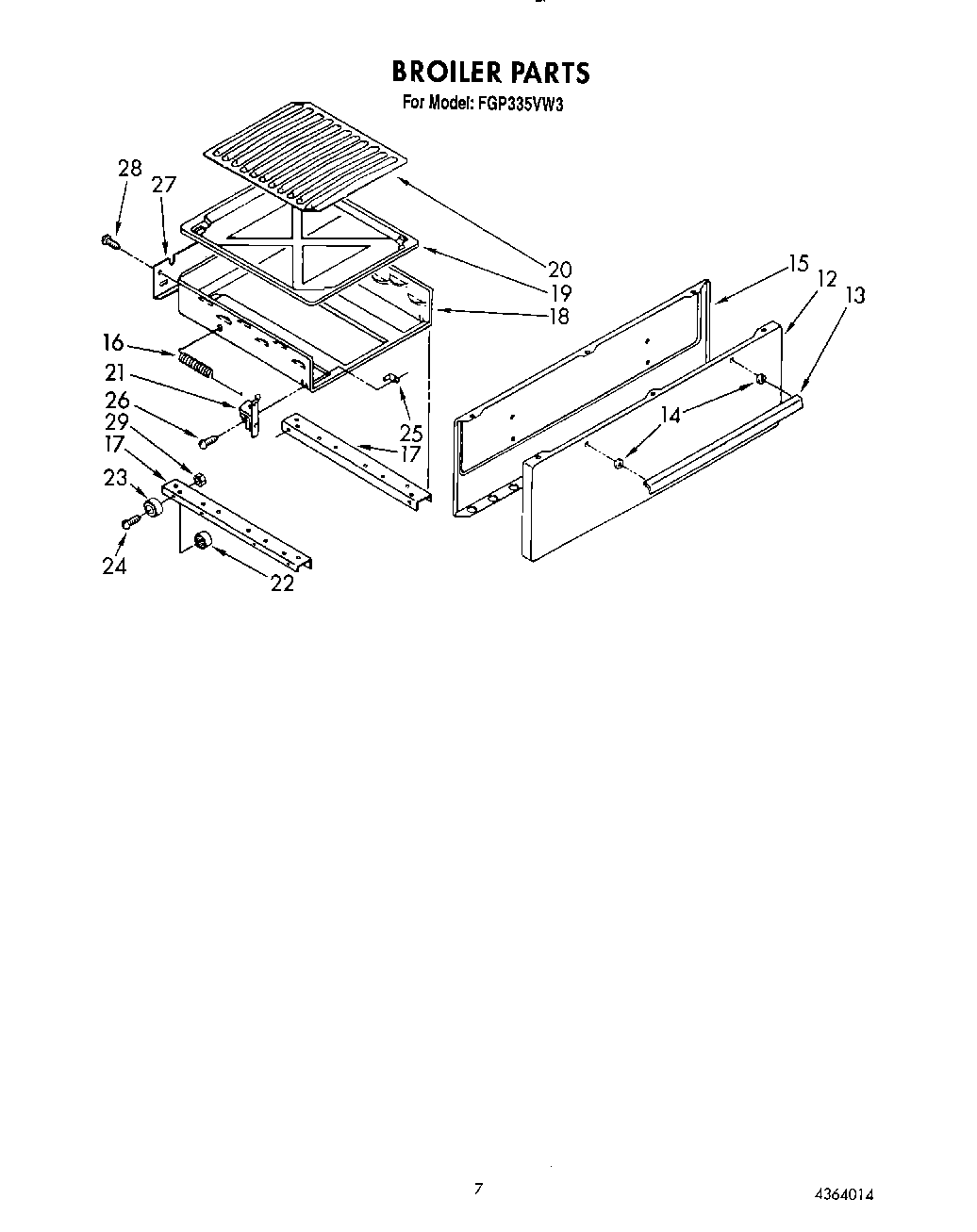

FGP335VW3 07 – BROILER

Products

Position	Product
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
13	Screw
13	Handle
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door (L.H.)
21	Hinge, Door (R.H.)
21	W10080180 Whirlpool Nut
21	WP308685 Whirlpool Microwave Screw
22	Bumper, Nylon (4)
23	Roller (2)
24	Roller Pin (2)
25	Plate (2)
26	Screw (2)
27	Backer, Carriage
28	Screws (3)
