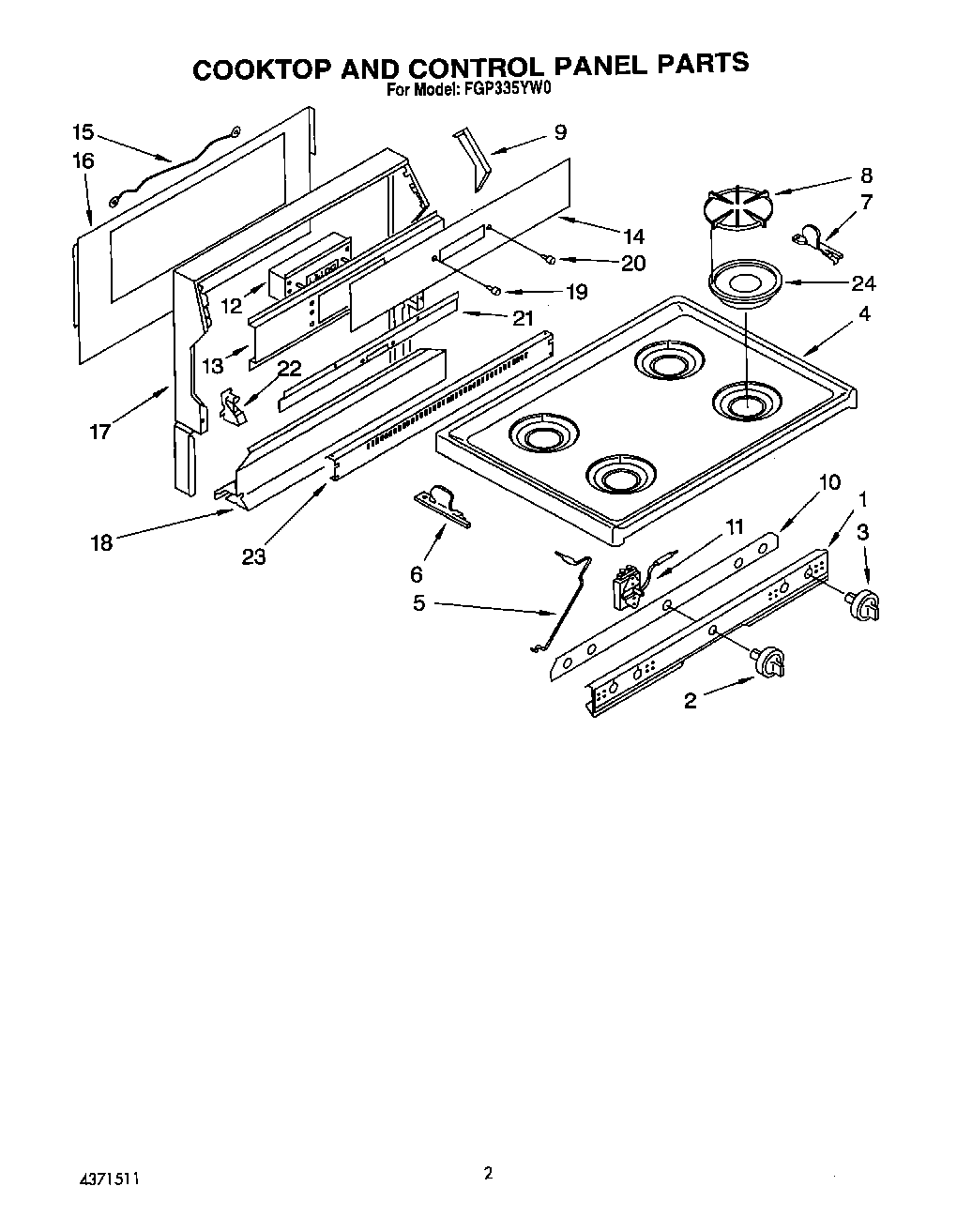

FGP335YL0 02 – COOKTOP AND CONTROL PANEL, LIT/OPTI

Products

PositionProduct
Guide, Use & Care
Installation, Instructions
List, Repair Parts
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (White)
4Top, Main (Almond)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate, Burner (4)
9Cap, End (L.H.)
9Cap, End (R.H.)
10Cover, Manifold
11Thermostat, Oven
12Clock
13Bracket, Timer
14Panel, Control
15Cable, Anti-Tip
16Shield, Rear Wall
17Trim, Wrapper
18Trim, Splasher (White)
19Button, Hour/Minute (2)
20Button, Clock/Timer
21Retainer, Timer
22Brace, Backguard
23Trim, Vent
24Pan, Burner (4)
