FGP335YW1 01 – SECTION

FGP335YW1 01 – SECTION

Written by

in

FGP335YW1 01 – SECTION

Products

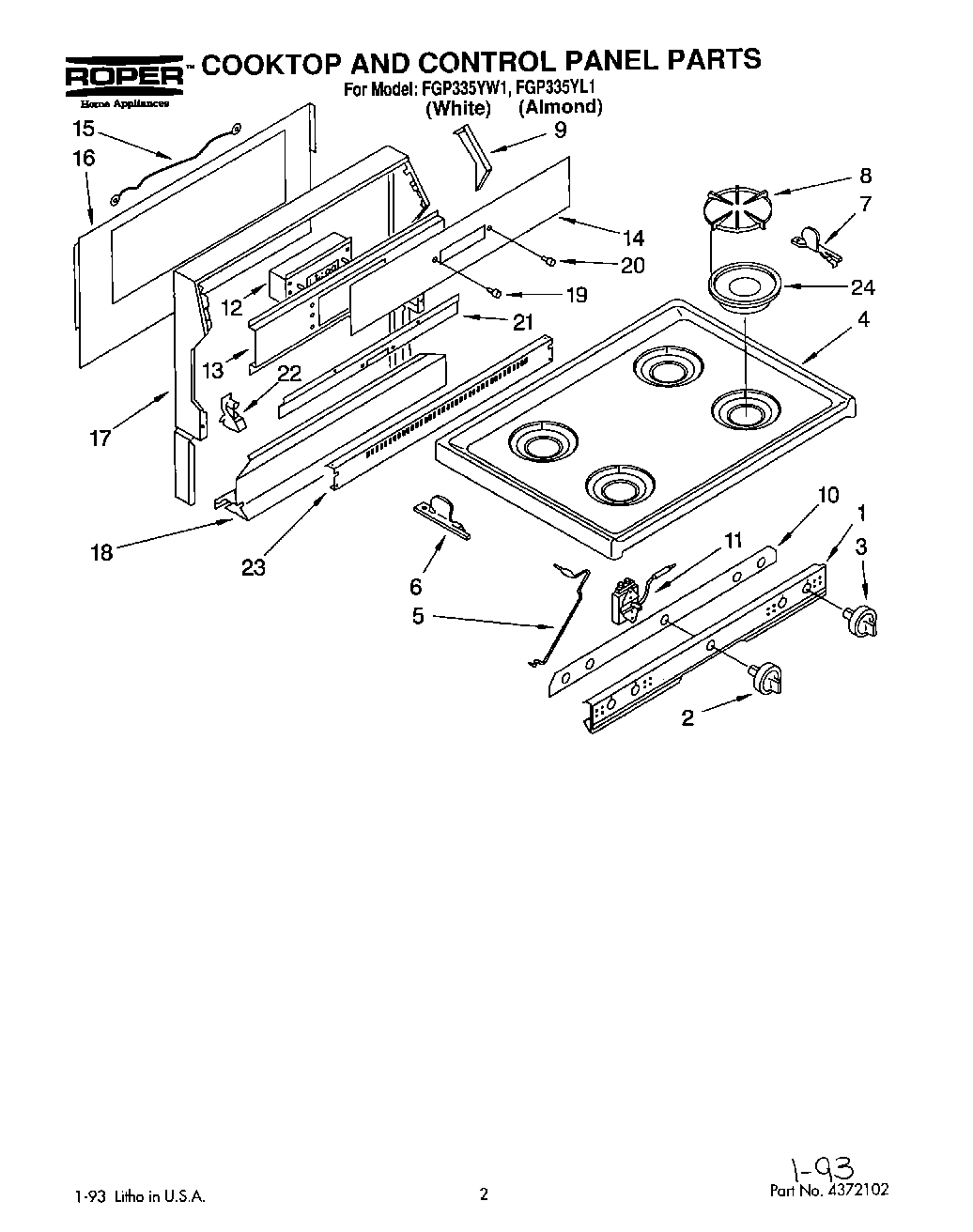

Position	Product
	Guide, Use & Care
	List, Repair Parts
	Installation, Instructions
1	Panel, Control
2	Knob, Thermostat
3	Knob, Burner (4)
4	Top, Main (Almond)
4	Top, Main (White)
5	Rod, Support Top
6	Bracket, Hinge LH
7	Bracket, Hinge RH
8	Grate (4)
9	Cap, End (R.H.)
9	Cap, End (L.H.)
10	Cover, Manifold
11	Thermostat, Oven
12	Clock
13	Bracket, Timer
14	Panel, Control
15	Cable, Anti-Tip
16	Shield, Rear Wall
17	Trim, Wrapper
18	Trim, Splasher (White)
19	Button, Hour/Minute (2)
20	Button, Clock/Timer
21	Retainer, Timer
22	Brace, Backguard
23	Trim, Vent
24	Pan, Burner (4)
