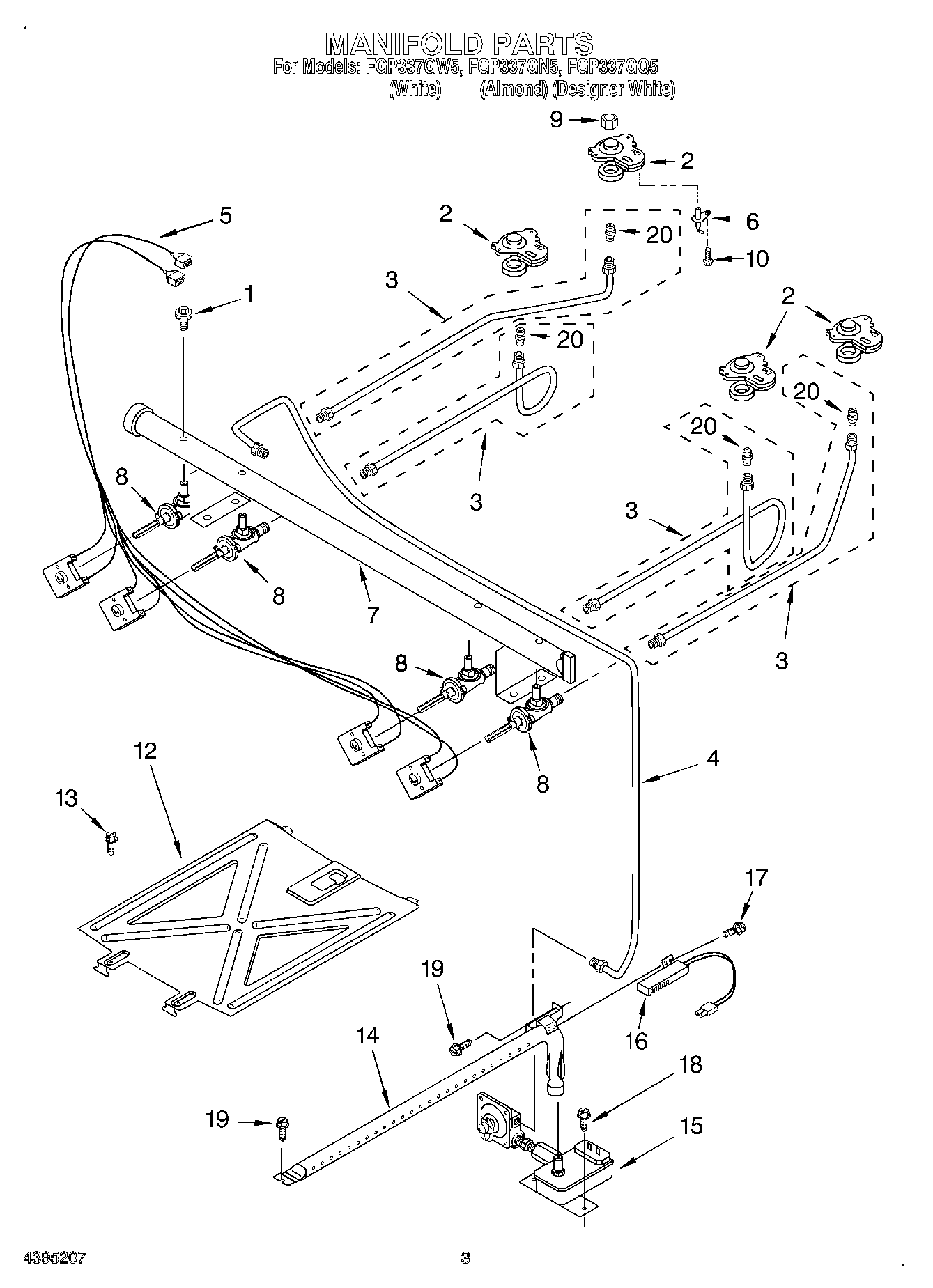

FGP337GN5 03 – MANIFOLD

FGP337GN5 03 – MANIFOLD

Written by

in

FGP337GN5 03 – MANIFOLD

Products

PositionProduct
1WP8273096 Whirlpool Screw
2Burner Base (Small (1))
2WP8273700 Whirlpool Base Burner
3Tubing, Burner W/Orifice (Right Front)
3Tubing, Burner W/Orifice (Right Rear)
3Tubing, Burner W/Orifice (Left Rear)
3Tubing, Burner W/Orifice (Left Front)
4Tubing (Manifold to Regulator)
5Harness, Igniter (Incl. Switches)
6WP8523793 Whirlpool Oven Surface Igniter
7Pipe, Manifold
8Valve
9Nut (4)
10WP8273062 Whirlpool Screw
12Spreader, Flame (Oven)
14Burner, Bake
15Valve, Gas Combo
16WP3186491 Whirlpool Oven Igniter
17W11684507 Whirlpool Screw
18WP3196557 Whirlpool Screw
19SCREW
20WP8273067 Whirlpool Orifice
20WP8273066 Whirlpool Orifice
20WP8273065 Whirlpool Orifice
20Spuds, LP Gas (Kit of 4)
