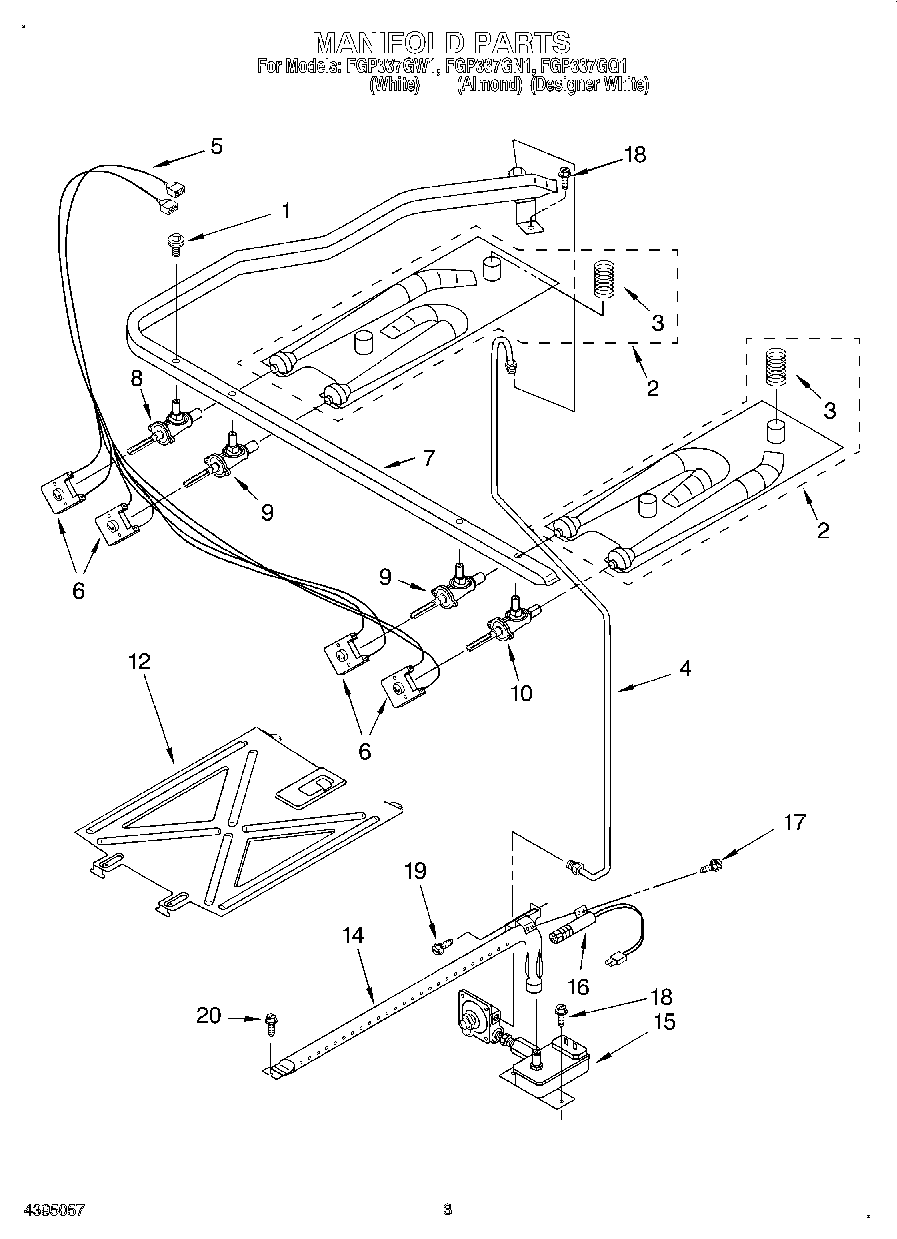

FGP337GQ1 03 – MANIFOLD

Products

Position	Product
1	WP3186217 Whirlpool Screw
2	Plate, Venturi (Includes No. 3) (Left Hand)
2	Plate, Venturi (Includes No. 3) (Right Hand)
3	Spring, Seal (4)
4	Tubing (Manifold to Regulator)
5	Harness, Igniter
6	Switch, Spark
7	Pipe, Manifold
8	Valve, 7,500 BTU (LR)
9	Valve, 9500 BTU (LF)
10	Valve, 6,500 BTU (RR)
12	Spreader, Flame (Oven)
14	Burner, Oven
15	Valve, Gas Combo
16	Igniter, Bake/Broil
17	W11684507 Whirlpool Screw
19	SCREW
20	3196265 Whirlpool Oven Screw
20	WPL 3196473
20	Spuds, Natural Gas (Kit of 4)
