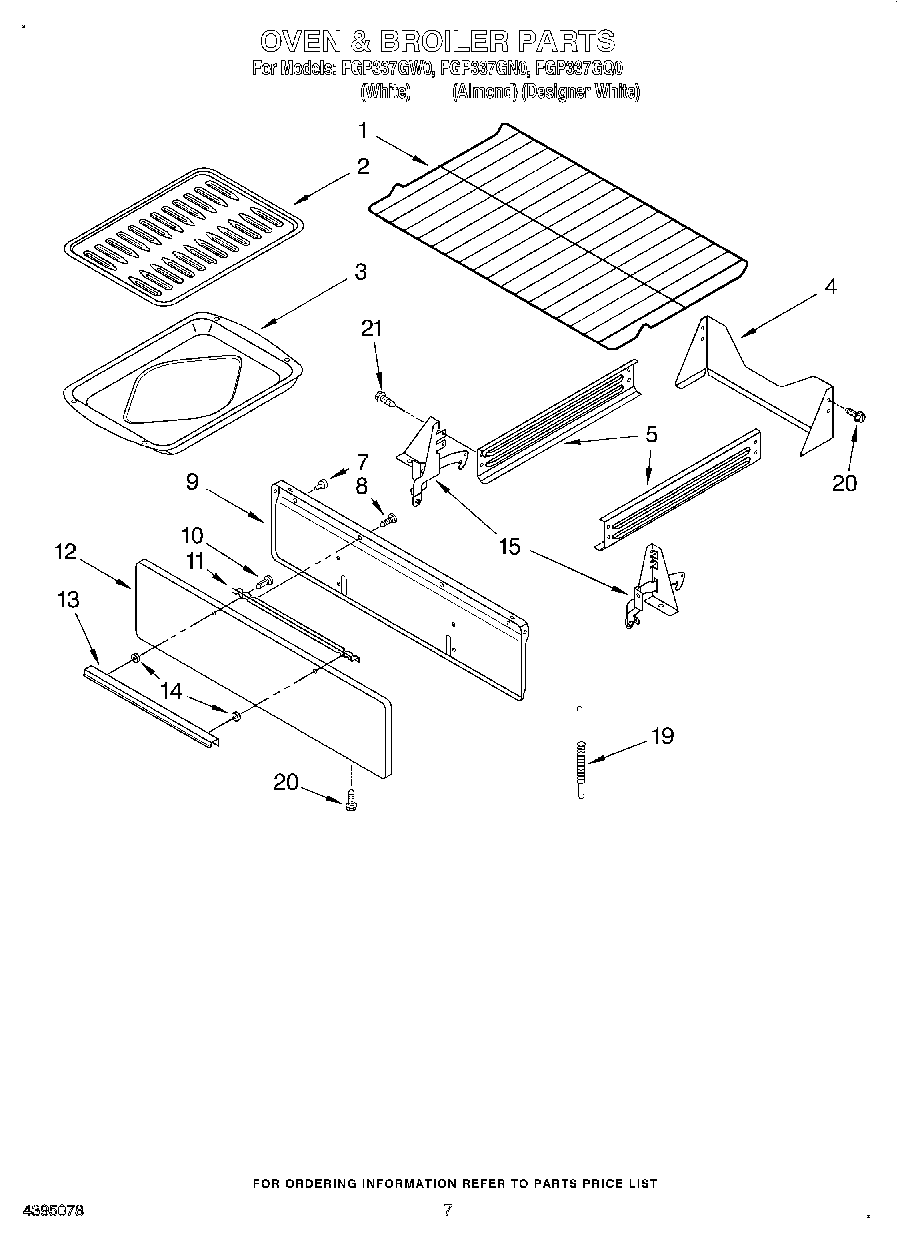

FGP337GW0 05 – OVEN AND BROILERadmin2025-04-26T08:40:51+00:00FGP337GW0 05 – OVEN AND BROILER
Products
| Position | Product |
|---|
| 1 | WPW10256908 Whirlpool Oven Range Rack |
| 2 | WP3195996 Whirlpool Pan Grid |
| 3 | WP3196076 Whirlpool Broil Pan |
| 4 | Bracket, Rear |
| 5 | Panel, Guide (2) |
| 7 | Bumper (4) |
| 8 | Screw |
| 9 | Liner, Door |
| 10 | Screw, Handle (2) |
| 11 | Bracket, Standoff |
| 12 | Panel, Door |
| 12 | Panel, Door (Almond) |
| 13 | Handle, Brlr Door (Black) |
| 14 | Spacer, Handle (2) |
| 15 | Hinge, Brlr Door (Right Hand) |
| 15 | Hinge, Brlr Door (Left Hand) |
| 19 | Spring, Broiler |
| 20 | SCREW |
| 21 | W10491985 Whirlpool Screw |
