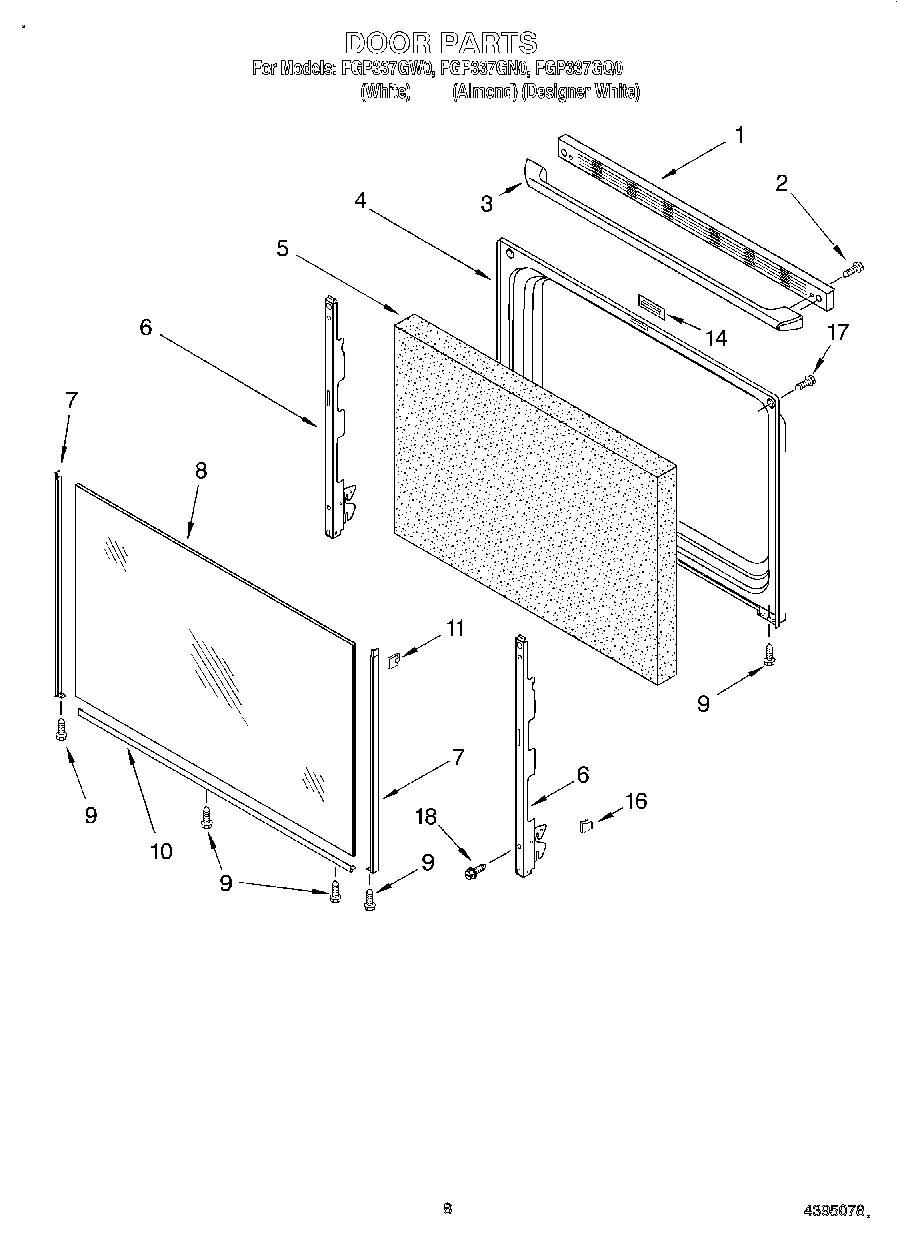

FGP337GW0 06 – DOOR, LIT/OPTIONAL

FGP337GW0 06 – DOOR, LIT/OPTIONAL

Written by

in

FGP337GW0 06 – DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT8053430
16515 Whirlpool Clip
814381 Whirlpool Pin
3400964 Whirlpool Oven Clip
Literature (Installation, Instructions (Template))
3196896 Whirlpool Clip
WPL 8053527
WPL LIT8053554
WPL 8053591
Safer Cooking Tips
WPL LIT8053707
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3W10202219 Whirlpool Door Handle Assembly
3WPW10202217 Whirlpool Door Handle
4Liner, Door
5Insulation, Door
6Hinge, Door (2)
8Glass, Door (White)
8Glass, Door (Black)
9W10491985 Whirlpool Screw
108184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
108184858 Whirlpool Door Trim
11Clip, Glass (4)
14Plug, Door
16WP3196925 Whirlpool Clip Assembly
17WP179051 Whirlpool Screw
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 150 c Orange)
18Wire (12 Ga. 150 c Black)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
181
188212471 Whirlpool Oven Paint
18Grease
188273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18WPL 72112
18Platinum (Uncut)
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
18Golden Harvest
1872113 Whirlpool Touch-Up Paint
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18350942 Whirlpool Spray Paint
18511873 Whirlpool Refrigerator Paint
18242831 Whirlpool Oven Wire
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
18285006 Whirlpool Spray
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18WP3196175 Whirlpool Screw
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18WPL 799832
18350930 Whirlpool White Spray Paint
