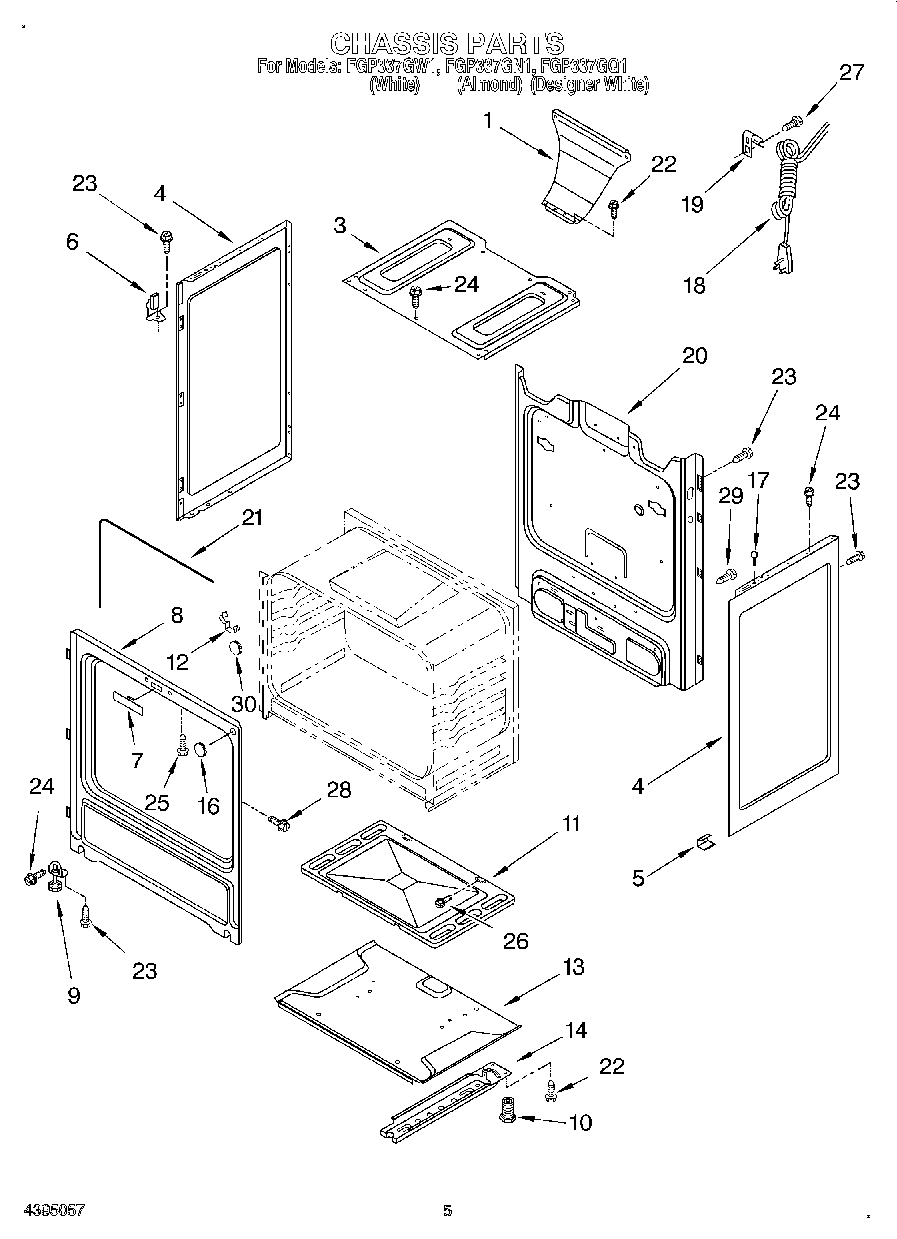

FGP337GW1 04 – CHASSIS

FGP337GW1 04 – CHASSIS

Written by

in

FGP337GW1 04 – CHASSIS

Products

PositionProduct
1W11457094 Whirlpool Oven Flue
3W11379351 Whirlpool Burner Box
4Panel, Side (2) (Almond-Textured)
4WPW10575396 Whirlpool Side Panel
5Clip, Panel (6)
6Brkt, Manifold Mtg (Right Hand)
6Brkt, Manifold Mtg (Left Hand)
7Plug, Frame
8Frame, Front
9WP3196037 Whirlpool Leveling Foot
10WPW10058460 Whirlpool Appliance Levelling Leg
11WP3195097 Whirlpool Oven Bottom
1298005642 Whirlpool Clip
13Baffle, Base
14WPW10306546 Whirlpool Base Rail
16Plug Button
17238614 Whirlpool Bumper Hinge
18WP9757891 Whirlpool Power Cord
19549193 Whirlpool Refrigerator Power Clamp
20Back, Main
21W11542153 Whirlpool Door Gasket
22WP3196557 Whirlpool Screw
24Screw
25SCREW
26Screw
27W11244557 Whirlpool Screw
28WP7101P246-60 Whirlpool Screw
29WP3196183 Whirlpool Screw
30W11688737 Whirlpool Insulation
30TIE,WIRE
30WPW10208653 Whirlpool Insulation
30Button, Plug (25/32“ (2))
