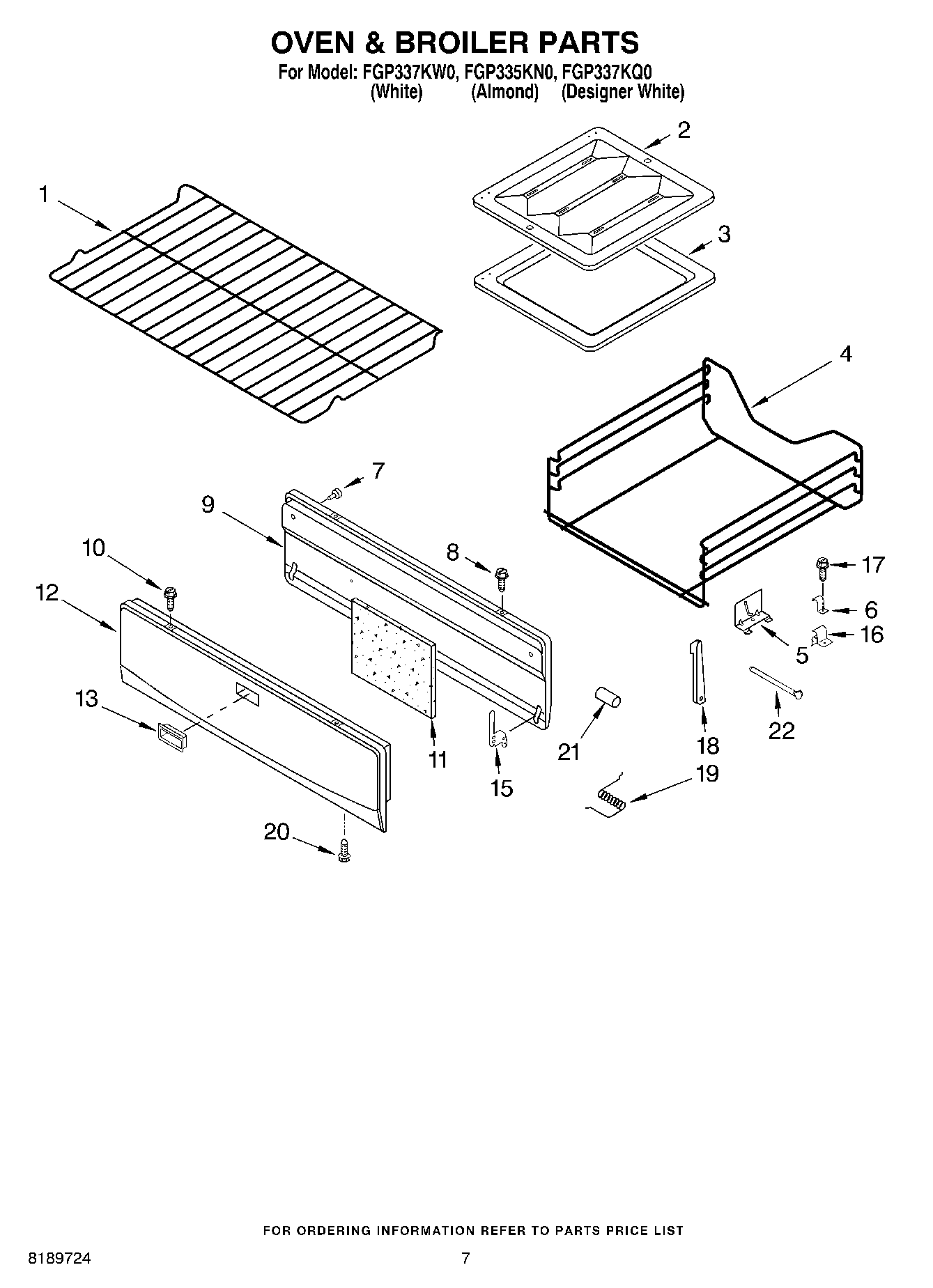

FGP337KQ0 05 – OVEN AND BROILER

Products

Position	Product
1	Rack, Oven (2)
2	WP98003480 Whirlpool Grill Pan
3	WP98016005 Whirlpool Broiler Pan
4	Rack, Broiler
5	Bracket, Rack
6	98004715 Whirlpool Drawer Guide
7	BUMPER, DOOR
8	3196166 Whirlpool Screw
8	Screw (Almond)
9	Liner, Door
11	Insulation, Door
12	Panel, Door (Almond)
12	Panel, Door (White)
13	WP3405184 Whirlpool White Door Handle
13	Handle, Brlr Door (Almond)
15	W11499074 Whirlpool Hinge Bracket
16	98008341 Whirlpool Clip
17	W10837731 Whirlpool Screw Assembly
18	Support, Hinge
19	Spring, Broiler (Right Hand)
19	Spring, Broiler (Left Hand)
20	WP3400805 Whirlpool Screw Assembly
22	98004053 Whirlpool Oven Hinge Pin
