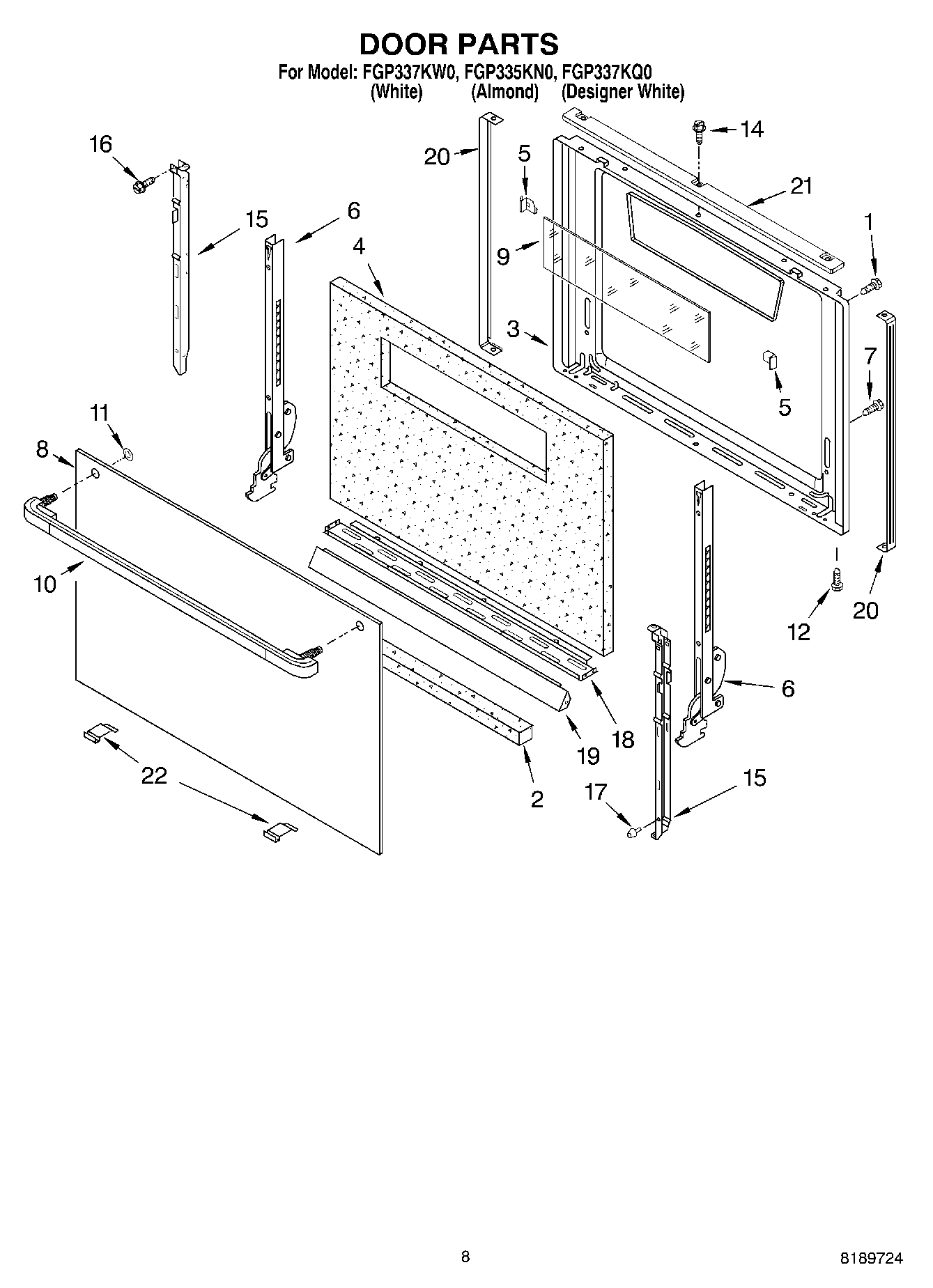

FGP337KQ0 06 – DOOR, OPTIONAL

FGP337KQ0 06 – DOOR, OPTIONAL

Written by

in

FGP337KQ0 06 – DOOR, OPTIONAL

Products

Position	Product
1	WP98004218 Whirlpool Screw
2	Insulation
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004953 Whirlpool Clip
5	98004952 Whirlpool Oven Clip
6	Hinge, Door (2)
7	W11206744 Whirlpool Screw
8	Panel, Door (White)
8	Panel, Door (Black)
9	Glass, Inner
10	WP98005318 Whirlpool Door Handle
10	WP98005317 Whirlpool Door Handle
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
14	3196166 Whirlpool Screw
14	WP3400832 Whirlpool Screw
15	98004564 Whirlpool Oven Retainer
15	98004629 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
17	98004227 Whirlpool Oven Bumper
18	98004938 Whirlpool Oven Retainer
19	Insulation, Retainer-Bottom
20	WP98006793 Whirlpool Door Trim Assembly
20	98006794 Whirlpool Oven Door Trim
21	98006884 Whirlpool Oven Door Trim
21	Top Trim, Door (White)
22	18 Ga. 80~c Rating (Red)
22	WP98010187 Whirlpool Range Door Trim
22	98017831 Whirlpool Oven Anchor Tip
22	Harness, Switch
22	350942 Whirlpool Spray Paint
22	WP98010185 Whirlpool Door Trim
22	Harness,
22	Harness, T-Stat
22	WP9757891 Whirlpool Power Cord
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25` Roll (Black 14 Ga.)
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	511873 Whirlpool Refrigerator Paint
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	Wire, 25“ Roll (White 14 GA.)
22	285006 Whirlpool Spray
22	814381 Whirlpool Pin
22	Grease
22	8212471 Whirlpool Oven Paint
22	1
22	Wire (14 Ga. 200 c Brown)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Yellow)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	350930 Whirlpool White Spray Paint
