FGP345VL1 03 – BROILER

FGP345VL1 03 – BROILER

Written by

in

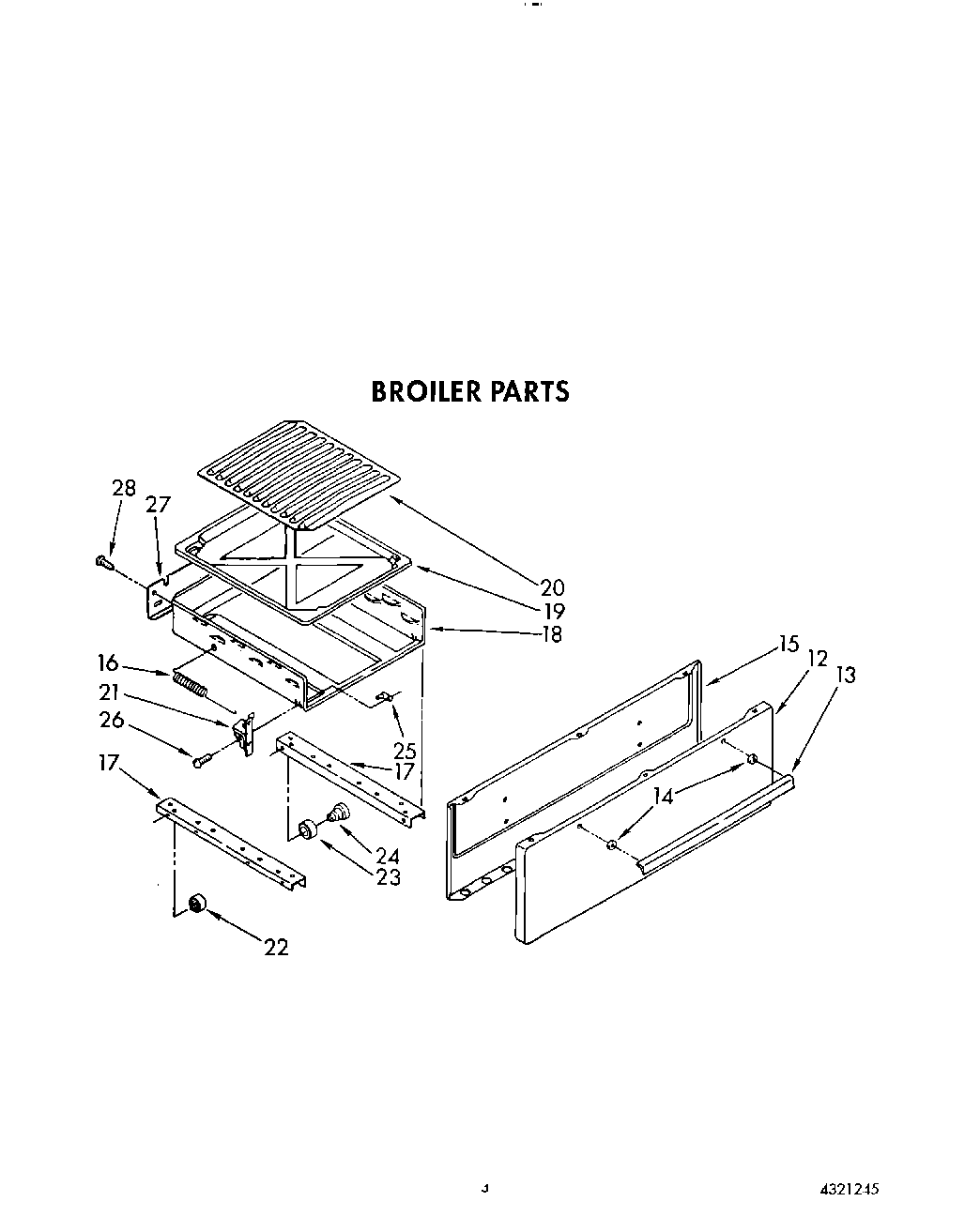

FGP345VL1 03 – BROILER

Products

PositionProduct
12Panel, Broiler (Almond)
12Panel, Broiler (White)
13Handle
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Carriage, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21WP308685 Whirlpool Microwave Screw
21Hinge, Door (L.H.)
21Hinge, Door (R.H.)
21W10080180 Whirlpool Nut
22Bumper, Nylon (4)
23Roller (2)
24Pin, Roller (2)
25Plate (2)
26Screw (2)
27Backer, Carriage
28Screws (3)
