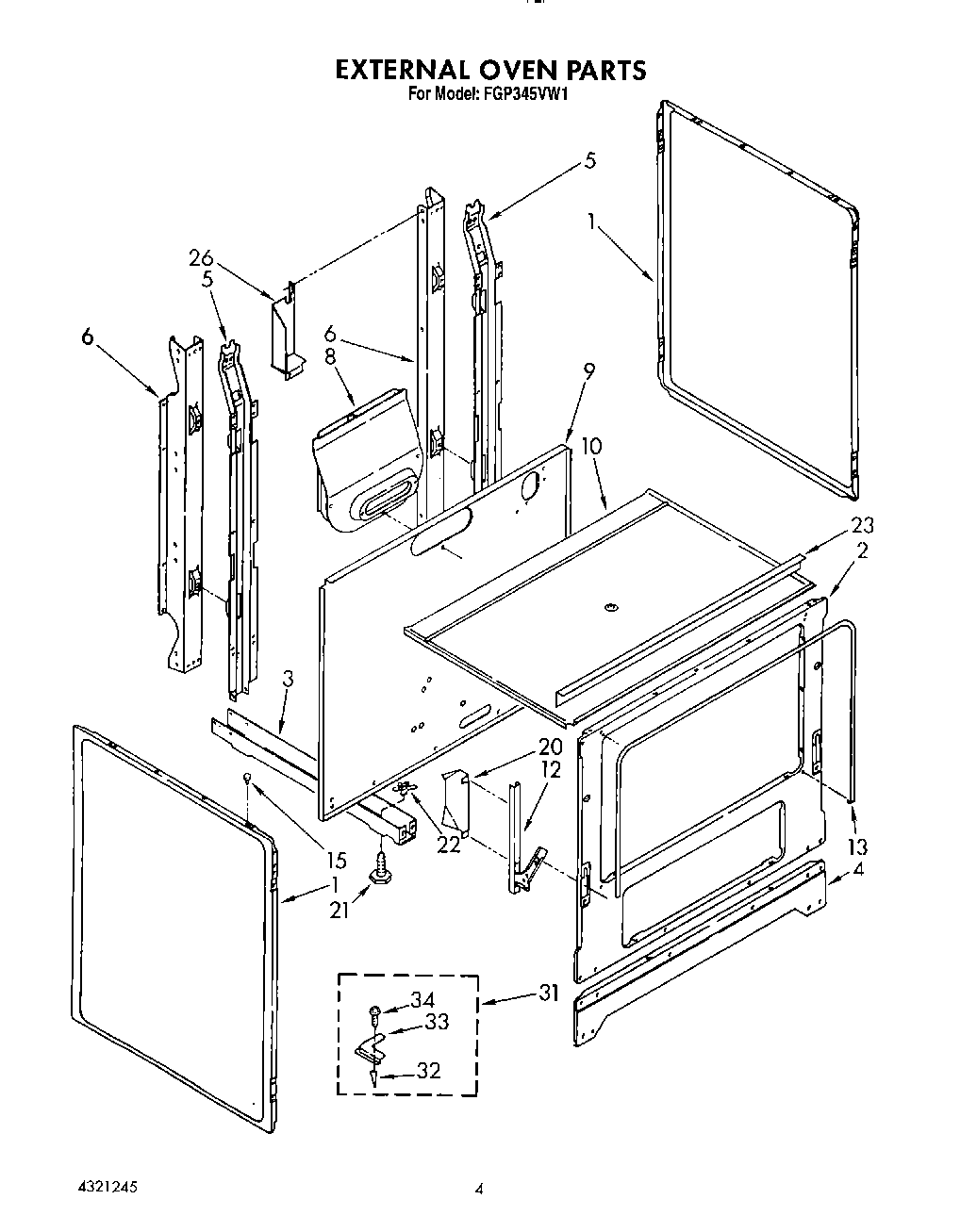

FGP345VL1 04 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (Almond)
1	Panel, Side (2) (White)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
8	Flue, Box
8	SCREW
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
12	Screw, 10-24 X 3/8 (2)
12	Hinge, Door (2)
13	Seal, Door (2)
15	Locator stud (2)
20	Stud Screw (2)
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Extension Burner Box
26	Cover, Wire
31	Anti Tip Kit
32	Anchor (2)
33	Bracket
34	Screw
