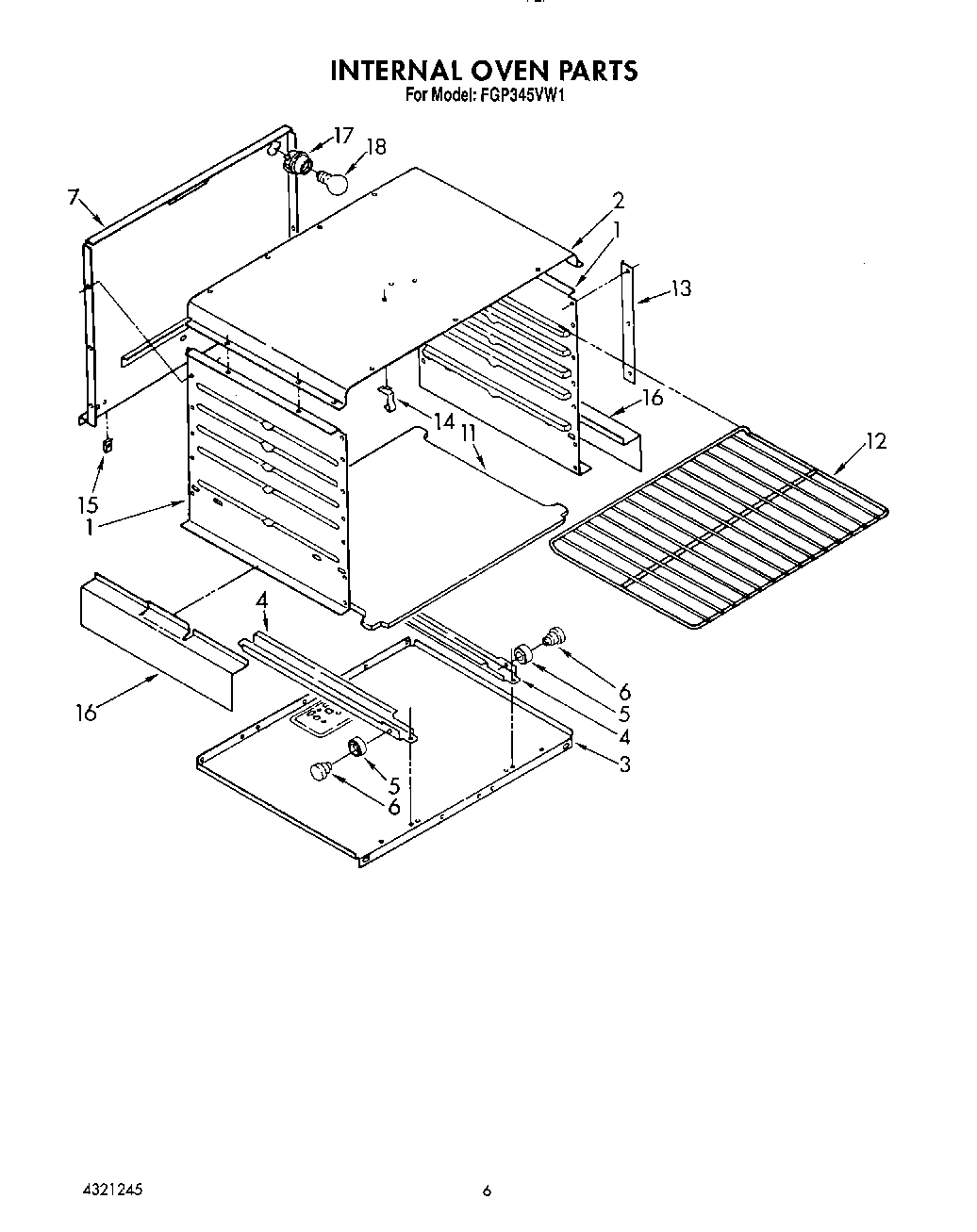

FGP345VL1 06 – INTERNAL OVEN
Written by
in
FGP345VL1 06 – INTERNAL OVEN
Products
Position
Product
1
Liner, Oven Side (2)
2
Liner, Oven Top
3
Baffle, Bottom
4
WP308685 Whirlpool Microwave Screw
4
Track, Broiler (Left Hand)
4
Track, Broiler (Right Hand)
5
Roller (2)
6
Pin, Roller (2)
7
Panel, Rear
11
Bottom, Oven
12
Rack, Oven (2)
13
Support, Liner (2)
14
98005642 Whirlpool Clip
15
Clip, Speed
16
Shield, Radiation
17
Receptacle, Light
18
RANGE ONLY 40W 120V APPL BULB
←
