FGP345VW1 02 – MANIFOLD

FGP345VW1 02 – MANIFOLD

Written by

in

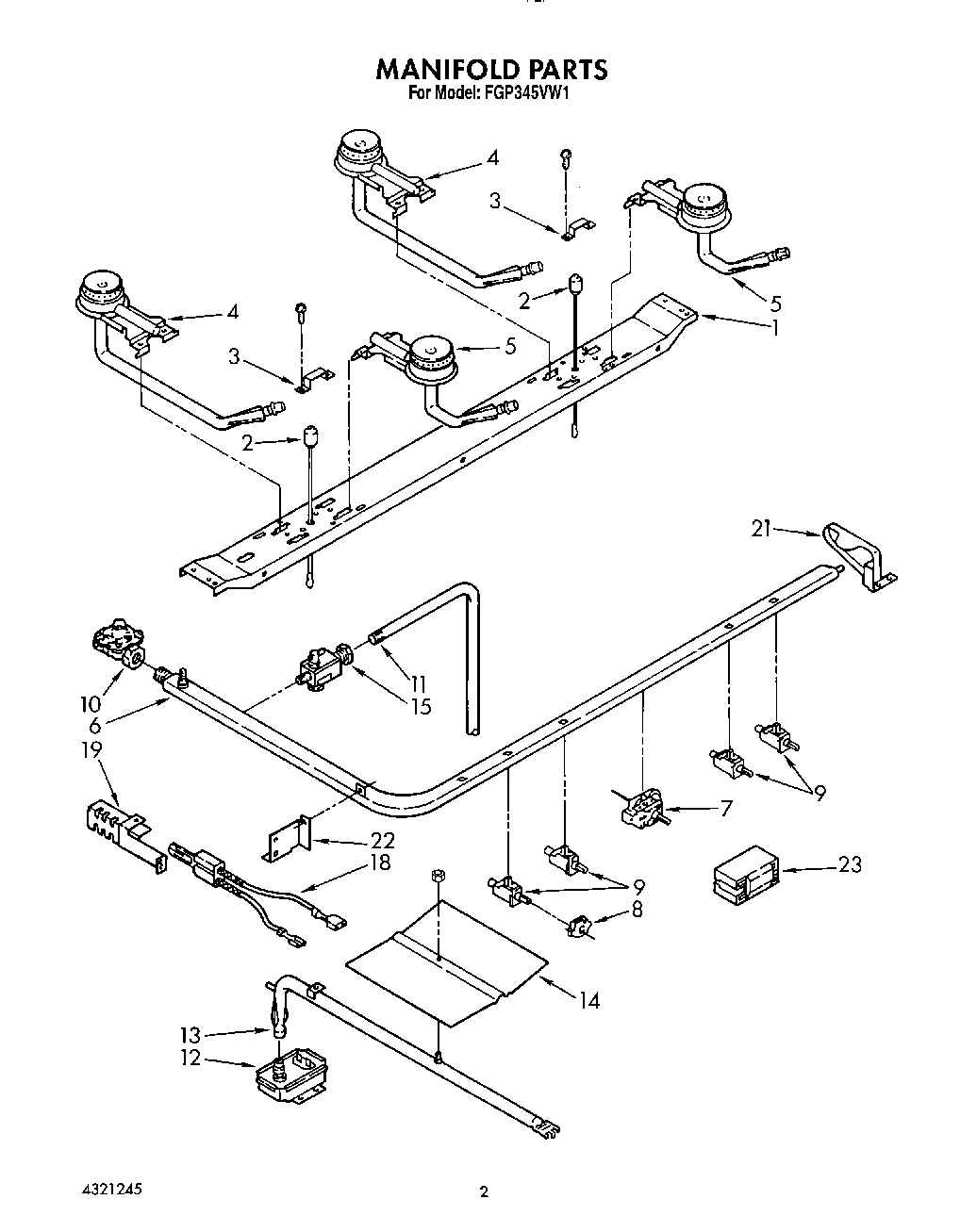

FGP345VW1 02 – MANIFOLD

Products

PositionProduct
1Support, Burner
2Ignitor (L.H.)
2Ignitor (R.H.)
3Screw
3Bracket, Spark Ignitor (2)
4Burner, Rear (2)
5Burner, Front (2)
6Pipe, Manifold
6Screw, Mounting
7Thermostat
8WP4157180 Whirlpool Surface Burner Ignition Switch
9Valve, 90~ (4) (Includes Ill. No. 33)
10Regulator, Pressure
11Burner, Oven
12WP308685 Whirlpool Microwave Screw
12Valve, Safety
13Burner, Oven
14W10080180 Whirlpool Nut
14Spreader, Flame
15Valve, Shut Off
18Pilot
19Bracket, Ignitor
21Support, Manifold (R.H.)
22Support, Manifold (L.H.)
23Module, Spark
23Plate, Spark Module
