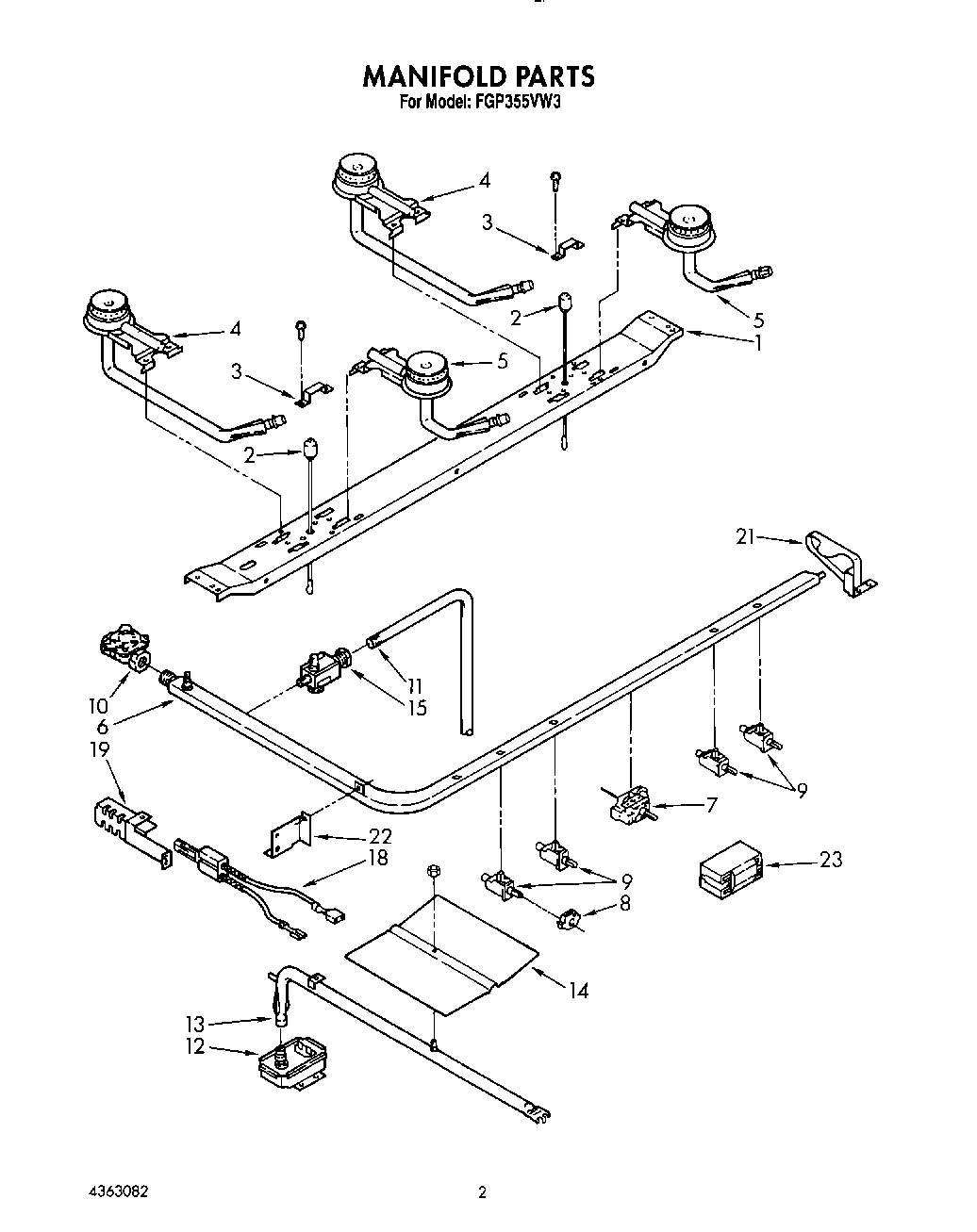

FGP355VL3 02 – MANIFOLD

Products

PositionProduct
1Support, Burner
2Ignitor (R.H.)
2Ignitor (L.H.)
3Screw
3Bracket, Spark Ignitor (2)
4Burner, Rear (2)
5Burner, Front (2)
6Screw, Mounting
6Pipe, Manifold
7Thermostat
8WP4157180 Whirlpool Surface Burner Ignition Switch
9Knob, Valve (4)
10Regulator, Pressure
11Burner, Oven
12WP308685 Whirlpool Microwave Screw
12Valve, Safety
13Burner, Oven
14Spreader, Flame
15Valve, Shut Off
18Pilot
19Shield
21Support, Manifold (R.H.)
22Support, Manifold (L.H.)
23Module, Spark
23Plate, Spark Module
