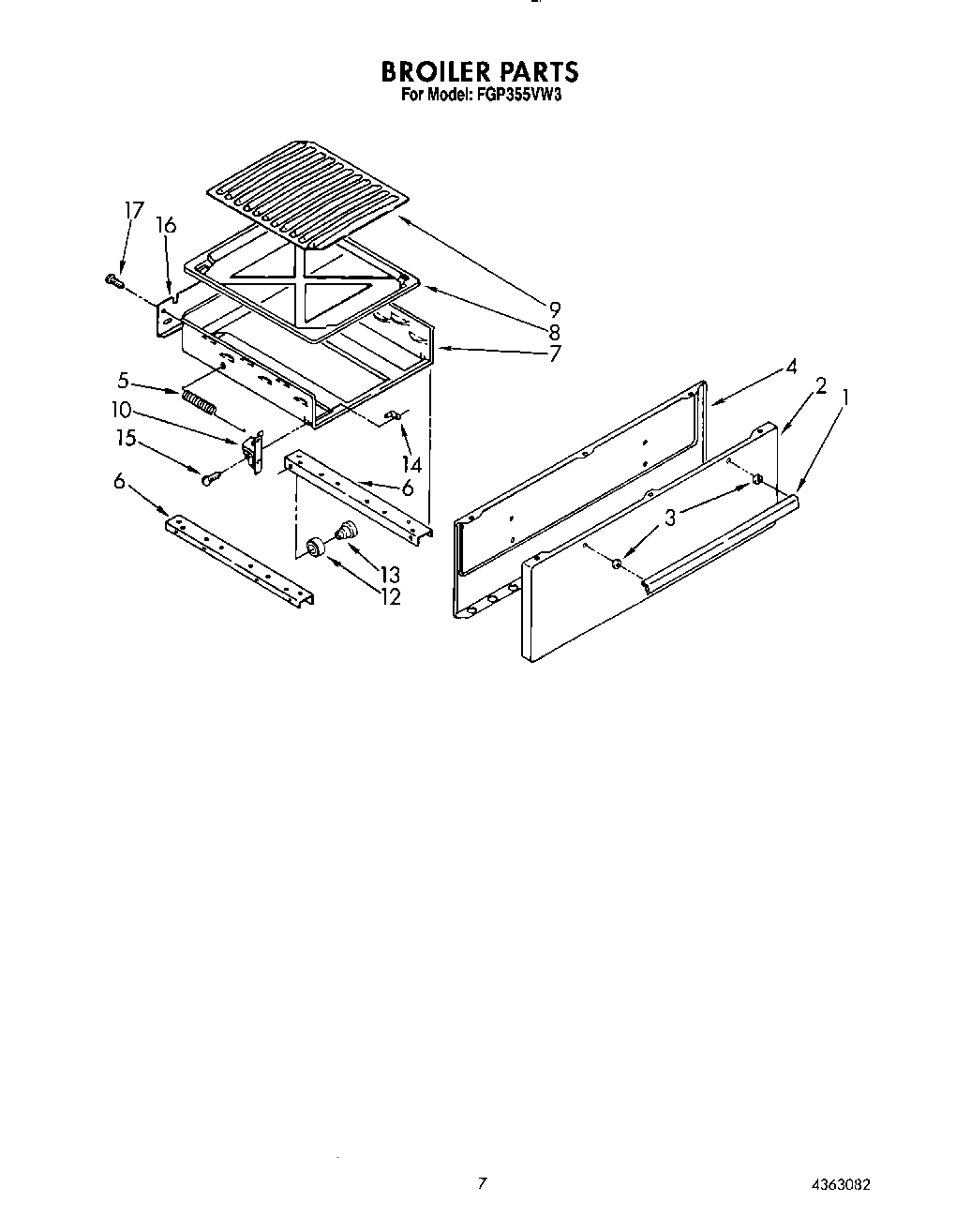

| 1 | Handle |
| 2 | Panel, Broiler (Almond) |
| 2 | Panel, Broiler (White) |
| 3 | Spacer (4) |
| 4 | Liner, Broiler Door |
| 5 | Spring (2) |
| 6 | Track, Upper (2) |
| 7 | Carriage, Broiler |
| 8 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 9 | Grid |
| 10 | WP308685 Whirlpool Microwave Screw |
| 10 | Hinge, Door (R.H.) |
| 10 | Hinge, Door (L.H.) |
| 10 | W10080180 Whirlpool Nut |
| 12 | Roller (2) |
| 13 | Roller Pin (2) |
| 14 | Plate (2) |
| 15 | Screw (2) |
| 16 | Backer, Carriage |
| 17 | Screws (3) |
