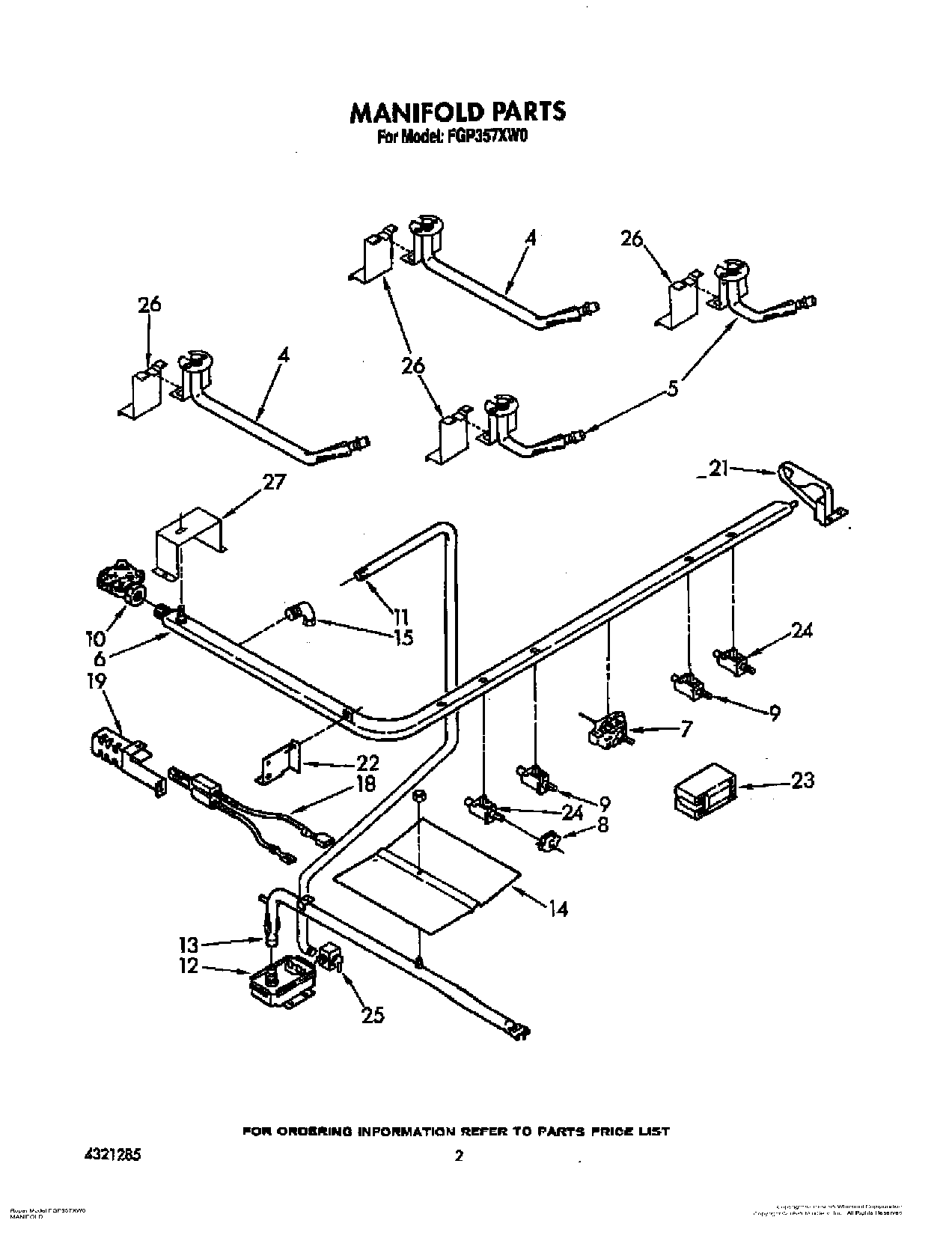

| 4 | Venturi, Rear |
| 5 | WP488729 Whirlpool Refrigerator Door Screw |
| 5 | Venturi, Front |
| 6 | Pipe, Manifold |
| 7 | Thermostat |
| 8 | WP4157180 Whirlpool Surface Burner Ignition Switch |
| 9 | Valve, 90~ (4) (Includes Ill. No. 33) |
| 10 | Regulator, Pressure |
| 11 | Tubing 3/8`` (Manifold To Safety Valve) |
| 12 | Valve, Safety |
| 13 | Burner, Oven |
| 14 | Spreader, Flame |
| 15 | Elbow 90~ |
| 18 | Pilot |
| 19 | Bracket, Ignitor |
| 21 | Support, Manifold (R.H.) |
| 22 | Support, Manifold (L.H.) |
| 23 | Plate, Spark Module |
| 23 | Module, Spark |
| 24 | Valve, 90 Degree L.F & R.R. |
| 25 | Valve, Shut Off |
| 26 | WPL 4321268 |
| 27 | Bracket, Manifold |
| 27 | Nut, Hex |
| 27 | WP308685 Whirlpool Microwave Screw |
