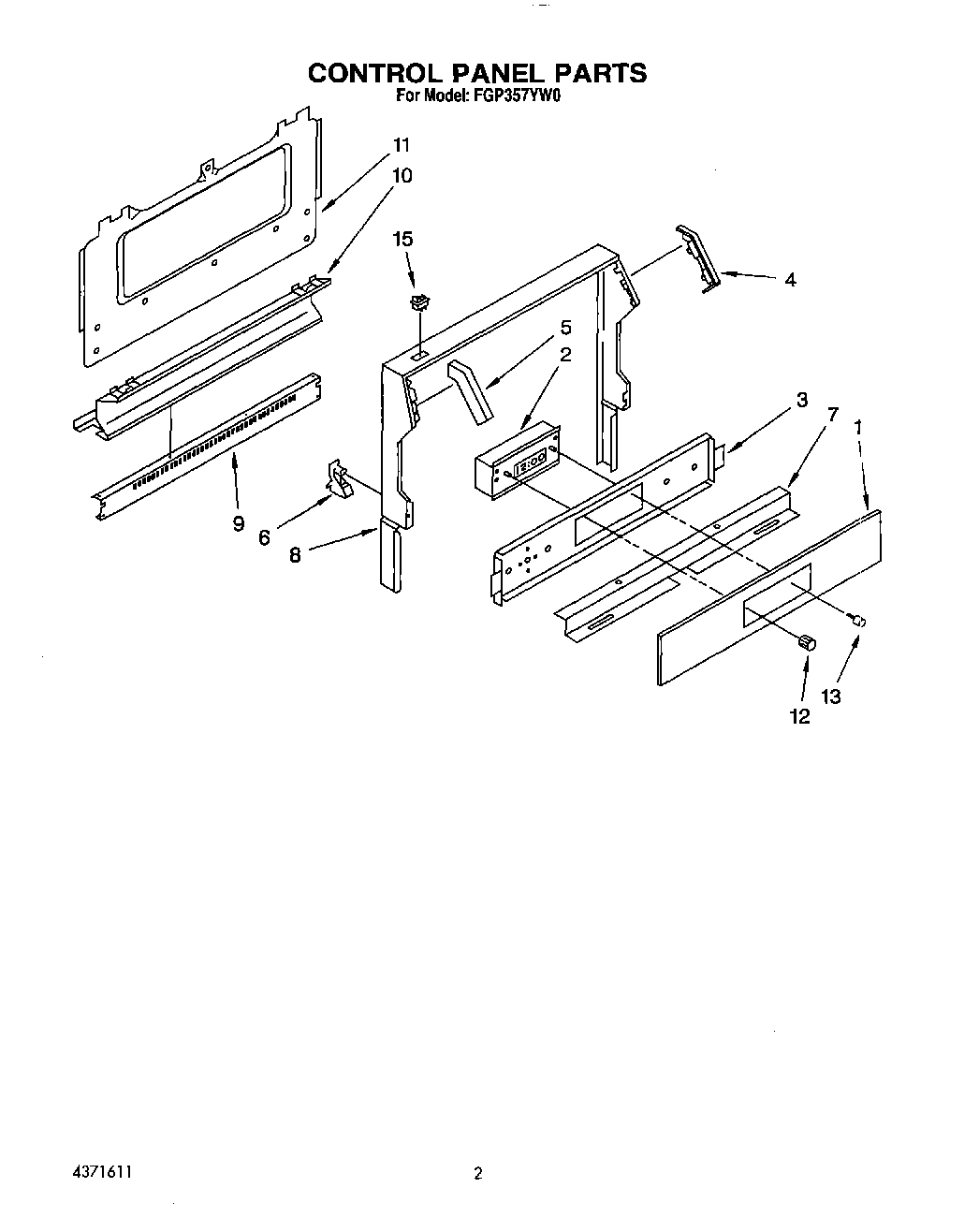

FGP357YL0 02 – CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T08:40:46+00:00FGP357YL0 02 – CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Guide, Use & Care |
| List, Repair Parts |
| Instructions, Installation |
| 1 | Panel, Control |
| 2 | Clock |
| 3 | Bracket, Timer |
| 4 | Cap, End (R.H.) |
| 5 | Cap, End (L.H.) |
| 6 | Brace, Backguard |
| 7 | Retainer, Timer |
| 8 | Trim, Wrapper |
| 9 | Trim, Vent |
| 10 | Trim, Splasher (Almond) |
| 10 | Trim, Splasher (White) |
| 11 | Shield, Rear Wall |
| 12 | Button, Hour/Minute (2) |
| 13 | Button, Clock/Timer |
| 15 | WP4314961 Whirlpool Lite Switch |
