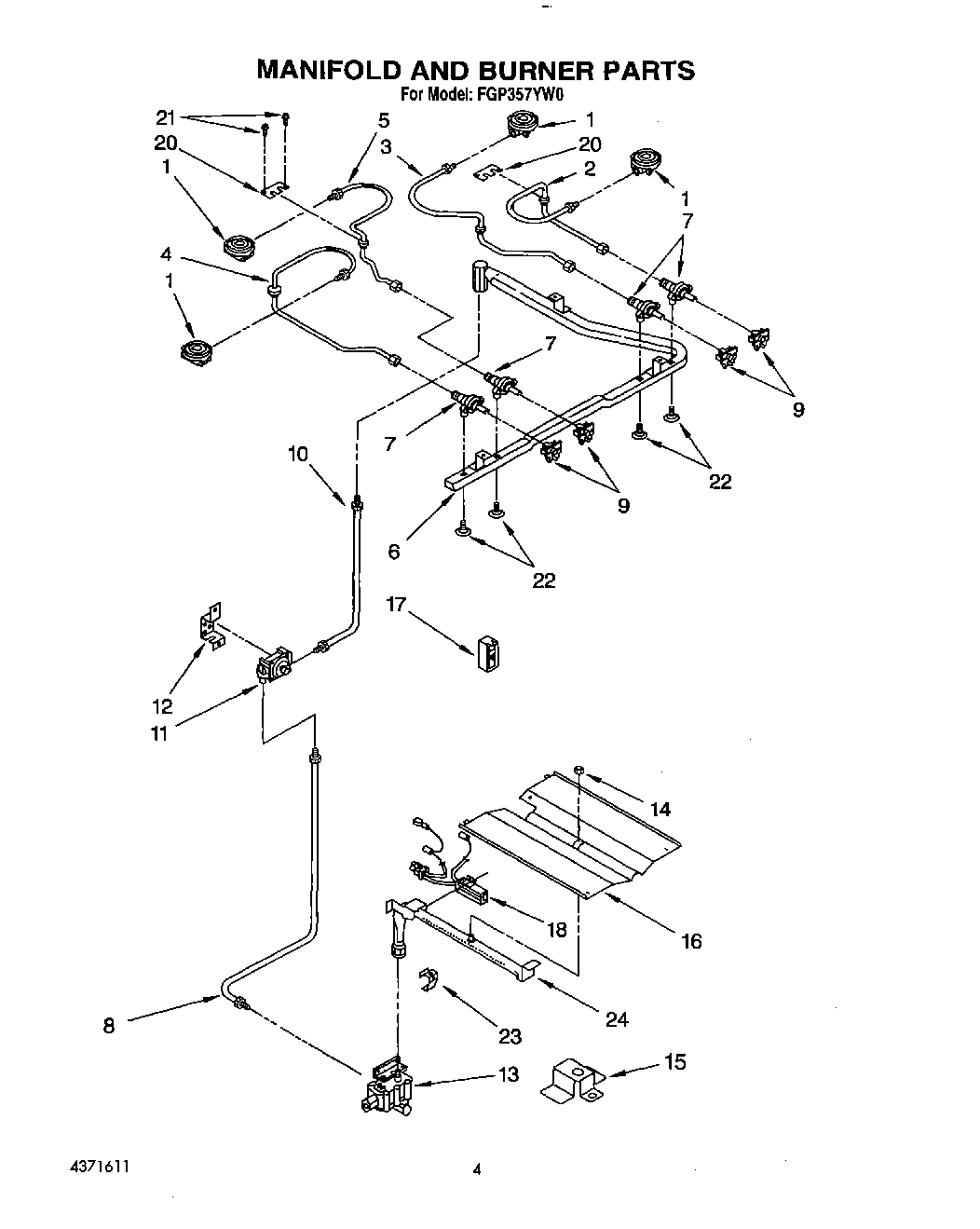

FGP357YW0 04 – MANIFOLD AND BURNER

Products

PositionProduct
1Burner, (4)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Pipe, Manifold
7Valve, Top (4)
8Tubing, Valve
9Switch, Ignitor (4)
10Tubing, Regulator To Manifold Pipe
11Control, Regulator
12Bracket, Regulator
13Valve, Safety
14Nut, Hex (2)
15Bracket, Valve
16Baffle, Oven Burner
17Ignitor Module
18814269 Whirlpool Oven Flat Igniter
20Plate, Burner
21Screw
22WP3186217 Whirlpool Screw
23Bracket, Burner
24Burner, Oven
