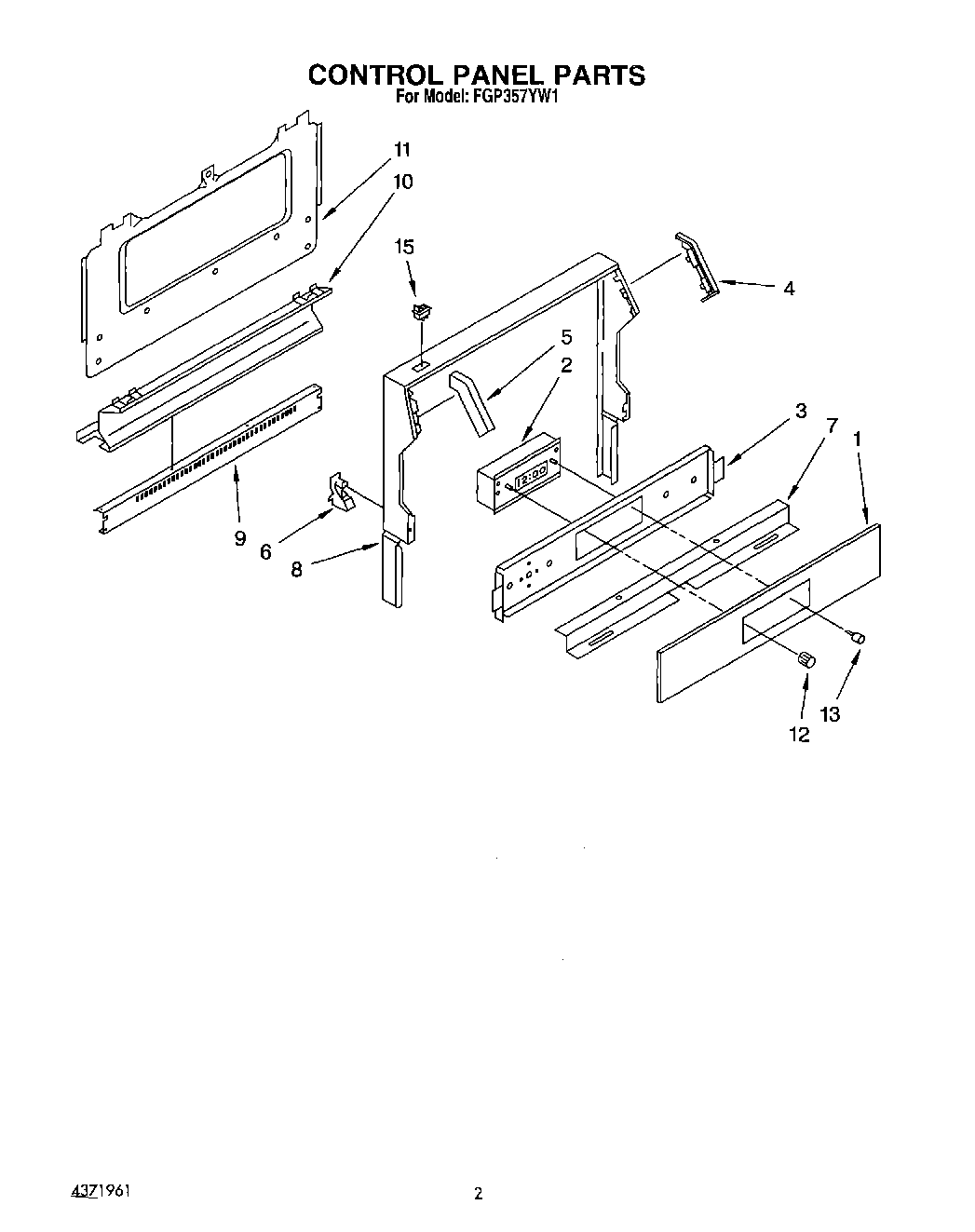

FGP357YW1 02 – CONTROL PANEL, LIT/OPTIONAL

FGP357YW1 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

FGP357YW1 02 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Guide, Use & Care
Instructions, Installation
1Panel, Control
2Clock
3Bracket, Timer
4Cap, End (R.H.)
5Cap, End (L.H.)
6Brace, Backguard
7Retainer, Timer
8Trim, Wrapper
9Trim, Vent
10Trim, Splasher (Almond)
10Trim, Splasher (White)
11Shield, Rear Wall
12Button, Hour/Minute (2)
13Button, Clock/Timer
15WP4314961 Whirlpool Lite Switch
