FGP357YW3 02 – COOKTOP

FGP357YW3 02 – COOKTOP

Written by

in

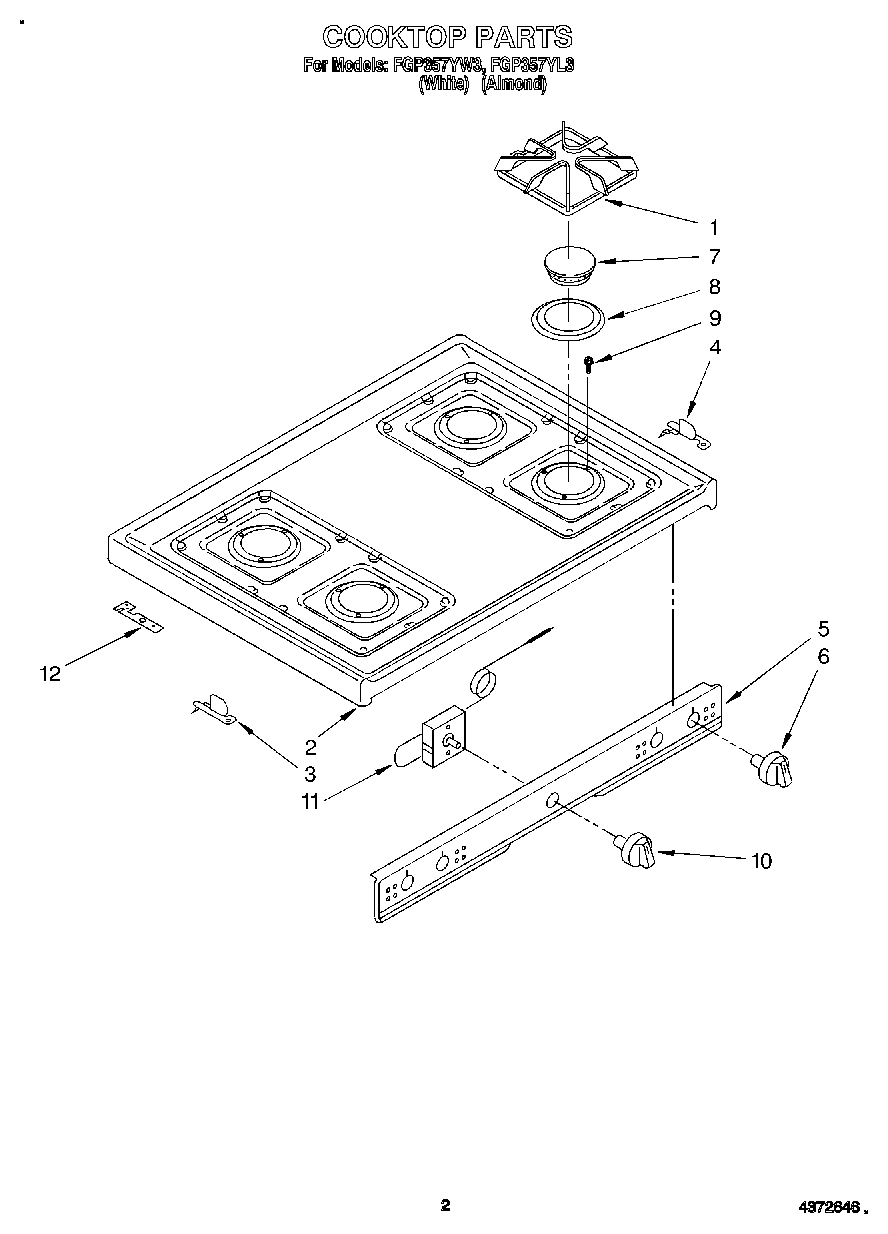

FGP357YW3 02 – COOKTOP

Products

Position	Product
1	Grate
2	Top, Main (White)
2	Top, Main (Almond)
3	Bracket, Hinge LH
4	Bracket, Hinge RH
5	Panel, Manifold
6	Knob, Control (4)
7	Cap, Burner
8	Ring, Trim
9	Screw, Burner Mtg.
10	Knob, Thermostat
11	Thermostat, Oven
12	Bracket, Mounting (L.H.)
12	Bracket, Mounting (R.H.)
