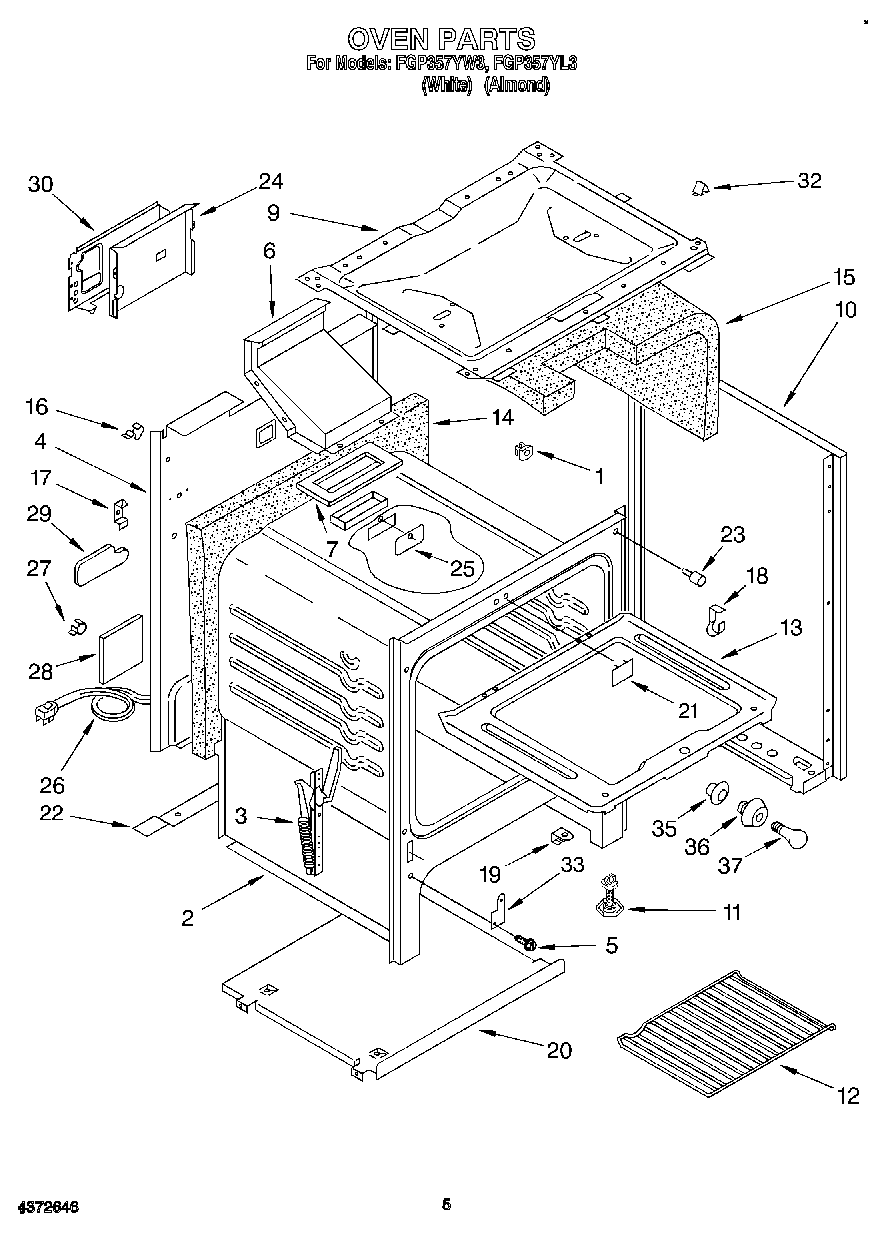

FGP357YW3 04 – OVEN

Products

Position	Product
1	Spacer, Body (8)
2	Liner, Oven (Not a Serviceable Part)
3	Hinge, Oven Door
4	Back, Main
5	Screw, Oven Bottom
6	Flue
7	Gasket, Flue
9	Burner Box
10	Panel, Side (White LH)
10	Panel, Side (White RH)
10	Panel, Side (Almond LH)
10	Panel, Side (Almond RH)
11	Screw, Leveler (4)
12	Rack, Oven (2)
13	Bottom, Oven
14	Insulation, Back
15	WPW10208653 Whirlpool Insulation
16	Clip, Wire
17	Fastener, U Type
18	Clip, Thermo Bulb
19	Support, Oven Bottom
20	Base, Broiler
21	Cover, Front
22	Bracket, Anti-Tip
23	Bumper, Front (4)
24	Cover, Flue
25	Screw, Liner (3)
25	Plate, Cover
26	Cord, Power
27	Fastener, Cord
28	Cover, Power Cord
29	Clip, Wire
30	Shield, Rear Wall
32	Clip, Top Mtg.
33	Cover, Hinge
35	W10856866 Whirlpool Light Socket
36	Housing, Oven Light
37	RANGE ONLY 40W 120V APPL BULB
