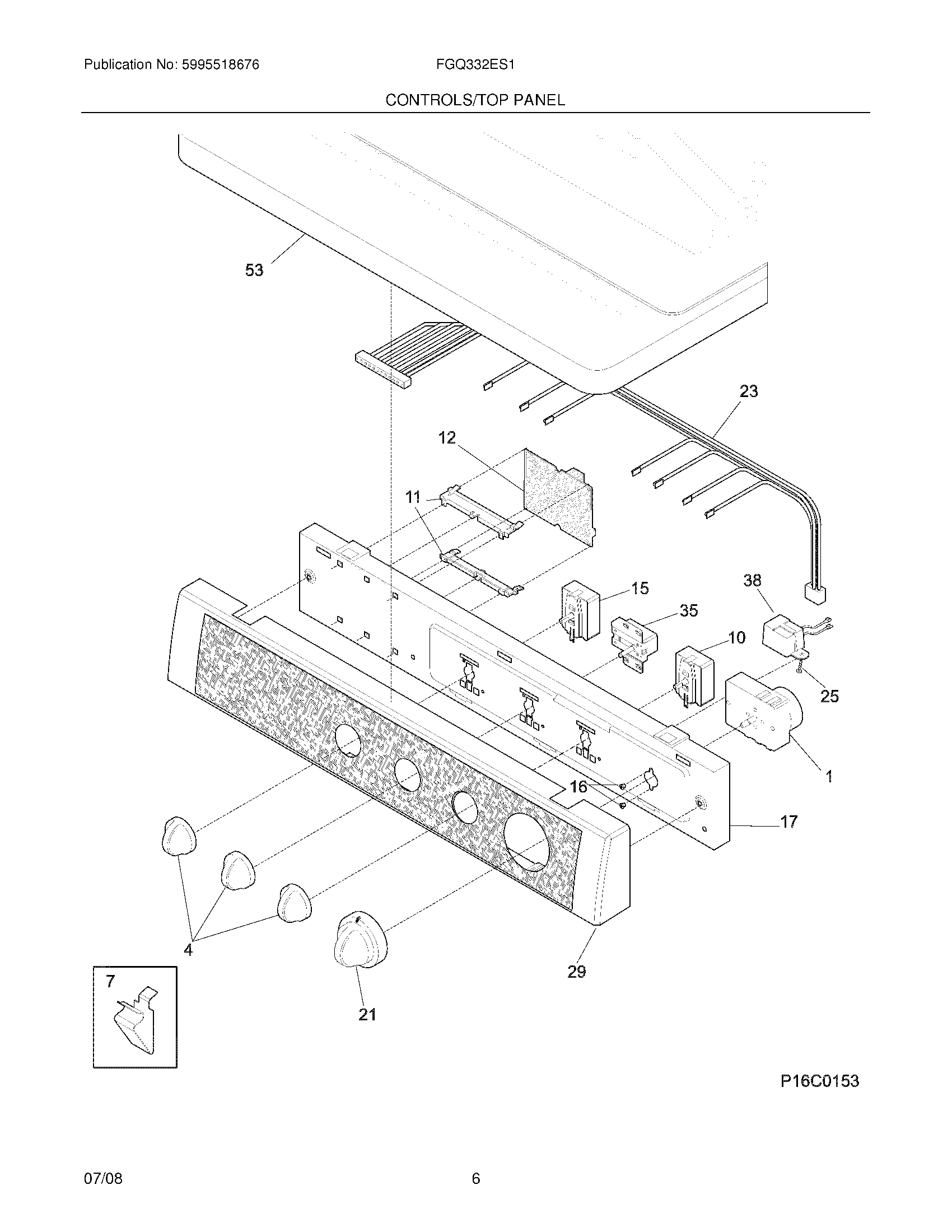

FGQ332ES1 07 – CONTROLS/TOP PANEL

FGQ332ES1 07 – CONTROLS/TOP PANEL

Written by

in

FGQ332ES1 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NIHARNESS-MAIN
NI134101400 Frigidaire Dryer Kit Terminal Block
1131789200 Frigidaire L-Dryer P-1 Timer
4131965300 Frigidaire Rotary Dryer White Control Knob
73205821 Frigidaire Clip
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11BRACKET-CONTROL BOARD
12WCI 134216300
15WCI 134895701
16218359202 Frigidaire Refrigerator Screw
17BRKT-CONT MTG-STACK DRYER
21DRYER TIMER KNOB WHITE
23WCI 134063900
255303015671 Frigidaire Bracket Termination Screw
29Console,frame ,w/trim
35WCI 134904500
38WCI 5303210285
53PANEL-TOP WHITE
