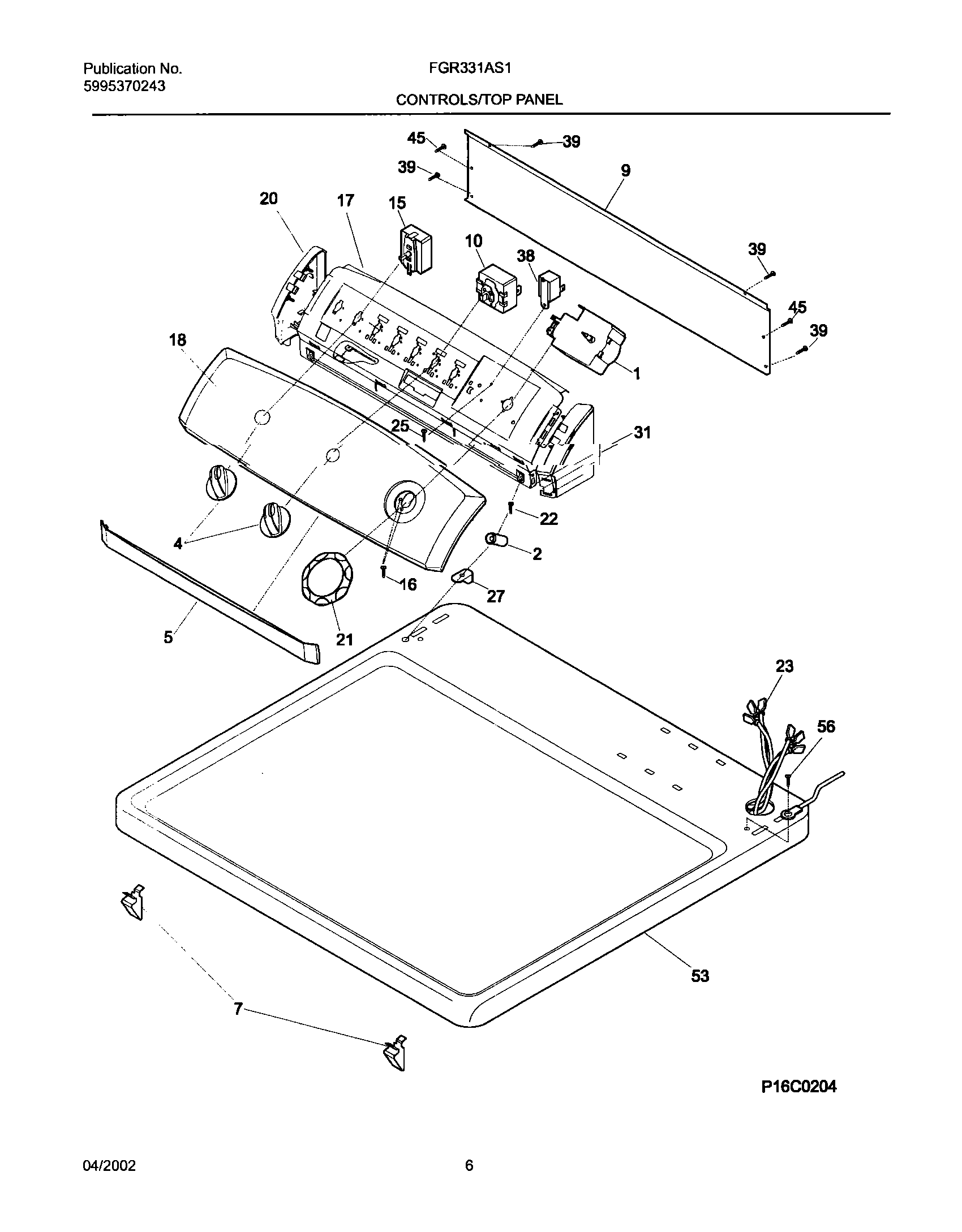

FGR331AS1 07 – CONTROL PANEL

FGR331AS1 07 – CONTROL PANEL

Written by

in

FGR331AS1 07 – CONTROL PANEL

Products

PositionProduct
1131583801 Frigidaire Dryer P-1 Timer
2WCI 134096100
4134844410 Frigidaire Washer Dryer Selector Knob White
5WCI 134019900
73205821 Frigidaire Clip
9WCI 131992900
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
15WCI 131288900
16218359202 Frigidaire Refrigerator Screw
17WCI 131993000
18WCI 134097000
20WCI 134019610
21134886700 Frigidaire Dryer Timer Knob
22WCI 131266300
23WCI 134054600
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 134019600
38WCI 5303210285
39131168200 Frigidaire Dryer Screw
45131205100 Frigidaire Screw
53WCI 134086802
56131243800 Frigidaire Screw
