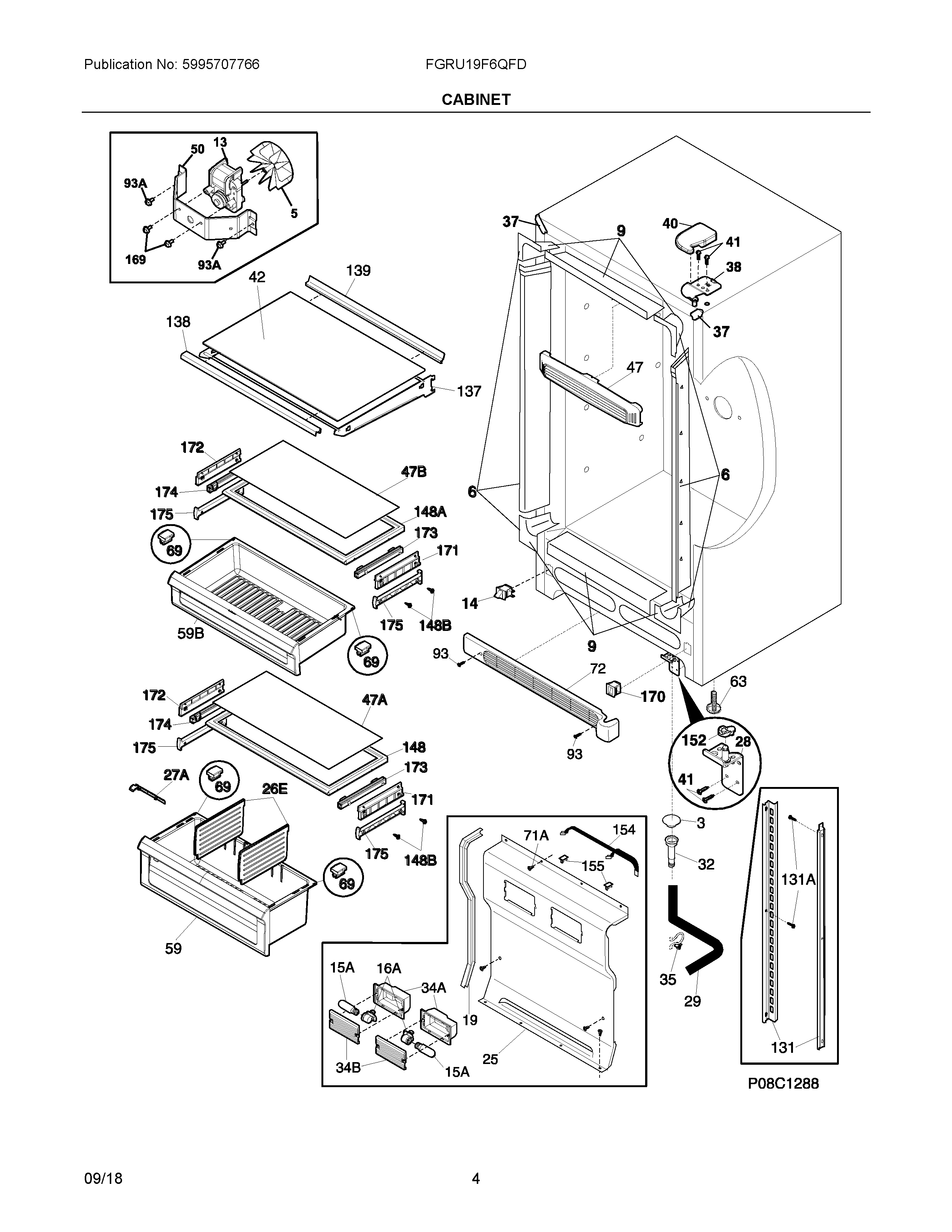

FGRU19F6QFD 03 – CABINET

FGRU19F6QFD 03 – CABINET

Written by

in

FGRU19F6QFD 03 – CABINET

Products

PositionProduct
NI297048000 Frigidaire Refrigerator Screw
NITRIM KIT, BUILT IN, SINGLE, COMPLETE, TRIMKITSS1
NITRIM KIT, BUILT IN, DUAL, COMPLETE, TRIMKITSS2
NIBBracket,RH leg levelor
NIABracket,LH leg levelor
NI216036601 Frigidaire Refrigerator Screw
NI297001704 Frigidaire Refrigerator Insulation
NIWCI 5304508335
NI216337701 Frigidaire Refrigerator Screw
3216503100 Frigidaire Refrigerator Screen-Drain
5FAN BLADE, EVAPORATOR
6297200900 Frigidaire Refrigerator Breaker Kit W/Corne
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139501 Frigidaire Refrigerator Socket
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25COVER-EVAPORATOR
26CWCI 297295600
26EWCI 297099400
27AKNOB, HUMIDITY CONTRL
28297302512 Frigidaire Refrigerator Hinge-Lower
295304510353 Frigidaire Refrigerator Hose
30BREAKER, CORNERS
325304511843 Frigidaire Refrigerator Sleeve
34AWCI 297053102
34B297053200 Frigidaire Refrigerator Lens
35216273000 Frigidaire Refrigerator Strap
37297273906 Frigidaire Refrigerator Corner Trim Cabinet
38HINGE-UPPER, RH
40COVER-HINGE, GRAY, RH
41240578902 Frigidaire Screw Mounting Hinge
42297265900 Frigidaire Refrigerator Glass Shelf
47297192903 Frigidaire Refrigerator Baffle
47B297102704 Frigidaire Glass Crisper Cover
47A297102705 Frigidaire Glass Cover Crisper
50WCI 08013207
59A11791811 Frigidaire Crisper Drawer
59B297292302 Frigidaire Refrigerator Deli Drawer
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
69WCI 297297300
71AScrew,8-18AB x.470 QX
72297036907 Frigidaire Refrigerator Grille Kickplate
93A241853202 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
131ASCREW, TH, 8-18X.470 AB QX, WHITE, (6)
131297130200 Frigidaire CHANNEL-SHELF MTG
137297050600 Frigidaire Refrigerator Frame-Shelf
138WCI 297261400
139WCI 297261500
148AWCI 297271701
148WCI 297271700
148B297142600 Frigidaire Refrigerator/Freezer Screw
152BEARING-HINGE
154297053000 Frigidaire Refrigerator Wire
155WCI 5303313703
169216912401 Frigidaire Refrigerator Screw
170297280403 Frigidaire Refrigerator Valve
171297092700 Frigidaire Refrigerator Bracket
172297092701 Frigidaire Refrigerator Bracket
1735304515502 Frigidaire Refrigerator Slide
1745304515501 Frigidaire Refrigerator Slide
175297099500 Frigidaire Refrigerator Support
