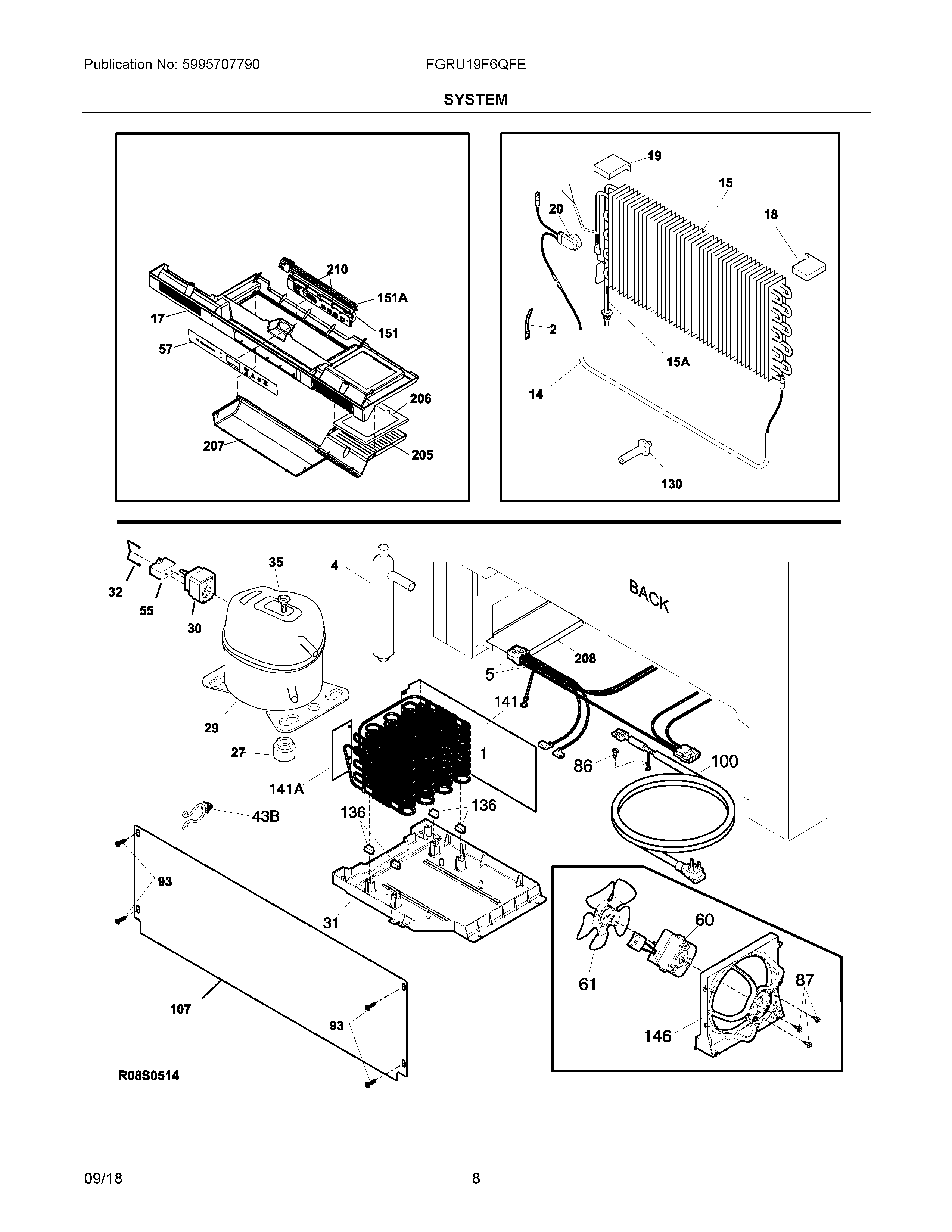

FGRU19F6QFE 04 – SYSTEM

Products

PositionProduct
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI297110400 Frigidaire Refrigerator Thermistor
NI5304485759 Frigidaire Refrigerator Tape
NI297001704 Frigidaire Refrigerator Insulation
NIA216337701 Frigidaire Refrigerator Screw
NI241853202 Frigidaire Refrigerator Screw
1297152201 Frigidaire Refrigerator Condenser
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5297334003 Frigidaire Harness-MAIN
14216730700 Frigidaire Refrigerator Defrost Heater
15A297217900 Frigidaire Refrigerator Suction Tube
15297414901 Frigidaire Refrigerator Evaporator
17BOX-CONTROL
18297078701 Frigidaire Refrigerator Insulator-Evaporator
19297078801 Frigidaire Refrigerator Evaporator Insulator
20DEFROST THERMOSTAT
27297368501 Frigidaire Bolt
29COMPRESSOR,EM3Z50
30297259524 Frigidaire Refrigerator Compressor Controller
31297165800 Frigidaire Refrigerator Drain Pan
325304497418 Frigidaire Refrigerator Clip
345304511843 Frigidaire Refrigerator Sleeve
35216273000 Frigidaire Refrigerator Strap
43B297315800 Frigidaire Refrigerator Clip
55WCI 297286802
57297269405 Frigidaire Refrigerator Overlay
60MOTOR-CONDENSER FAN
61241639502 Frigidaire Refrigerator Condenser Fan Blade
86216036601 Frigidaire Refrigerator Screw
87216858001 Frigidaire Refrigerator Screw
100297366805 Frigidaire Refrigerator Cord
107297165400 Frigidaire Refrigerator Access Cover
130297244700 Frigidaire Refrigerator Support
136240405201 Frigidaire Refrigerator Grommet
141DIVIDER, AIR FLOW
141A297194700 Frigidaire Divider
146WCI 297164000
151A5304495182 Frigidaire Refrigerator Harness-Jumper
1515304497786 Frigidaire Refrigerator Electrical Control
205WCI 297294301
206EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
207WCI 297294500
208GUARD-WIRE
210216905301 Frigidaire Refrigerator Screw
