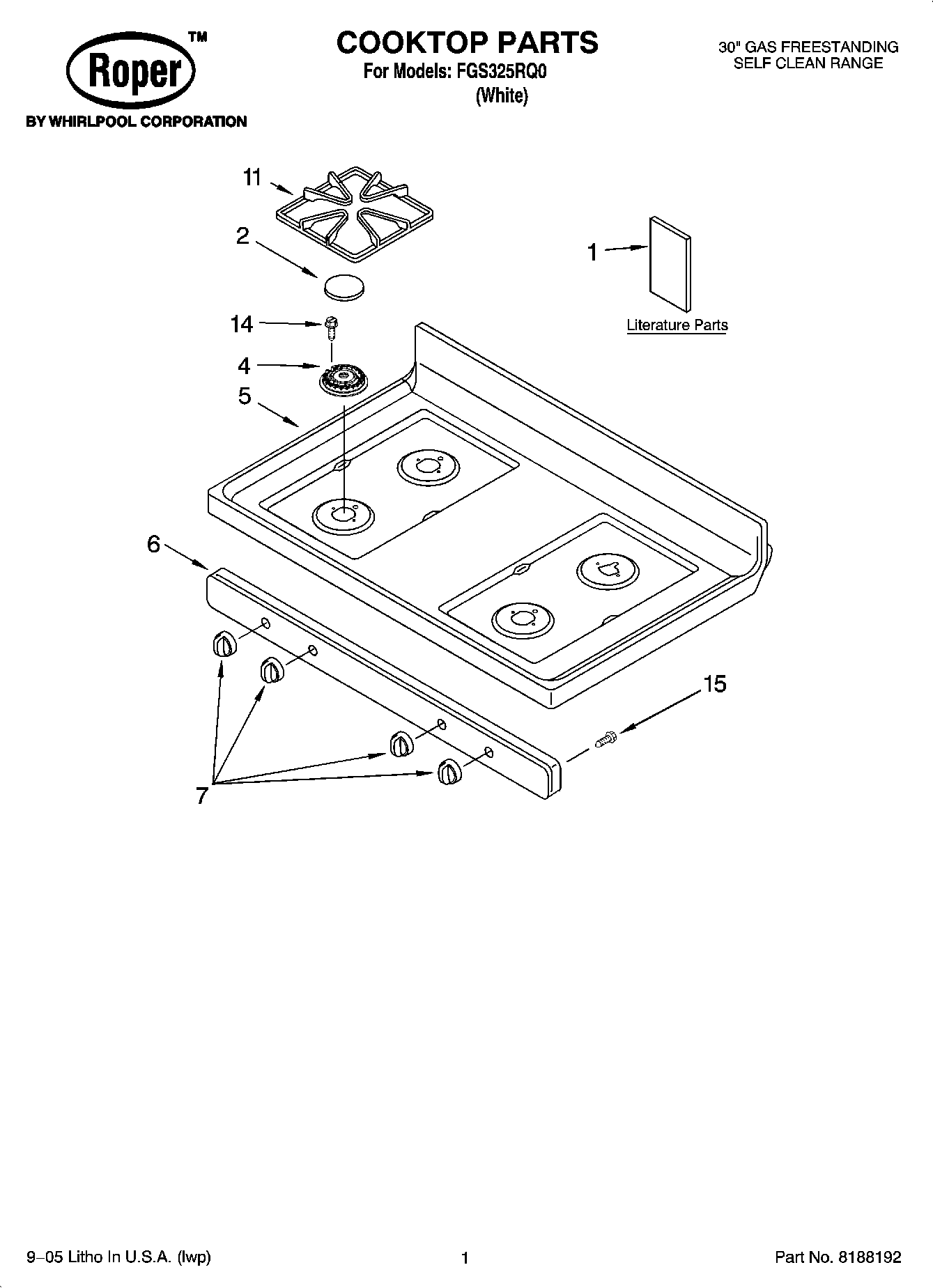

FGS325RQ0 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1Installation Instructions Anti-Tip Template
1Safe Cooking Tips
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
1Owner`s Manual
2Cap, Burner 6K (1) (Gray)
2WP3191903 Whirlpool Burner Cap
4WP4455980 Whirlpool Burner Head
4WP4455979 Whirlpool Range Small Burner Head
5W11213959 Whirlpool Cooktop
6Panel, Manifold (White)
7WP8273104 Whirlpool Knob
11W10837340 Whirlpool Grate Kit
14WP3368921 Whirlpool Screw
15WP3196557 Whirlpool Screw
