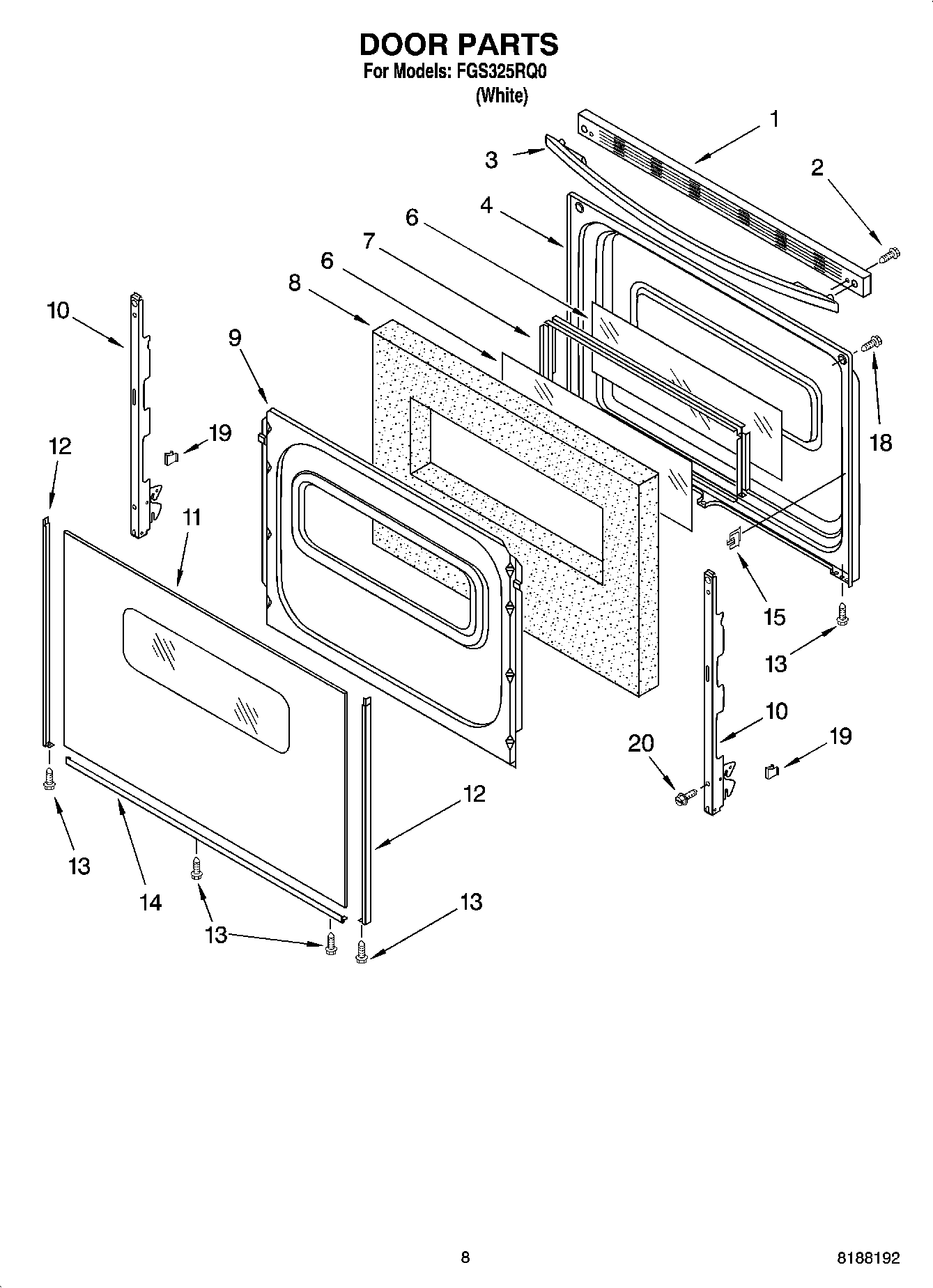

FGS325RQ0 06 – DOOR PARTS, OPTIONAL PARTS

FGS325RQ0 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

FGS325RQ0 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI57726A4
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	3196696 Whirlpool Clip
	WPL ARI57727A9
	3196896 Whirlpool Clip
	WPL ARI57725A5
	WPL ARI57724A1
	WPL ARI57723A7
	WPL ARI57722A8
	WPL ARI57721A2
	WPL ARI57720A5
	WPL 9758205
	WPL 8524207
	TIE,WIRE
	8523599 Whirlpool Oven Wire Harness
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	Grease
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	8528351 Whirlpool Clip
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	W11447673 Whirlpool Range Tip Anchor
	WP72107 Whirlpool Touchup
	814381 Whirlpool Pin
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	WPW10278991 Whirlpool Insulation
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP9762476 Whirlpool Door Glass
12	WP8523172 Whirlpool Left Door Trim
12	WP8523166 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
