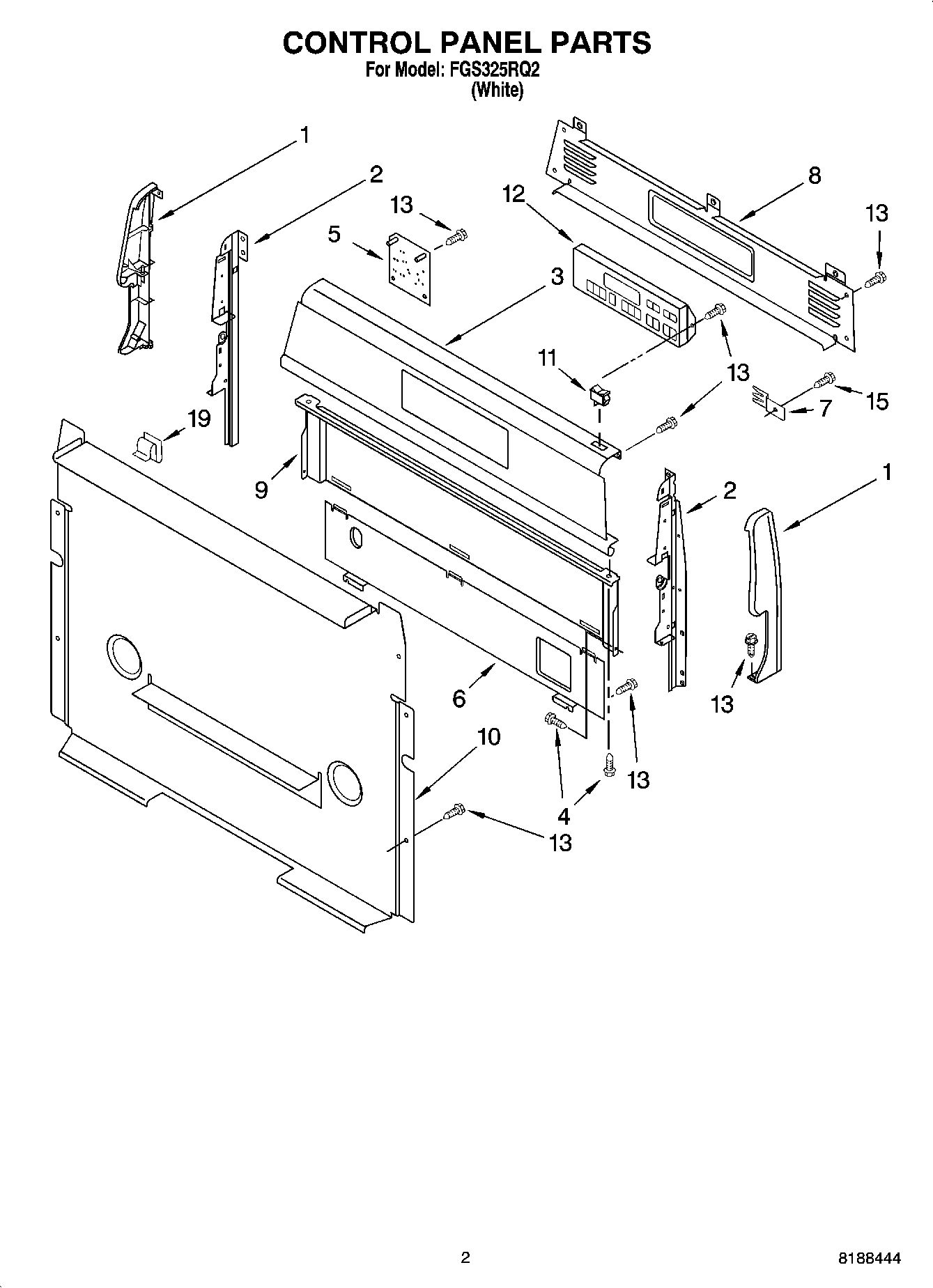

FGS325RQ2 02 – CONTROL PANEL PARTS

FGS325RQ2 02 – CONTROL PANEL PARTS

Written by

in

FGS325RQ2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8Cover, Upper
9Shield, Heat
10Cover, Lower
113149360 Whirlpool Light Switch
12Control, Range (White)
13SCREW
15WP3196557 Whirlpool Screw
19WP8273564 Whirlpool Clip
