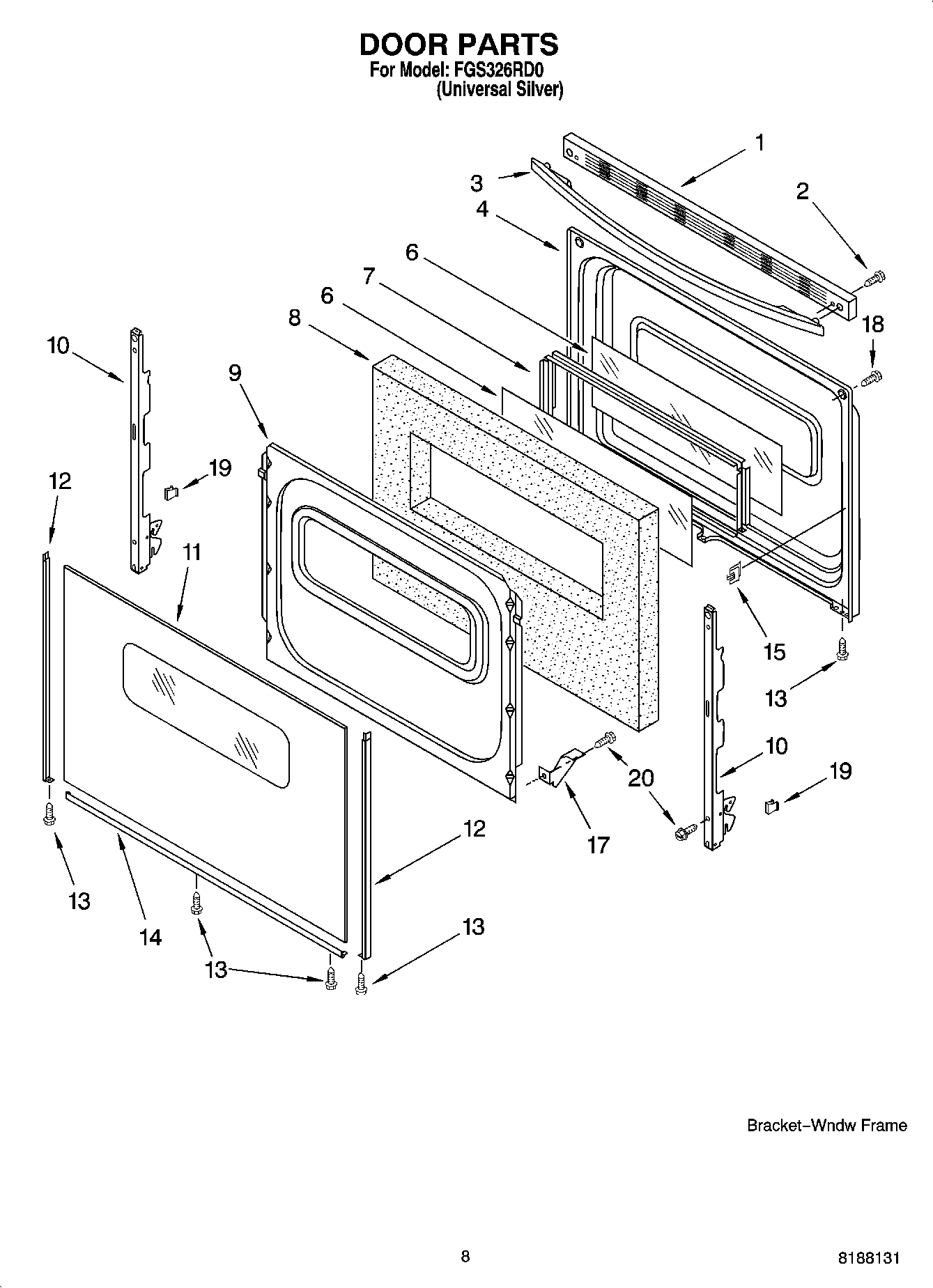

FGS326RD0 06 – DOOR PARTS, OPTIONAL PARTS

FGS326RD0 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

FGS326RD0 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI57757A3
	WP3195996 Whirlpool Pan Grid
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	Grease
	WPL ARI57758A1
	WPL ARI57756A4
	WPL ARI57755A3
	WPL ARI57754A9
	WPL ARI57753A6
	WPL ARI57752A5
	WPL ARI57751A7
	WPL 9758205
	WPL 8524207
	TIE,WIRE
	8523599 Whirlpool Oven Wire Harness
	3196896 Whirlpool Clip
	WP4449743 Whirlpool Screw
	242831 Whirlpool Oven Wire
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	W11447673 Whirlpool Range Tip Anchor
	WP3196076 Whirlpool Broil Pan
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	350930 Whirlpool White Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
1	Trim, Top (Stainless Model)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	Hinge, Door (Stainless Model)
11	Glass, Outer Door
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
13	W10491985 Whirlpool Screw
14	WP8523180 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
17	WP3196794 Whirlpool Glass Bracket
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
