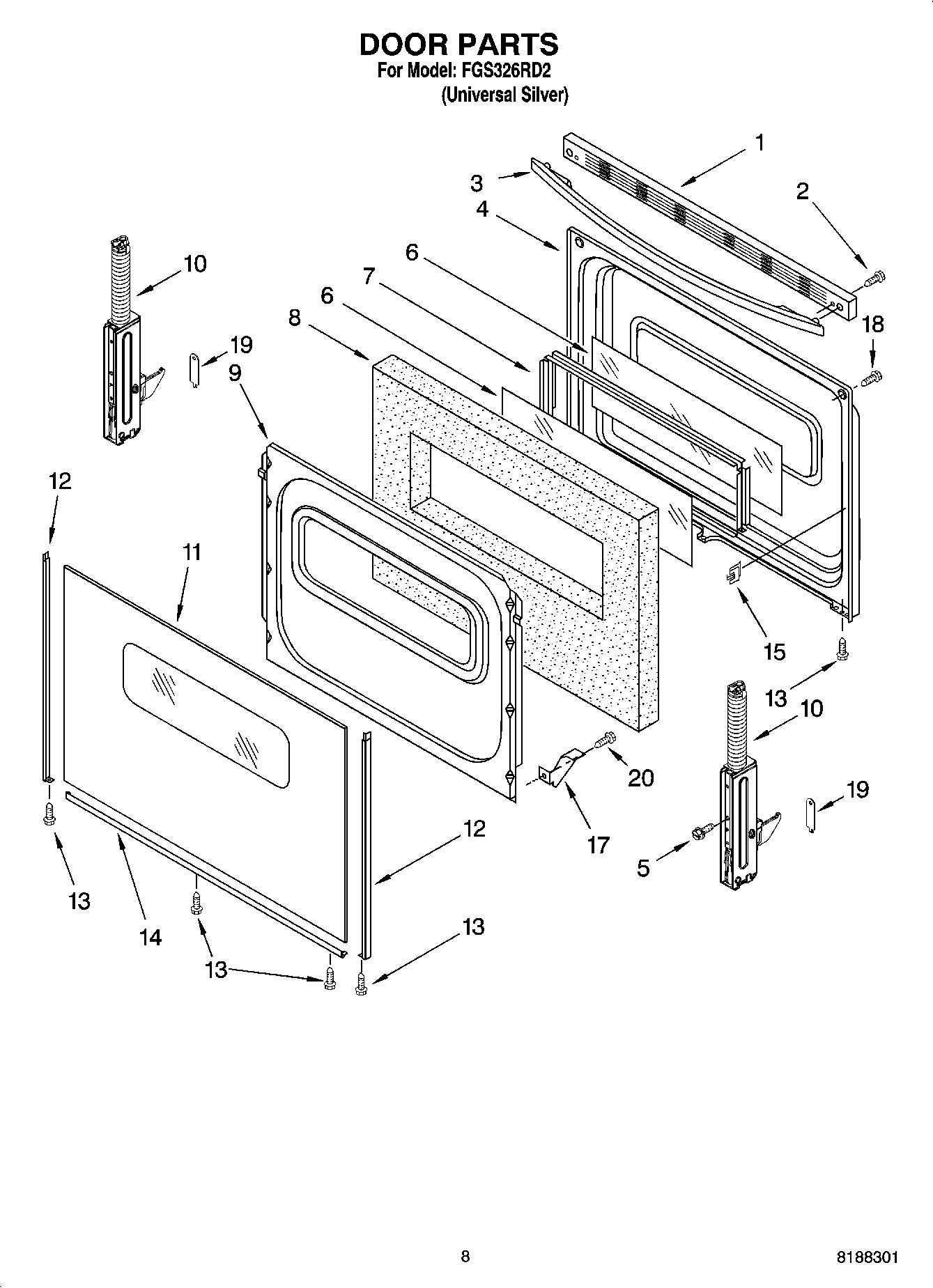

FGS326RD2 06 – DOOR PARTS, OPTIONAL PARTS

FGS326RD2 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

FGS326RD2 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI57780A2
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	WPL 9758205
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP4449743 Whirlpool Screw
	3196696 Whirlpool Clip
	Grease
	3196896 Whirlpool Clip
	WPL ARI57779A1
	WPL ARI57778A1
	WPL ARI57777A5
	WPL ARI57776A6
	WPL ARI57775A7
	WPL ARI57774A2
	WPL ARI57773A2
	WPL 8524207
	TIE,WIRE
	8523599 Whirlpool Oven Wire Harness
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	350942 Whirlpool Spray Paint
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	Almond (Uncut)
	814381 Whirlpool Pin
	350956 Whirlpool Spray Assembly
	3400964 Whirlpool Oven Clip
	16515 Whirlpool Clip
	Wire (14 Ga. 150 c Yellow)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	W11447673 Whirlpool Range Tip Anchor
1	Trim, Top (Black and S.Steel Models)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	Screw
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347464 Whirlpool Door Hinge
11	WPW10118455 Whirlpool Door Glass Assembly
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523180 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
17	WP3196794 Whirlpool Glass Bracket
18	WP179051 Whirlpool Screw
19	9761517 Whirlpool Oven Clip Assembly
20	WP3196175 Whirlpool Screw
