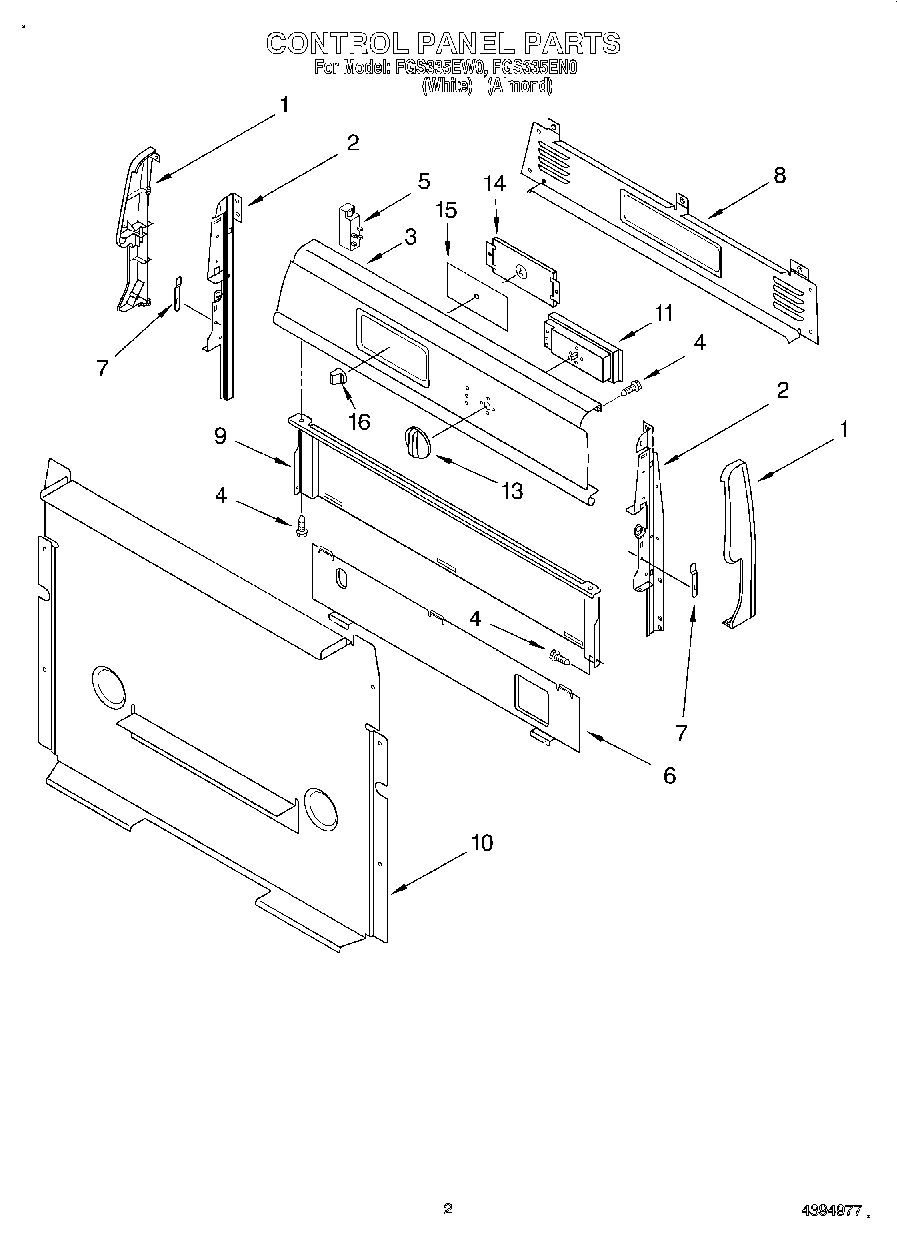

FGS335EN0 02 – CONTROL PANEL

FGS335EN0 02 – CONTROL PANEL

Written by

in

FGS335EN0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Left Hand)
1Endcap (Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard
5Module, Spark
5WPY706189 Whirlpool Stove Screw
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Screw
9Shield, Heat
10Cover, Lower
11Control, Oven
113196172 Whirlpool Oven Screw
13Knob, Oven Control
14Timer, Clock
14SCREW
15Glass, Timer
16WP3169181 Whirlpool Knob
