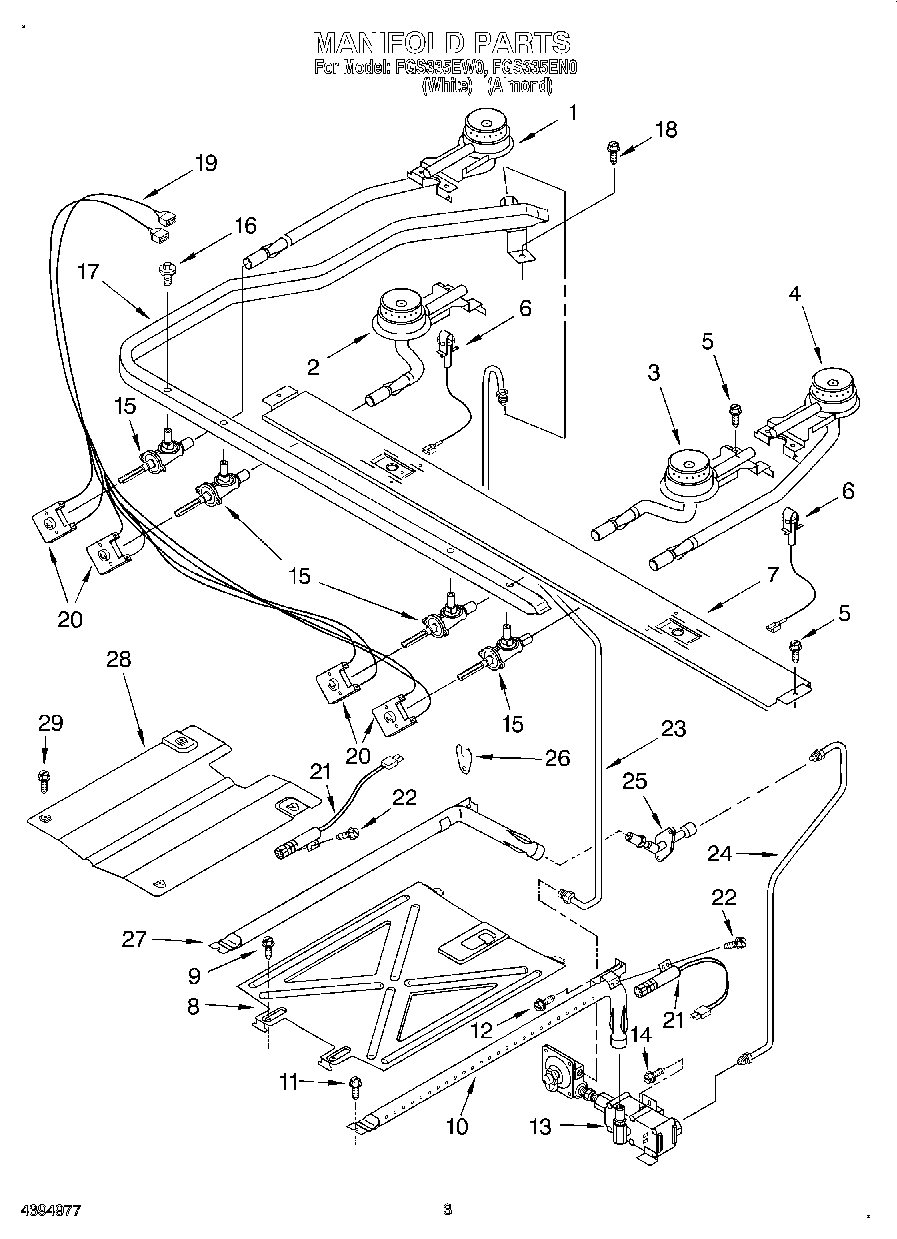

| 1 | Burner (Left Rear) |
| 2 | Burner, Left Front |
| 3 | Burner (Right Front) |
| 4 | Burner (Right Rear) |
| 5 | W10491985 Whirlpool Screw |
| 6 | Igniter, Surface (Right Hand) |
| 6 | Ignitor, Surface (Left) |
| 7 | Support, Burner |
| 8 | Spreader, Flame |
| 10 | Burner, Oven |
| 13 | Valve, Gas Combo |
| 15 | Valve, Burner (4) |
| 16 | WP3186217 Whirlpool Screw |
| 17 | Pipe, Manifold |
| 19 | Harness, Igniter (Incl. Switches) |
| 20 | Switch, Igniter (4) |
| 21 | Igniter, Bake/Broil |
| 22 | W11684507 Whirlpool Screw |
| 23 | Tubing (Manifold to Regulator) |
| 24 | Tubing (Valve To Broiler Fitting) |
| 25 | Fitting, Broiler |
| 26 | Cover, Igniter |
| 27 | Burner, Broiler |
| 27 | 3196265 Whirlpool Oven Screw |
| 28 | W10137062 Whirlpool Burner Baffle |
| 29 | SCREW |
