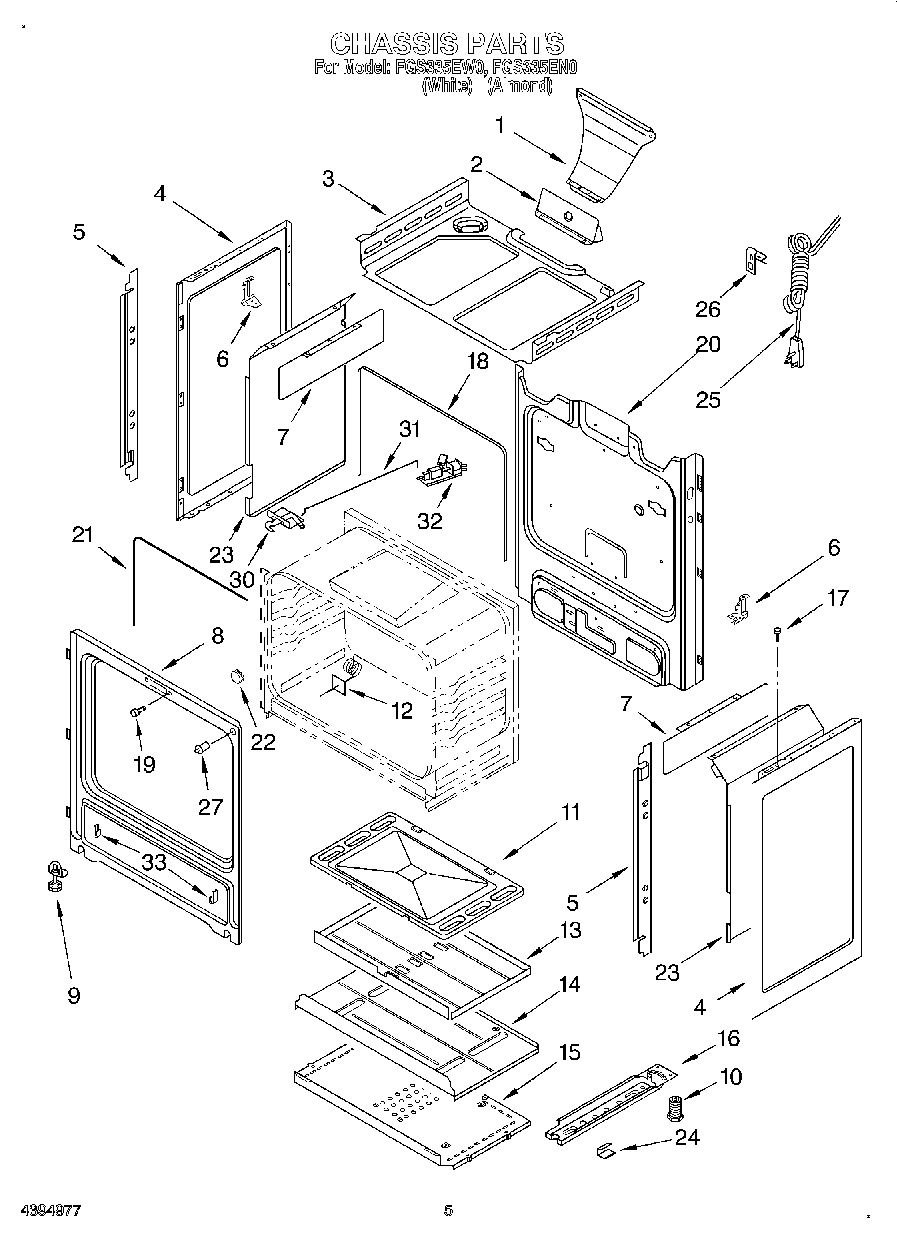

FGS335EN0 04 – CHASSIS

Products

Position	Product
1	W11457094 Whirlpool Oven Flue
1	WP3196557 Whirlpool Screw
2	WP8272747 Whirlpool Heat Shield
3	Burner Box
4	3196166 Whirlpool Screw
4	Screw (Almond)
4	Panel, Side (2) (White)
4	Panel, Side (2) (Almond)
5	Shield, Heat (2)
6	Brkt, Manifold Mtg (Right Hand)
6	Brkt, Manifold Mtg (Left Hand)
7	Shield, Heat (2)
8	Frame, Front
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
11	Screw
12	Sensor, Heat
13	SCREW
13	8053967 Whirlpool Oven Heat Baffle
14	WP7101P246-60 Whirlpool Screw
14	8053969 Whirlpool Heat Shield
15	8053968 Whirlpool Oven Heat Shield
16	WPW10306546 Whirlpool Base Rail
17	238614 Whirlpool Bumper Hinge
18	Seal, Oven Flange
19	W10877054 Whirlpool Spacer Assembly
20	Back, Main
21	W11542153 Whirlpool Door Gasket
22	Button, Plug
23	Retainer, Insul. (Left Hand)
23	Retainer, Insul. (Right Hand)
24	Clip, Panel (6)
25	WP9757891 Whirlpool Power Cord
26	549193 Whirlpool Refrigerator Power Clamp
26	W11244557 Whirlpool Screw
27	WP3196262 Whirlpool Light Switch
30	WP9761013 Whirlpool Door Latch
30	WP3400832 Whirlpool Screw
31	Rod, Latch
32	W10491985 Whirlpool Screw
32	Solenoid, Latch
33	WPW10208653 Whirlpool Insulation
33	WP3196175 Whirlpool Screw
33	W11688737 Whirlpool Insulation
33	WP3195546 Whirlpool Drawer Glide
