FGS335EQ0 02 – CONTROL PANEL

FGS335EQ0 02 – CONTROL PANEL

Written by

in

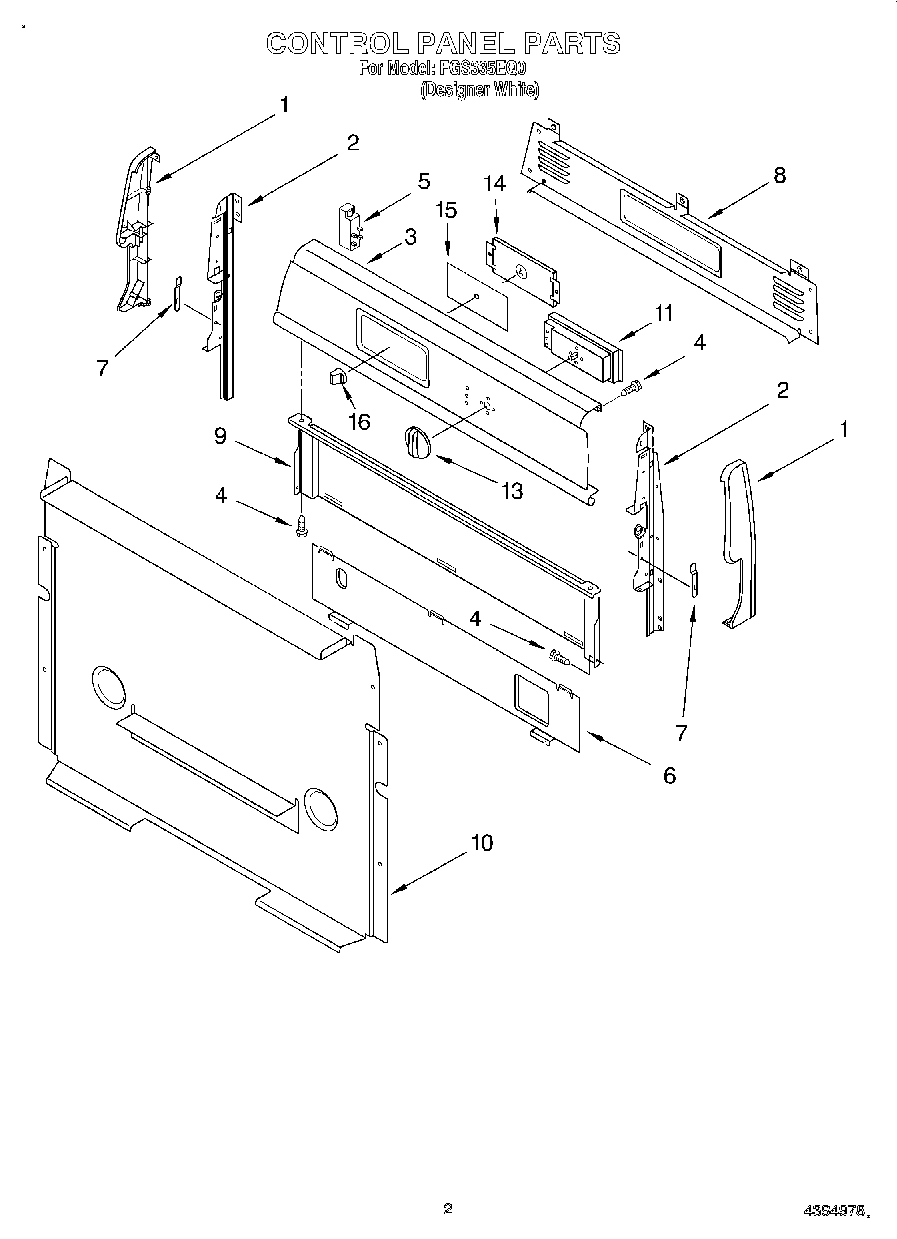

FGS335EQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Right Hand)
1Endcap (Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
5Module, Spark
5WPY706189 Whirlpool Stove Screw
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
9Screw
10Cover, Lower
113196172 Whirlpool Oven Screw
11Control, Oven
13Knob, Thermostat
14Timer, Control (Designer White Mdl)
14SCREW
15Glass, Timer
16WP3169181 Whirlpool Knob
