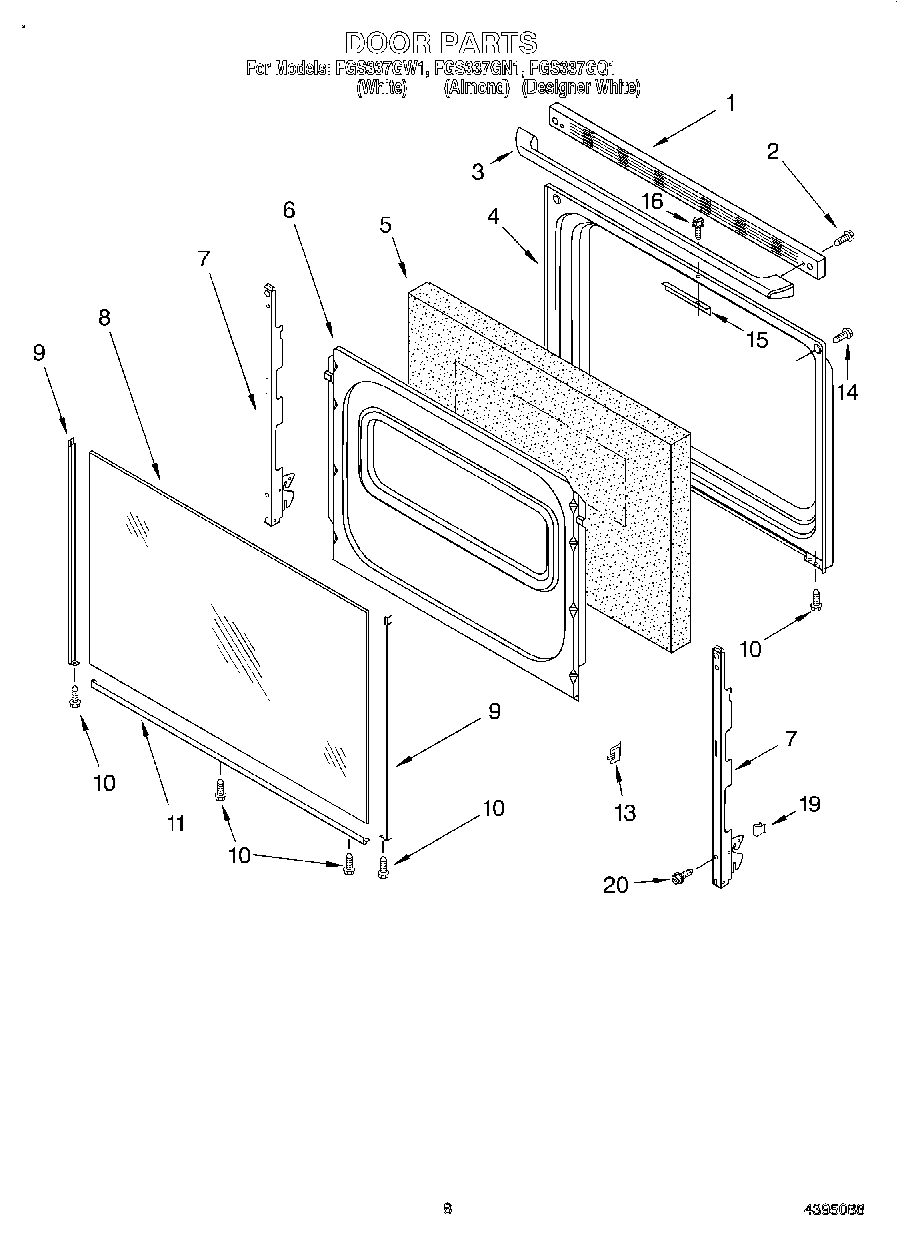

FGS337GQ1 06 – DOOR, LIT/OPTIONAL

FGS337GQ1 06 – DOOR, LIT/OPTIONAL

Written by

in

FGS337GQ1 06 – DOOR, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Tech Sheet)
	814381 Whirlpool Pin
	WPL 8053527
	3400964 Whirlpool Oven Clip
	3196896 Whirlpool Clip
	Literature (Installation, Instructions (Template))
	16515 Whirlpool Clip
	WPL LIT8053431
	WPL LIT8053366
	WPL 8053909
	Safer Cooking Tips
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	W10202219 Whirlpool Door Handle Assembly
4	Liner, Door
5	Insulation, Door
6	W11699790 Whirlpool Retainer
7	Hinge, Door (2)
8	Glass, Door (Black)
8	Glass, Door (White)
10	W10491985 Whirlpool Screw
11	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
11	8184858 Whirlpool Door Trim
13	Clip, Glass (4)
14	WP179051 Whirlpool Screw
15	Bracket, Latch
16	WP3400832 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	18 Ga. 80~c Rating (Red)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	72113 Whirlpool Touch-Up Paint
20	Wire (14 Ga. 200 c Brown)
20	1
20	8212471 Whirlpool Oven Paint
20	Grease
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	WPL 72112
20	Platinum (Uncut)
20	Enamal, Toast (1 Qt. Uncut)
20	Paint, Spray (13 Oz.) (Platinum)
20	Toast
20	Golden Harvest (Uncut)
20	Golden Harvest
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	350942 Whirlpool Spray Paint
20	511873 Whirlpool Refrigerator Paint
20	WPL 799832
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	Paint, Spray 13 Oz. (Avocado)
20	paint, spray 13 oz. (coffee)
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	285006 Whirlpool Spray
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	WP3196175 Whirlpool Screw
20	FOIL, ALUMINUM OVEN (18“ X 25 )
20	WPW10208653 Whirlpool Insulation
20	350930 Whirlpool White Spray Paint
