FGS337GW0 02 – CONTROL PANEL

FGS337GW0 02 – CONTROL PANEL

Written by

in

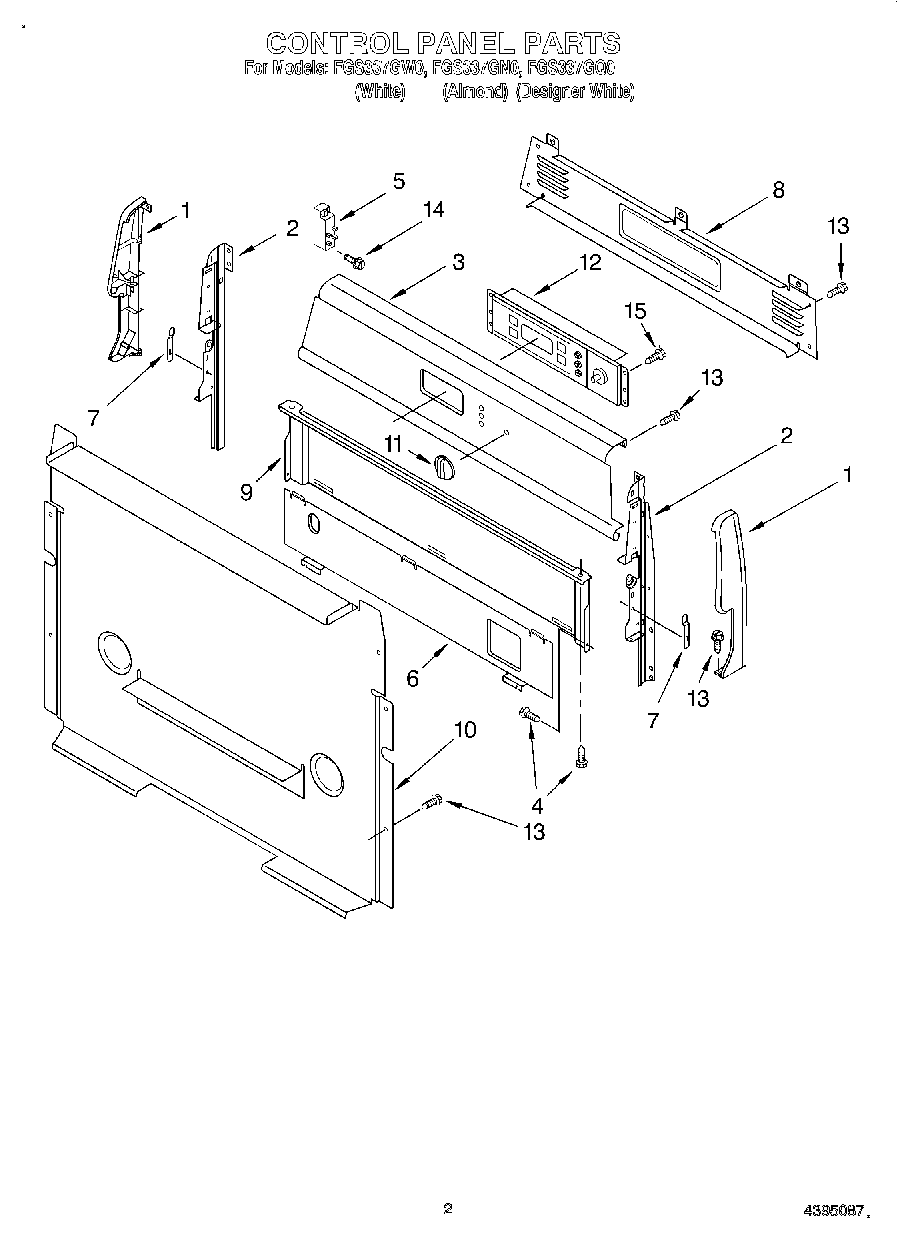

FGS337GW0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Left Hand)
1Endcap (Right Hand)
1Endcap (Left Hand)
1Endcap (Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4Screw
5WP8053421 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11Knob-150 Control (Black)
11Knob-150 Control (White)
12Control, Range (White)
12Control, Oven (Black)
13SCREW
14WPY706189 Whirlpool Stove Screw
15WP3196175 Whirlpool Screw
