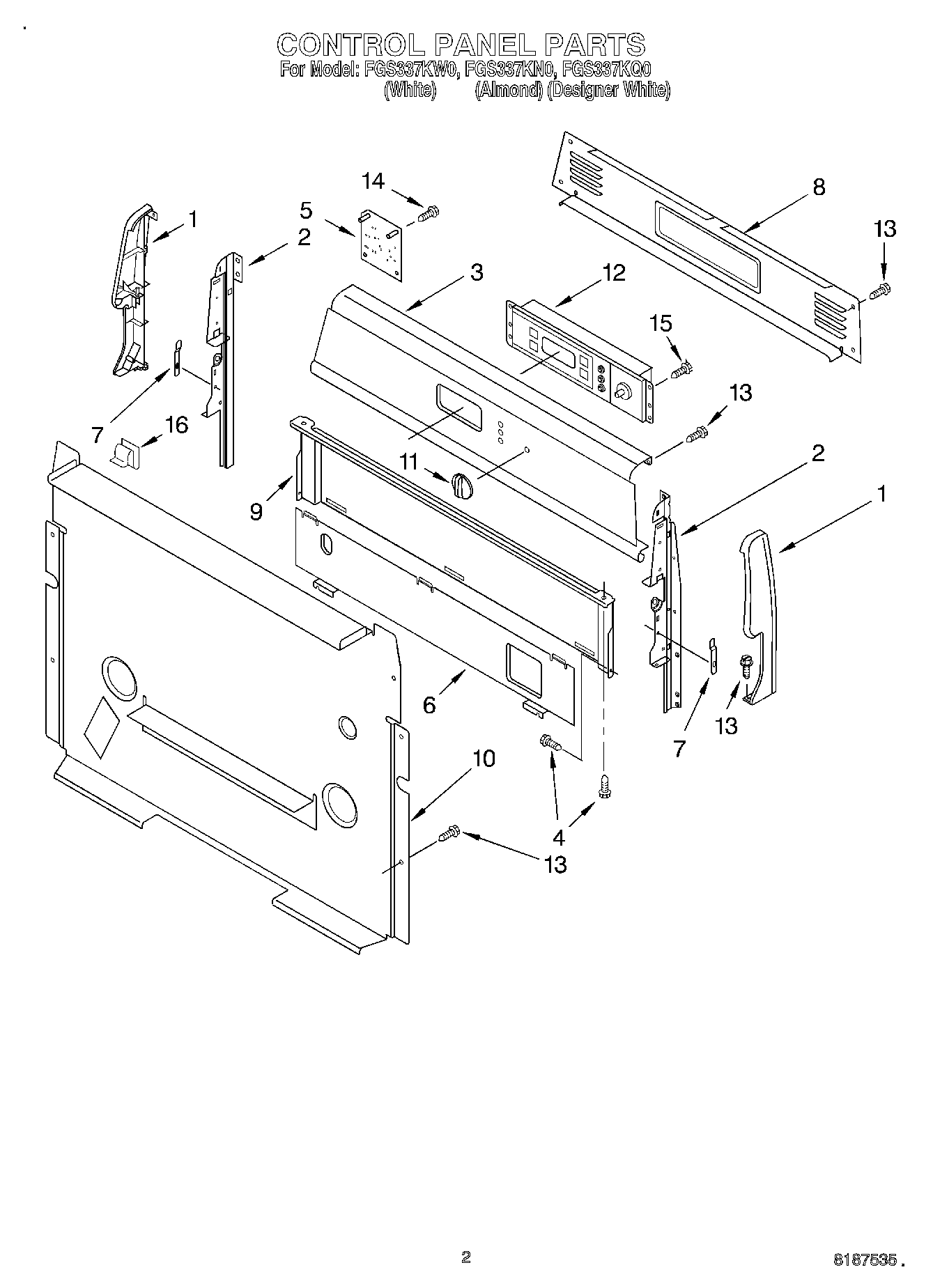

FGS337KN0 02 – CONTROL PANEL

FGS337KN0 02 – CONTROL PANEL

Written by

in

FGS337KN0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Left Hand)
1Endcap (Right Hand)
1Endcap (Right Hand)
1Endcap (Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Black)
3Panel, Backguard (White)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11Knob-150 Control (White)
11Knob-150 Control (Black)
12Control, Range (White)
12Control, Oven (Black)
13SCREW
14WP3196557 Whirlpool Screw
15WP3196175 Whirlpool Screw
16WP8273564 Whirlpool Clip
