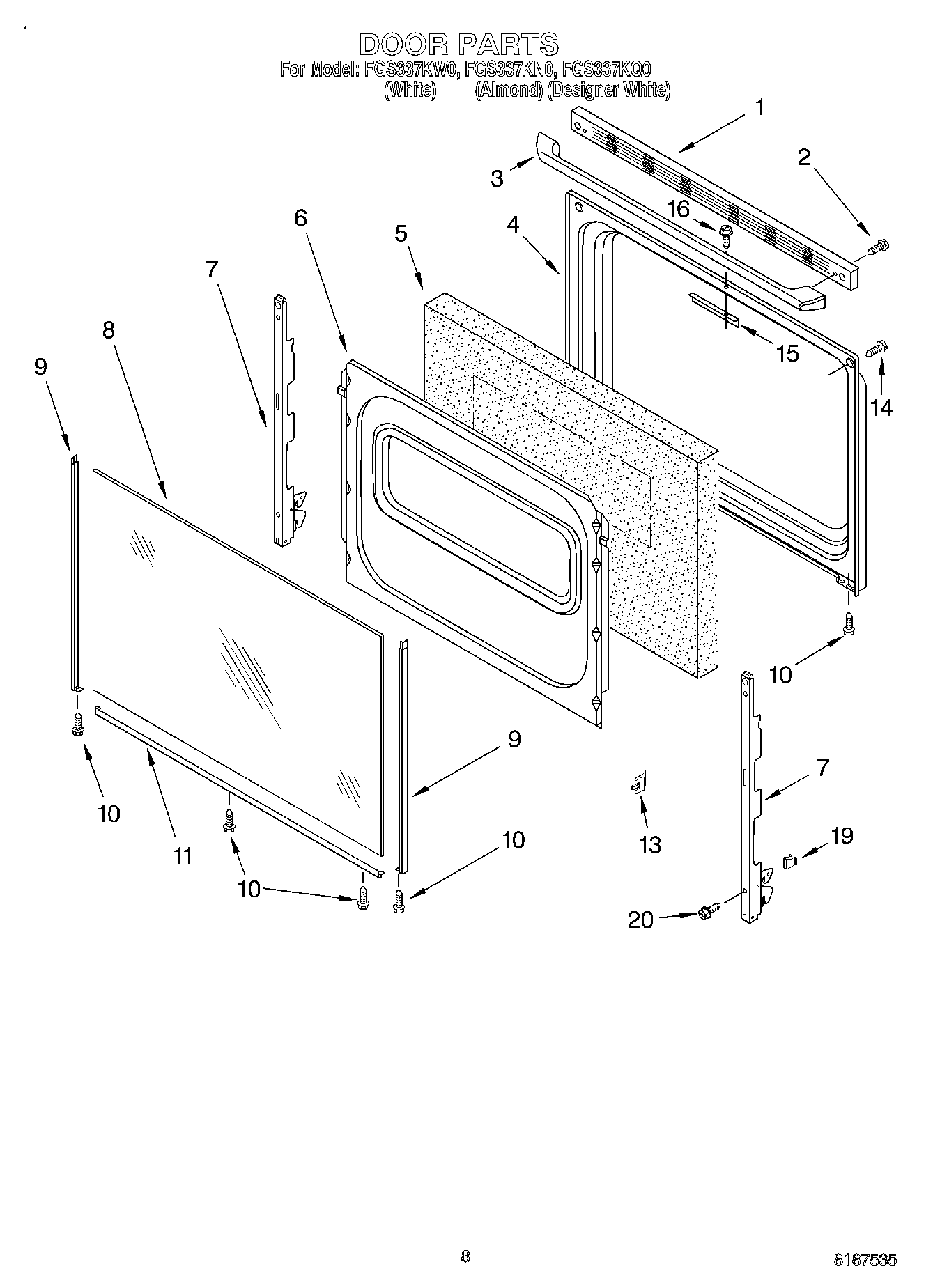

FGS337KN0 06 – DOOR, OPTIONAL

FGS337KN0 06 – DOOR, OPTIONAL

Written by

in

FGS337KN0 06 – DOOR, OPTIONAL

Products

Position	Product
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	W10202219 Whirlpool Door Handle Assembly
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
6	W11699790 Whirlpool Retainer
7	Hinge, Door (2)
8	Glass, Door (Black)
8	Glass, Door (White)
10	W10491985 Whirlpool Screw
11	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
11	8184858 Whirlpool Door Trim
13	Clip, Glass (4)
14	WP179051 Whirlpool Screw
15	Bracket, Latch
16	WP3400832 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	Grease
20	3196696 Whirlpool Clip
20	1
20	8212471 Whirlpool Oven Paint
20	WPL 8273895
20	WPL 8053527
20	WPL 8273966
20	WPL 8273967
20	WPL 8274195
20	3196896 Whirlpool Clip
20	Wire (14 Ga. 200 c Brown)
20	18 Ga. 80~c Rating (Red)
20	WP3196175 Whirlpool Screw
20	FOIL, ALUMINUM OVEN (18“ X 25 )
20	WPW10208653 Whirlpool Insulation
20	WPL 799832
20	511873 Whirlpool Refrigerator Paint
20	350942 Whirlpool Spray Paint
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	Wire, 25` Roll (Black 14 Ga.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25“ Roll (White 14 GA.)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	16515 Whirlpool Clip
20	3400964 Whirlpool Oven Clip
20	814381 Whirlpool Pin
20	285006 Whirlpool Spray
20	350930 Whirlpool White Spray Paint
