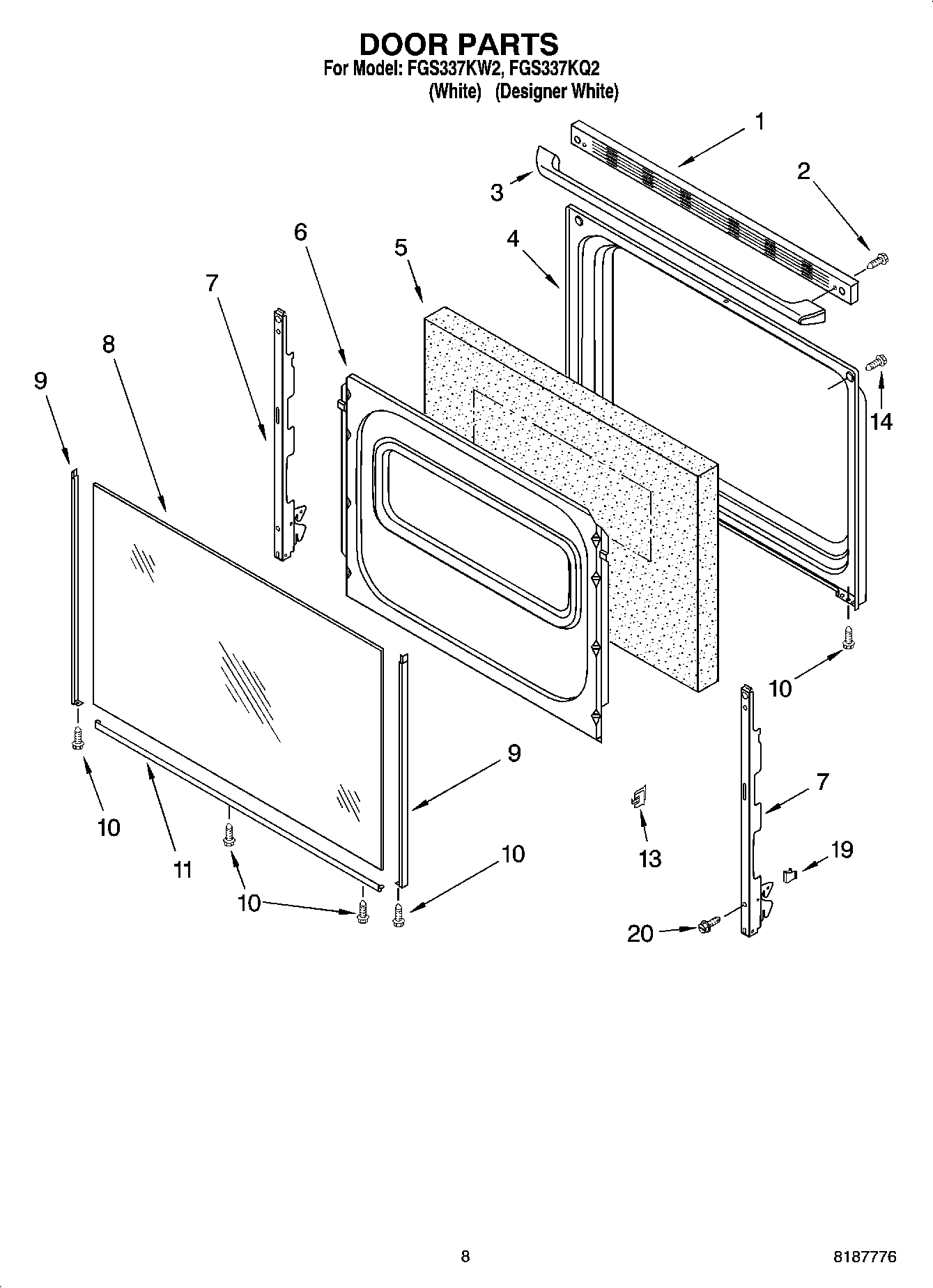

FGS337KW2 06 – DOOR PARTS, MISCELLANEOUS PARTS

FGS337KW2 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

FGS337KW2 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI57826A8
Grease
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WPL 8316781
3196896 Whirlpool Clip
WPL ARI57825A4
WPL ARI57824A1
WPL ARI57823A2
WPL ARI57822A9
WPL ARI57821A8
WPL ARI57820A3
WPL 8523423
WPL ARI57827A2
WPL 8524207
8523599 Whirlpool Oven Wire Harness
WPL 8053527
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
Wire, 25` Roll (Red 14 Ga.)
3400964 Whirlpool Oven Clip
Wire, 25“ Roll (White 14 GA.)
814381 Whirlpool Pin
8528351 Whirlpool Clip
285006 Whirlpool Spray
1Trim, Top (Black)
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3W10202219 Whirlpool Door Handle Assembly
3WPW10202217 Whirlpool Door Handle
4Liner, Door
5WPW10278991 Whirlpool Insulation
6W11699790 Whirlpool Retainer
7Hinge, Door (2)
8Glass, Door (Black)
8Glass, Door (White)
9W10761018 Whirlpool Dishwasher Left Door Trim
9WP8523172 Whirlpool Left Door Trim
9WP8523166 Whirlpool Door Trim
9W10761014 Whirlpool Right Door Trim
10W10491985 Whirlpool Screw
11WP8523177 Whirlpool Door Trim Assembly
11WP8523175 Whirlpool Door Trim Assembly
13Clip, Glass (4)
14WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
