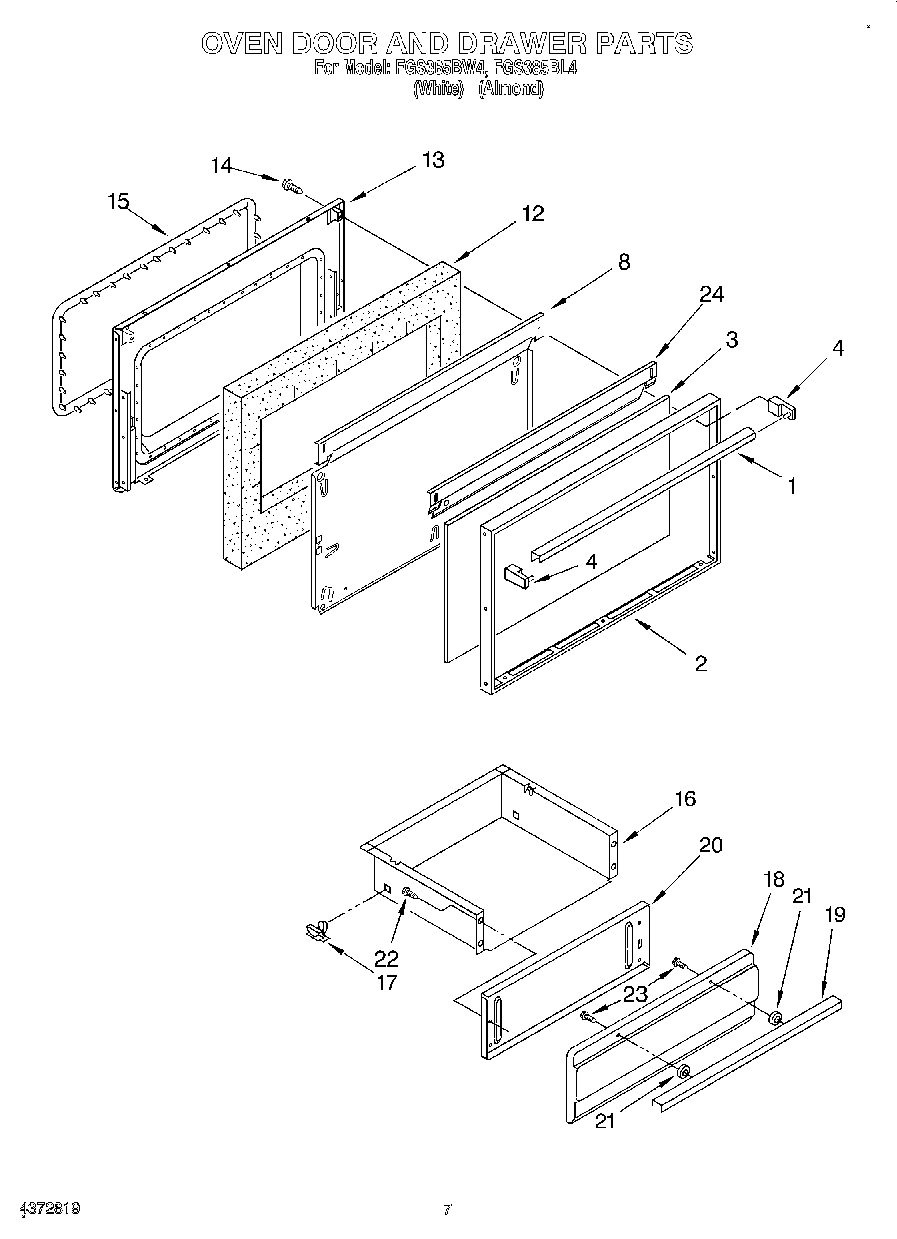

FGS385BL4 06 – OVEN DOOR AND DRAWER

FGS385BL4 06 – OVEN DOOR AND DRAWER

Written by

in

FGS385BL4 06 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Handle, Door
2Trim, Door
3Glass, Door Blk
4Endcap (2)
8Shield, Heat
12Insulation, Door
13Liner, Oven Door
14Screw, Handle
15Seal, Oven Door
16Drawer, Utility
17Guide, Drawer
18Panel, Drawer (Almond)
18Panel, Drawer (White)
19Handle, Utility Drawer
20Shield, Panel
21Spacer, Handle
22Screw, Panel (4)
23Screw, Handle (2)
24Sheild, Door Top
