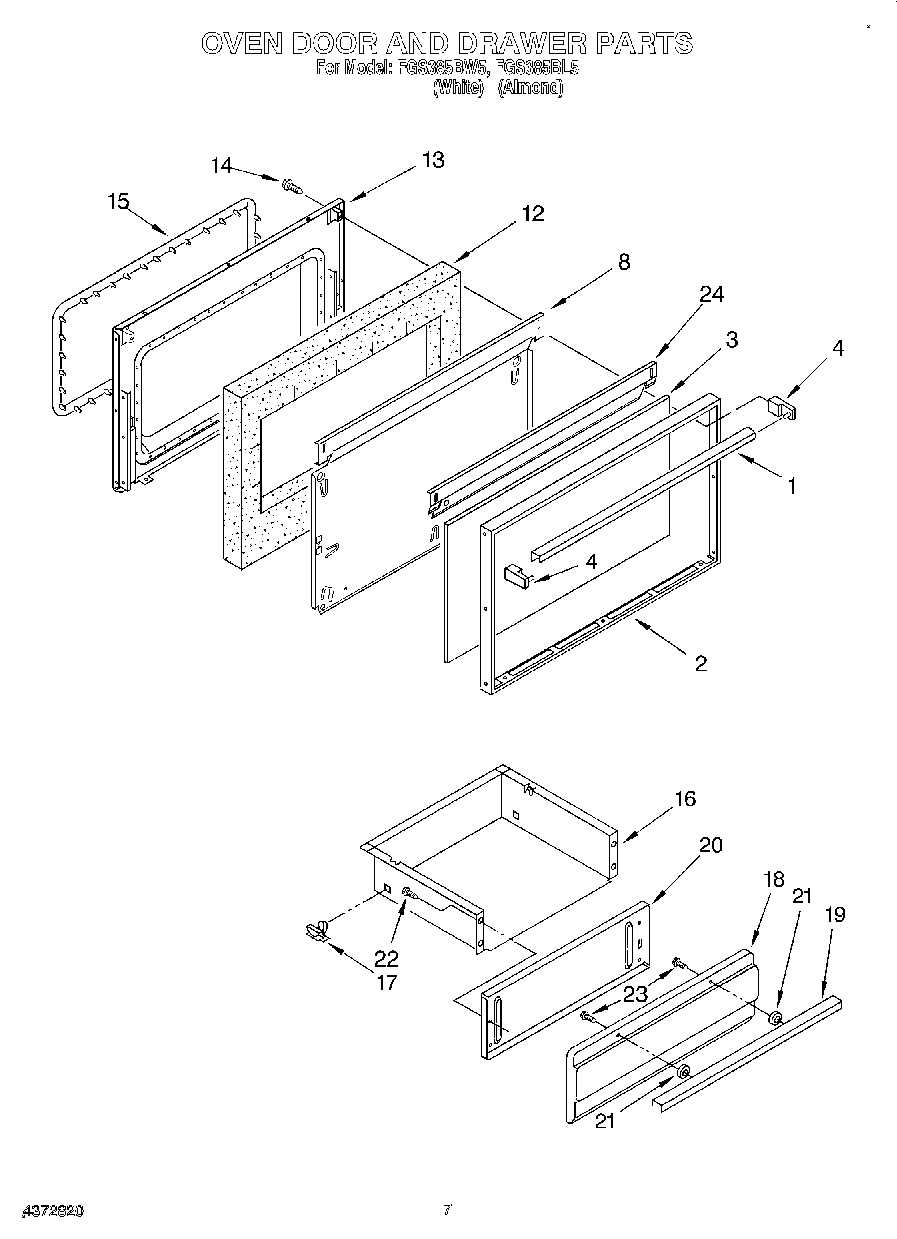

FGS385BL5 06 – OVEN DOOR AND DRAWERadmin2025-04-26T08:40:56+00:00FGS385BL5 06 – OVEN DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Handle, Door |
| 2 | Trim, Door |
| 3 | Glass, Door Blk |
| 4 | Endcap (2) |
| 8 | Shield, Heat |
| 12 | Insulation, Door |
| 13 | Liner, Oven Door |
| 14 | Screw, Handle |
| 15 | Seal, Oven Door |
| 16 | Drawer, Utility |
| 17 | Guide, Drawer |
| 18 | Panel, Drawer (Almond) |
| 18 | Panel, Drawer (White) |
| 19 | Handle, Utility Drawer |
| 20 | Shield, Panel |
| 21 | Spacer, Handle |
| 22 | Screw, Panel (4) |
| 23 | Screw, Handle (2) |
| 24 | Sheild, Door Top |
