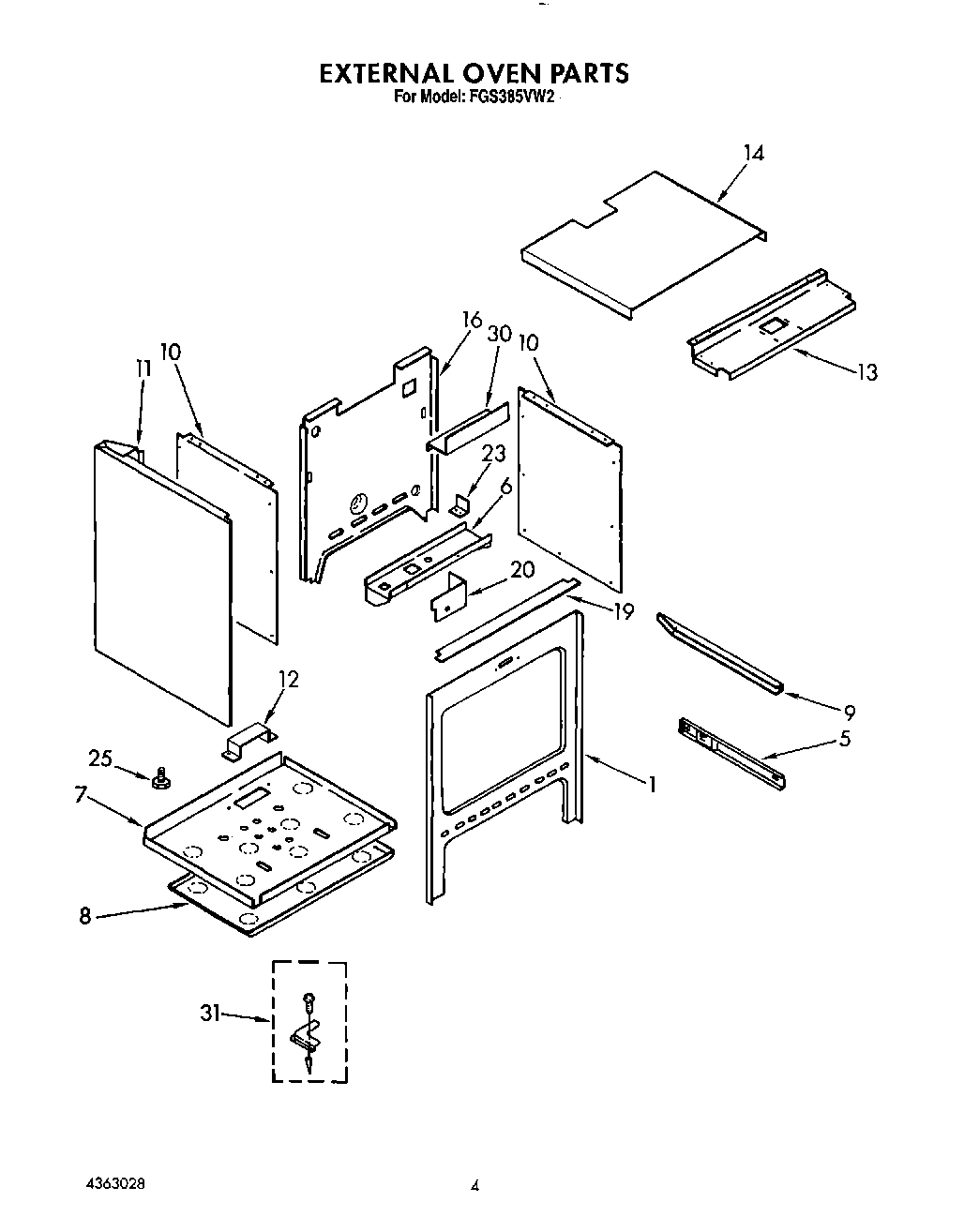

FGS385VL2 03 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front
5	track, storage drawer (left side)
5	track, storage drawer (right side)
5	WP308685 Whirlpool Microwave Screw
6	Nut, 6-32 (6)
6	WP486754 Whirlpool Compactor Screw
6	shelf, gas valve
7	retainer, bottom insulation
8	Heat Shield,
9	Brace, Bottom (L.H.)
9	Brace, Bottom (R.H.)
10	Retainer, Insulation (2)
11	Panel, End (2) (White)
11	Panel, End (2) (Almond)
12	Retainer, Ignitor
13	Retainer, Top Front Insulation
14	Retainer, Top Back
16	Panel, Rear
16	nut, 6-32
16	Bushing, Snap
19	Frame, Filler Front
20	Plate, Cover
23	WP488130 Whirlpool Air Conditioner Nut
23	WP965173 Whirlpool Dishwasher Screw
23	Bracket, Gas Valve (2)
25	leg, leveling (4)
30	cover, electrical
31	Anti Tip Kit
