FGS385VW0 02 – INTERNAL OVEN

FGS385VW0 02 – INTERNAL OVEN

Written by

in

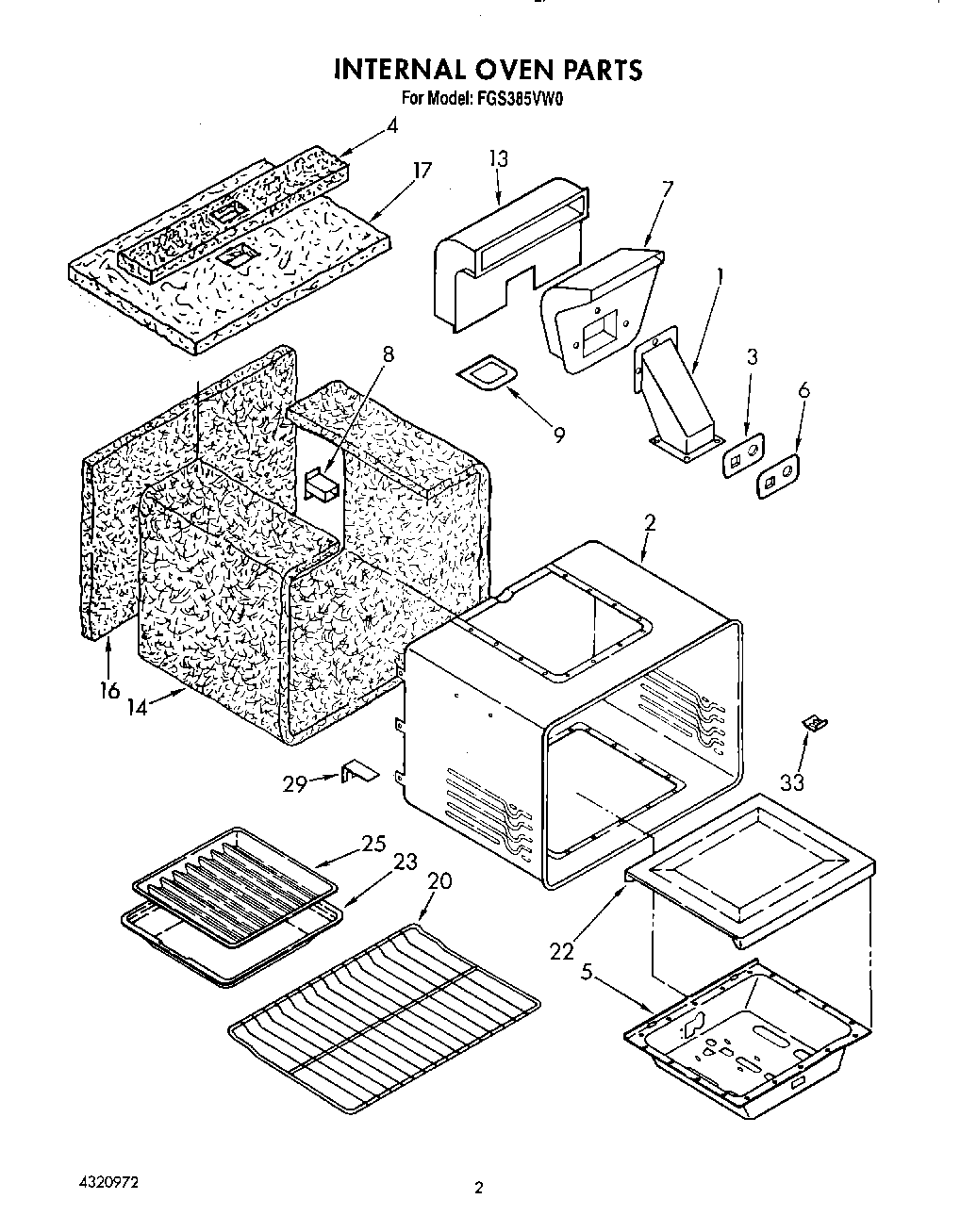

FGS385VW0 02 – INTERNAL OVEN

Products

PositionProduct
1Vent
2Oven 30“ Self-Clean
3Plate, Burner Broil
5Burner, Box, Lower
6Gasket, Plate
7Flue, Inner
8Raceway
9Gasket, Vent
13Flue, Dilution
14WPW10208653 Whirlpool Insulation
20Rack, Oven (2)
22Bottom, Oven
23Pan, Broiler
25Grid, Broiler
29bracket, oven shell
33Cover, Chip
