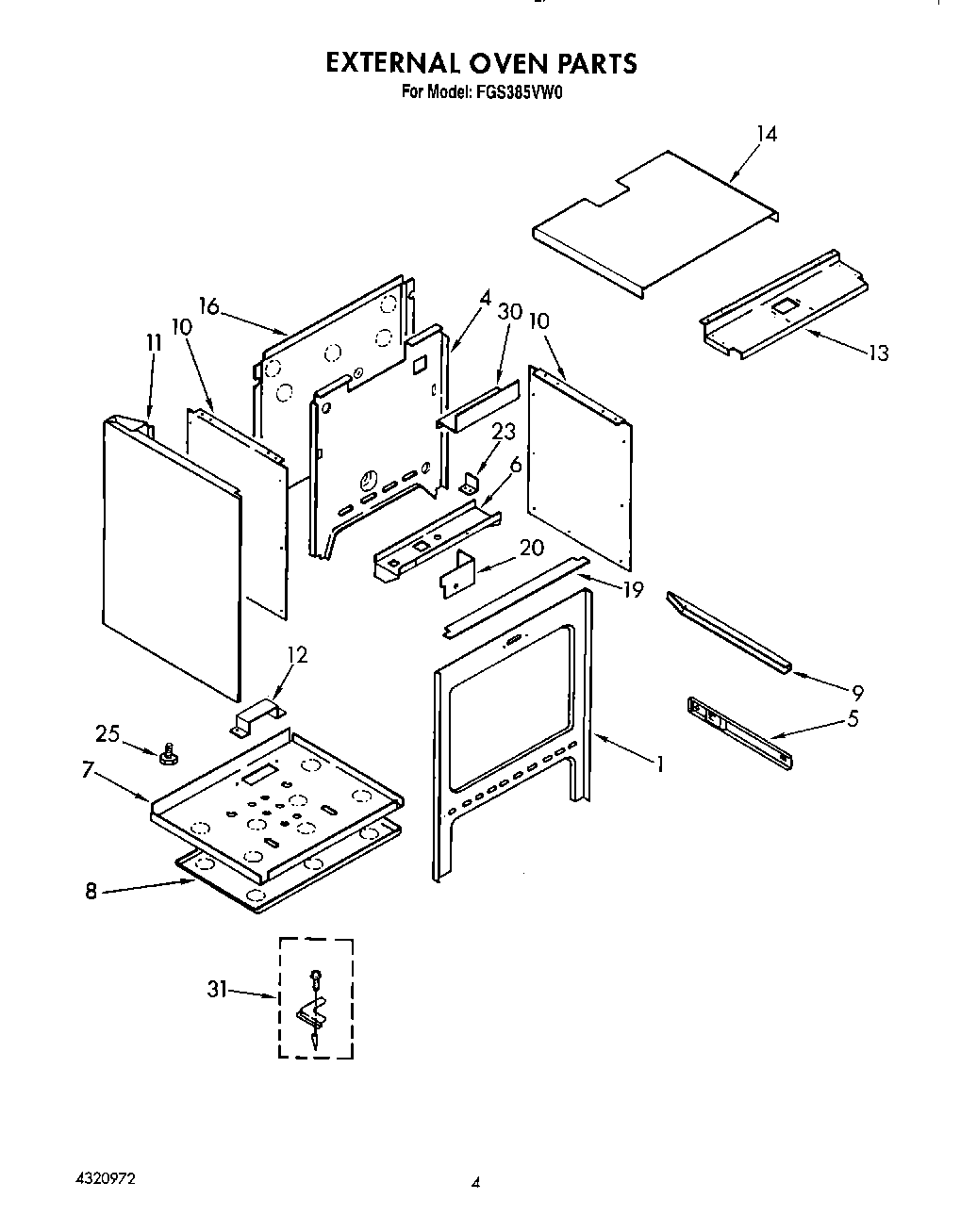

FGS385VW0 03 – EXTERNAL OVEN

Products

Position	Product
1	Liner, Oven Side (2)
4	Retainer, Rear Insulation
5	track, storage drawer (left side)
5	track, storage drawer (right side)
6	shelf, gas valve
6	WP486754 Whirlpool Compactor Screw
6	Nut, 6-32 (6)
7	retainer, bottom insulation
8	Heat Shield,
8	WP308685 Whirlpool Microwave Screw
9	Brace, Bottom (R.H.)
9	brace, bottom (l.h.)
10	Retainer, Insulation (2)
11	98005642 Whirlpool Clip
11	Almond
11	White
11	Black
12	Retainer, Ignitor
13	Retainer, Top Front Insulation
14	Retainer, Top Back
16	bushing, snap
16	nut, 6-32
16	Panel, Rear
19	Filler, Front Frame
20	Plate, Cover
23	WP488130 Whirlpool Air Conditioner Nut
23	Bracket, Gas Valve (2)
23	WP965173 Whirlpool Dishwasher Screw
25	leg, leveling (4)
30	cover, electrical
31	Anti Tip Kit
