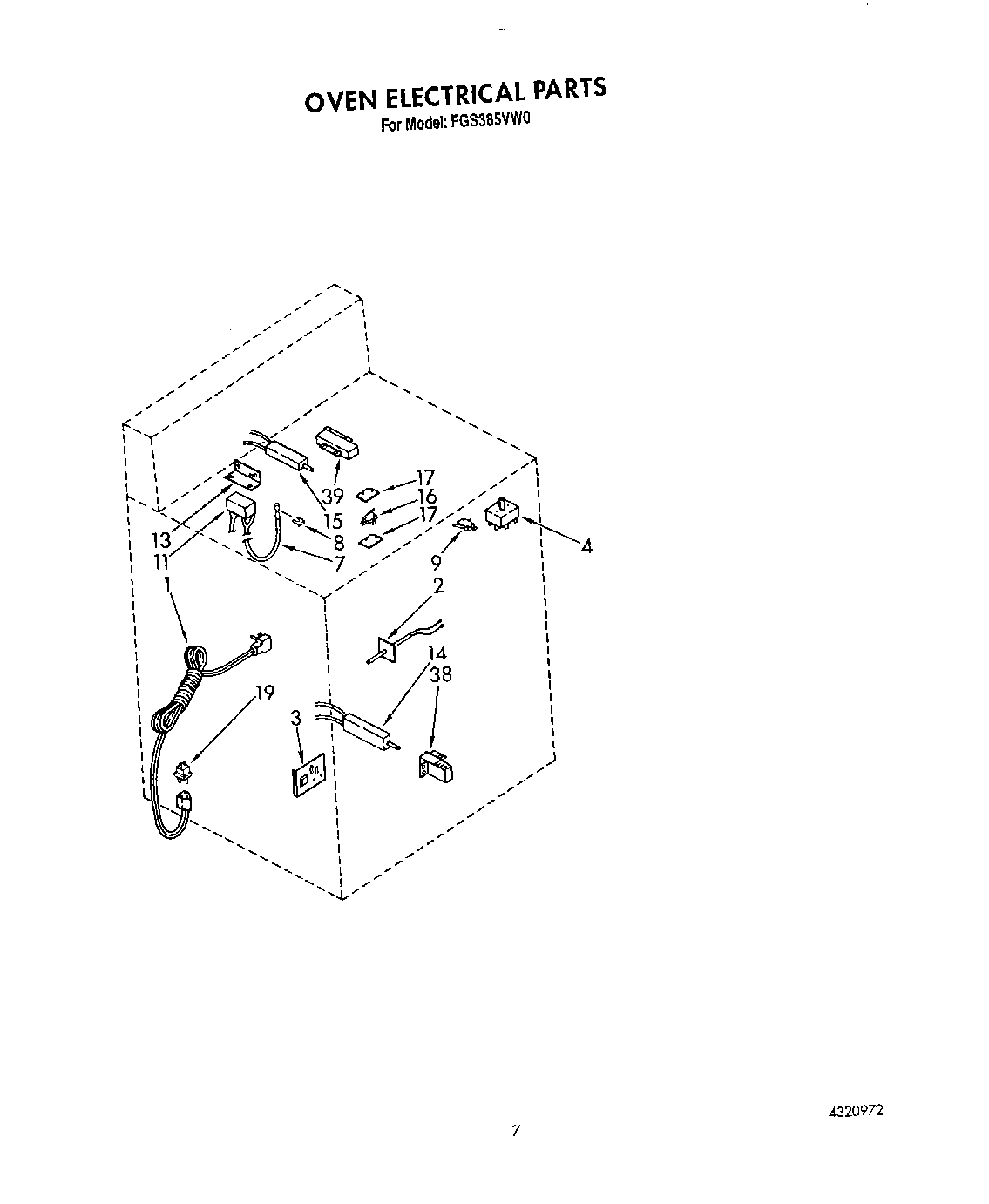

FGS385VW0 05 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
2	Sensor, Oven
2	screw, 6-32 x 1/4 (2)
3	Circuit Board
4	Switch, Selector
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
9	Screw, 4-40 X 5/8 (2)
9	WP4330739 Whirlpool Igniter Switch
9	Nut
11	Spark Module
13	Bracket, Spark Module
14	786324 Whirlpool Flat Igniter
15	814269 Whirlpool Oven Flat Igniter
15	Nut, 6-32 (6)
15	WP486754 Whirlpool Compactor Screw
16	Switch, Oven Door Latch
16	screw, 4-40 x 5/8 (2)
17	Insulator, Switch
19	Plug, Male
38	Bracket, Bake Ignitor
39	Bracket, Broiler Ignitor
