FGS385VW0 07 – BACKGUARD, LIT/OPTIONAL

FGS385VW0 07 – BACKGUARD, LIT/OPTIONAL

Written by

in

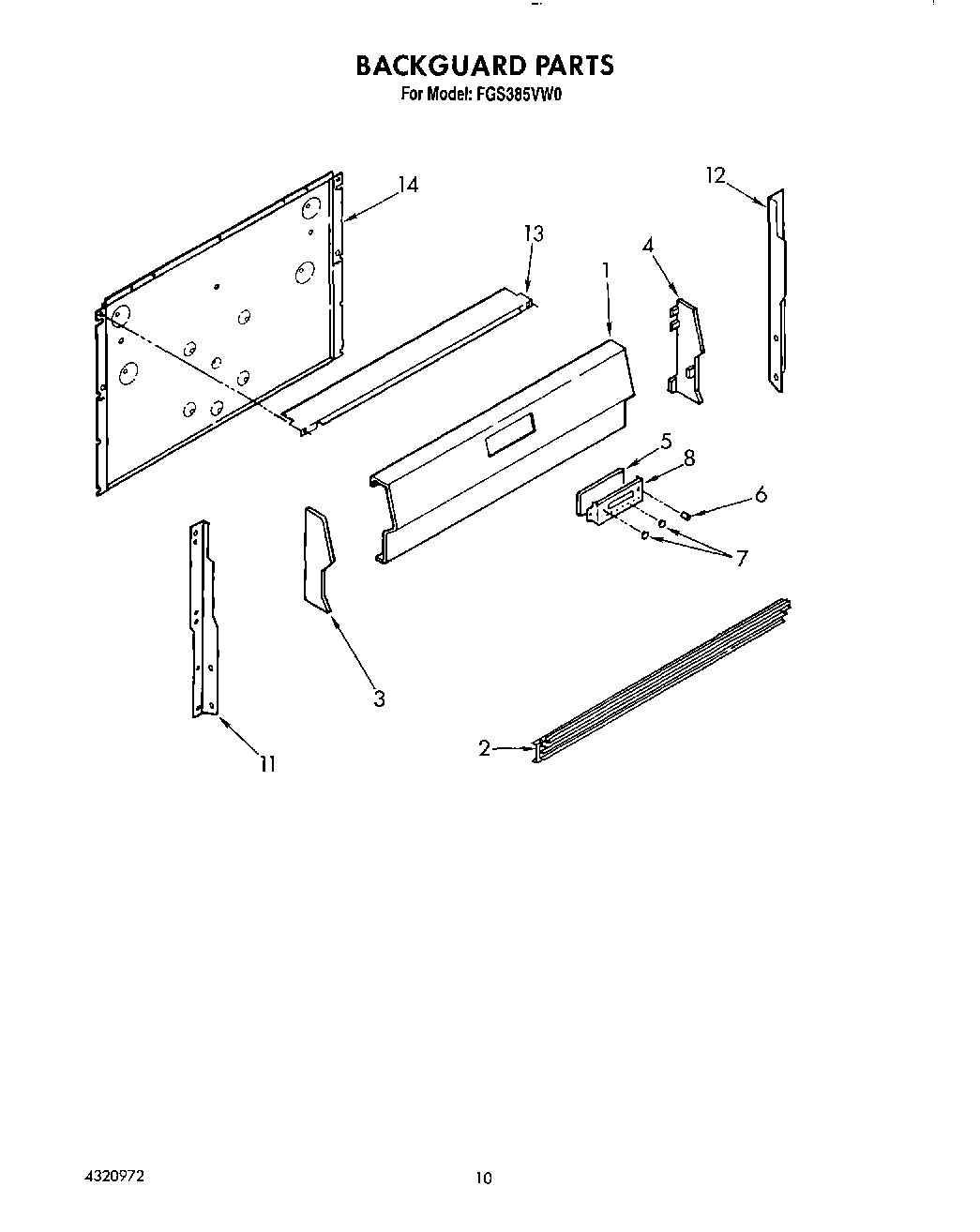

FGS385VW0 07 – BACKGUARD, LIT/OPTIONAL

Products

PositionProduct
Instructions, Installation
Guide, Use & Care
List, Repair Parts
1Panel, Backguard
2Trim
3End Cap L.H.
4End Cap R.H.
5ERC Control
6Knob, ERC
7Button, Set (8)
8Lens
11Support L.H.
12Support, R.H.
13Shield, Heat
14insulation, backguard
14Panel, Rear
