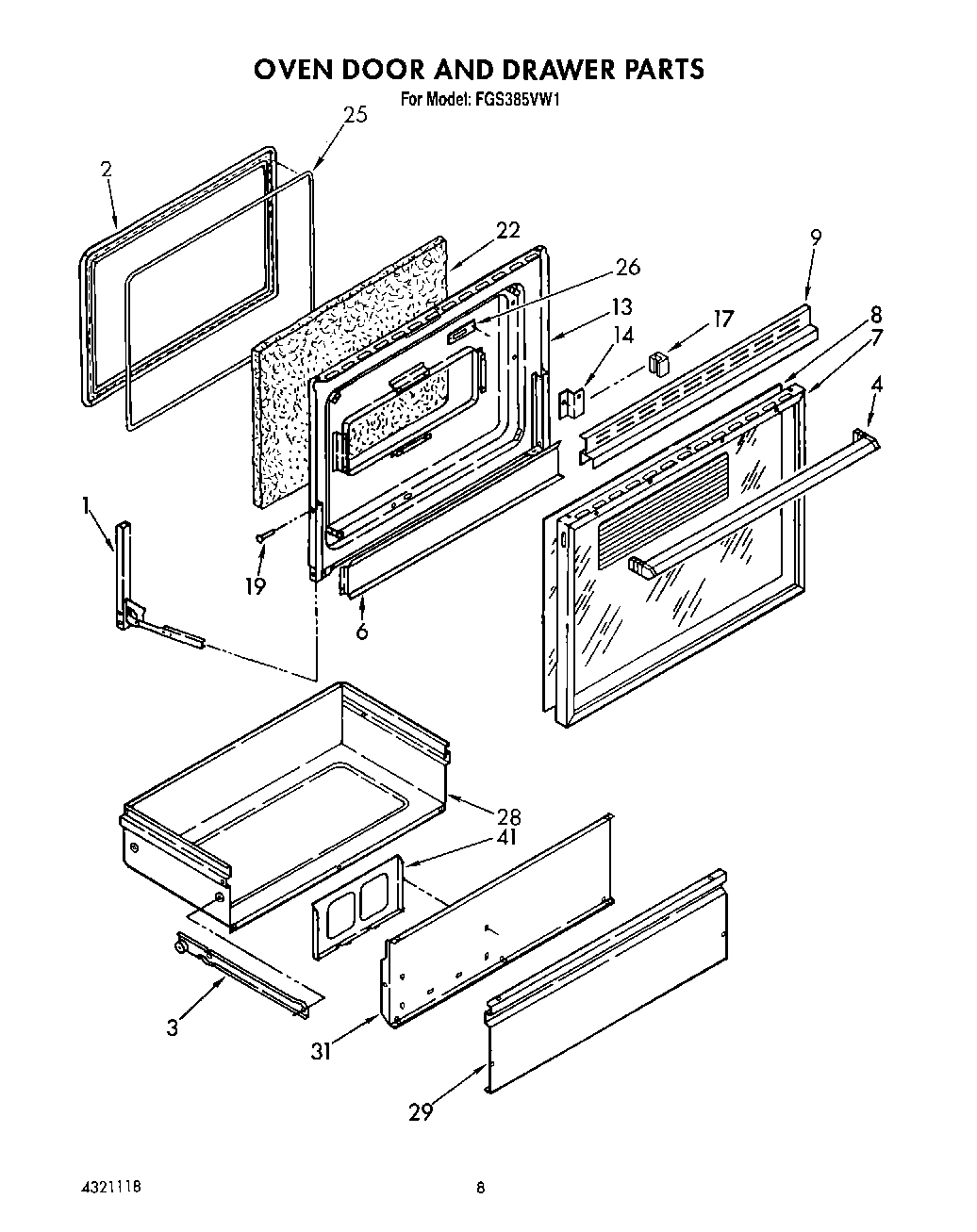

FGS385VW1 06 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Hinge, Oven Door (R.H.)
1Hinge, Oven Door (L.H.)
2WP965173 Whirlpool Dishwasher Screw
2WP488130 Whirlpool Air Conditioner Nut
2Liner, Oven Door
2Screw, 8-32 X 5/8 (4)
3Runner (R.H.)
3runner (l.h.)
4Handle
6Baffle, Heat
7Frame
8Panel, Black Glass
9Trim, Top Door
13Retainer, Insulation
14bracket, glass support (4)
17Bumper, Window (2)
19Pin, Hinge (2)
22Insulation, Door
25gasket assembly
26Plate, Latch
28Wrapper, Storage Drawer
29Panel, Drawer (Black)
29Panel, Drawer (Almond)
29Panel, Drawer (White)
31Liner, Door Panel
41Rack, Literature
