FGS385VW2 02 – INTERNAL OVEN

FGS385VW2 02 – INTERNAL OVEN

Written by

in

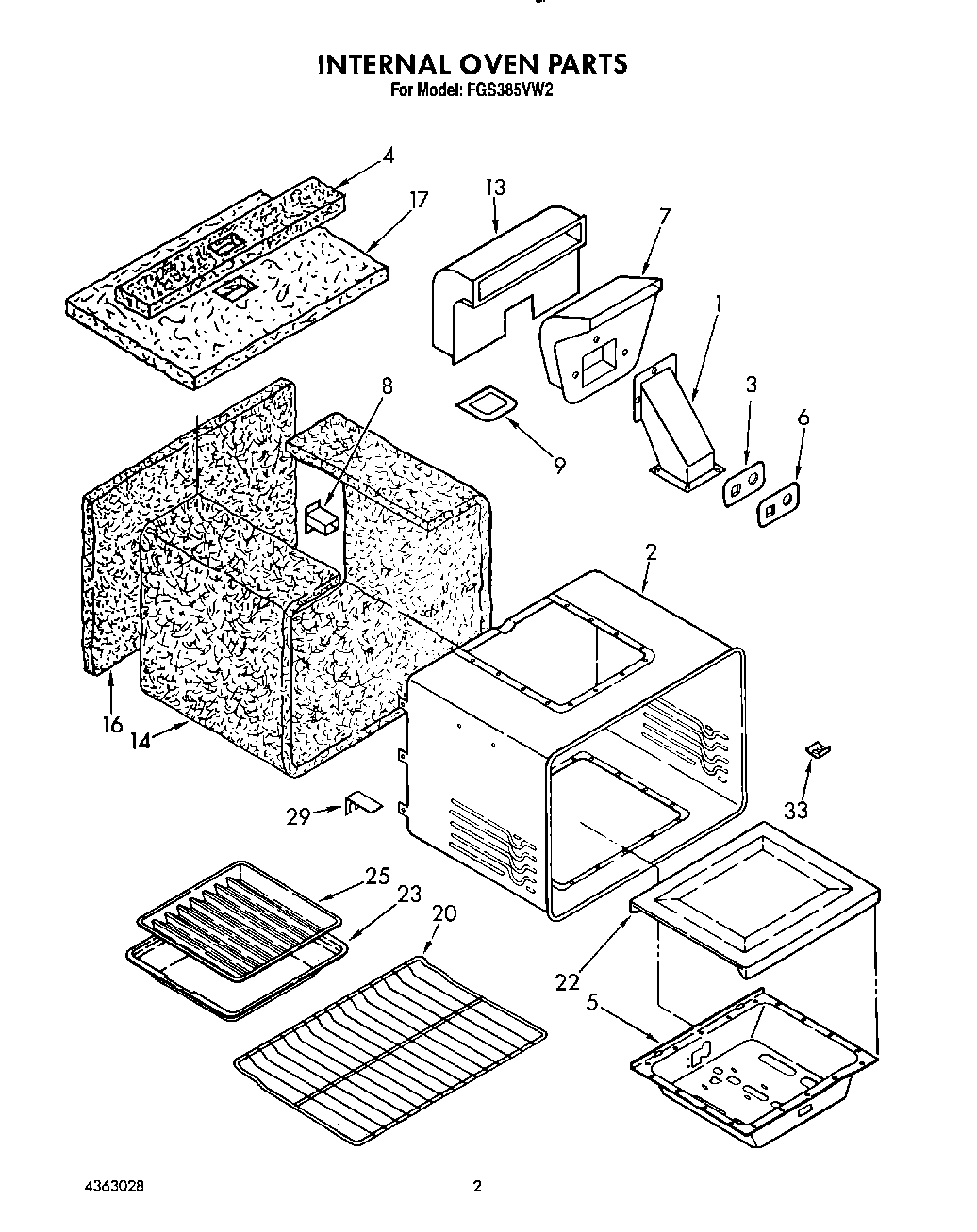

FGS385VW2 02 – INTERNAL OVEN

Products

Position	Product
1	Vent
2	Oven 30“ Self-Clean
3	Plate, Burner Broil
5	Burner, Box, Lower
6	Gasket, Plate
7	Flue, Inner
8	Raceway
9	Gasket, Vent
13	Flue, Dilution
14	WPW10208653 Whirlpool Insulation
20	Rack, Oven (2)
22	Bottom, Oven
23	Pan, Broiler
25	Grid, Broiler
29	bracket, oven shell
33	Cover, Chip
