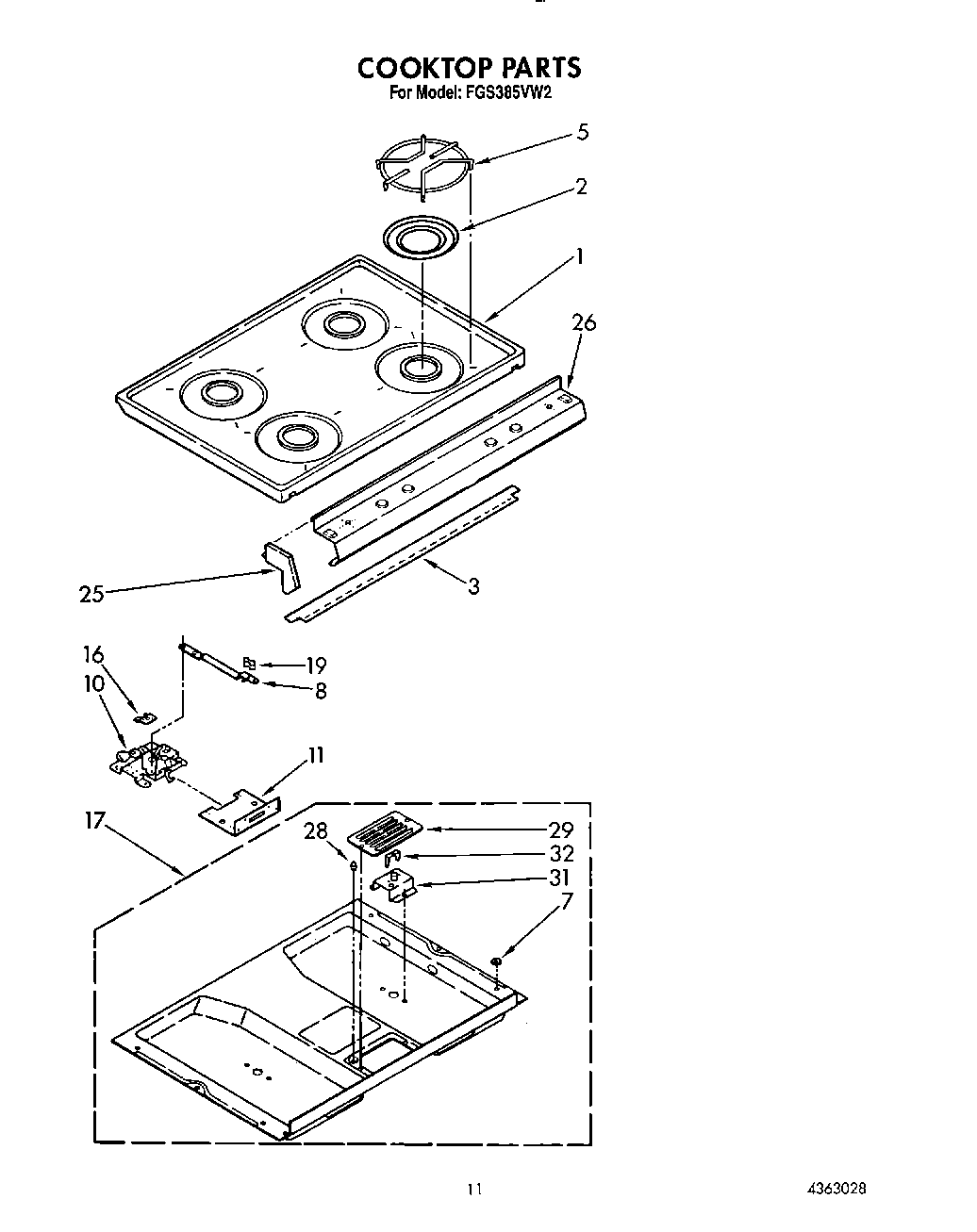

FGS385VW2 08 – COOKTOP

Products

Position	Product
1	Top, Main (White)
1	Top, Main (Almond)
2	Bowl, Chrome
3	Panel, Filler
5	Grate, Top Burner (4)
7	Spacer, Nylon (4)
8	Handle, Latch
10	WP965173 Whirlpool Dishwasher Screw
10	Latch Assembly
11	Bracket, Latch Mounting
16	screw, 4-40 (2)
16	Bracket, Switch
17	Burner Box
19	Knob, Latch Handle
25	End Cap (Left Side)
25	End Cap (Right Side)
26	Panel, Control
28	LP Gas No. 58
29	Panel, Rear
31	Bracket, Top (2)
32	Bracket, Electrode (2)
